# Eigenvalues and Eigenmodes of L-Shaped Membrane

This example shows how to calculate eigenvalues and eigenvectors. The eigenvalue problem is $-\Delta u=\lambda u$. This example computes all eigenmodes with eigenvalues smaller than 100.

Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file `lshapeg`.

```model = createpde(); geometryFromEdges(model,@lshapeg);```

Set zero Dirichlet boundary conditions on all edges.

```applyBoundaryCondition(model,'dirichlet', ... 'Edge',1:model.Geometry.NumEdges, ... 'u',0);```

Specify the coefficients for the problem: `d` = 1 and `c` = 1. All other coefficients are equal to zero.

`specifyCoefficients(model,'m',0,'d',1,'c',1,'a',0,'f',0);`

Set the interval `[0 100]` as the region for the eigenvalues in the solution.

`r = [0 100];`

Create a mesh and solve the problem.

```generateMesh(model,'Hmax',0.05); results = solvepdeeig(model,r);```
``` Basis= 10, Time= 0.11, New conv eig= 0 Basis= 11, Time= 0.18, New conv eig= 0 Basis= 12, Time= 0.21, New conv eig= 0 Basis= 13, Time= 0.23, New conv eig= 0 Basis= 14, Time= 0.23, New conv eig= 0 Basis= 15, Time= 0.24, New conv eig= 0 Basis= 16, Time= 0.25, New conv eig= 0 Basis= 17, Time= 0.25, New conv eig= 0 Basis= 18, Time= 0.25, New conv eig= 1 Basis= 19, Time= 0.26, New conv eig= 1 Basis= 20, Time= 0.26, New conv eig= 1 Basis= 21, Time= 0.27, New conv eig= 1 Basis= 22, Time= 0.28, New conv eig= 3 Basis= 23, Time= 0.28, New conv eig= 3 Basis= 24, Time= 0.29, New conv eig= 4 Basis= 25, Time= 0.29, New conv eig= 5 Basis= 26, Time= 0.30, New conv eig= 6 Basis= 27, Time= 0.31, New conv eig= 6 Basis= 28, Time= 0.31, New conv eig= 6 Basis= 29, Time= 0.32, New conv eig= 7 Basis= 30, Time= 0.33, New conv eig= 7 Basis= 31, Time= 0.85, New conv eig= 10 Basis= 32, Time= 0.95, New conv eig= 10 Basis= 33, Time= 1.01, New conv eig= 11 Basis= 34, Time= 1.08, New conv eig= 11 Basis= 35, Time= 1.12, New conv eig= 14 Basis= 36, Time= 1.38, New conv eig= 14 Basis= 37, Time= 1.48, New conv eig= 14 Basis= 38, Time= 1.57, New conv eig= 14 Basis= 39, Time= 1.64, New conv eig= 14 Basis= 40, Time= 1.88, New conv eig= 14 Basis= 41, Time= 1.93, New conv eig= 15 Basis= 42, Time= 1.96, New conv eig= 15 Basis= 43, Time= 1.99, New conv eig= 15 Basis= 44, Time= 2.01, New conv eig= 16 Basis= 45, Time= 2.04, New conv eig= 16 Basis= 46, Time= 2.05, New conv eig= 16 Basis= 47, Time= 2.08, New conv eig= 16 Basis= 48, Time= 2.08, New conv eig= 17 Basis= 49, Time= 2.12, New conv eig= 18 Basis= 50, Time= 2.35, New conv eig= 18 Basis= 51, Time= 2.45, New conv eig= 18 Basis= 52, Time= 2.47, New conv eig= 18 Basis= 53, Time= 2.50, New conv eig= 18 Basis= 54, Time= 2.51, New conv eig= 21 End of sweep: Basis= 54, Time= 2.52, New conv eig= 21 Basis= 31, Time= 2.58, New conv eig= 0 Basis= 32, Time= 2.58, New conv eig= 0 Basis= 33, Time= 2.58, New conv eig= 0 End of sweep: Basis= 33, Time= 2.58, New conv eig= 0 ```

There are 19 eigenvalues smaller than 100.

`length(results.Eigenvalues)`
```ans = 19 ```

Plot the first eigenmode and compare it to the MATLAB's `membrane` function.

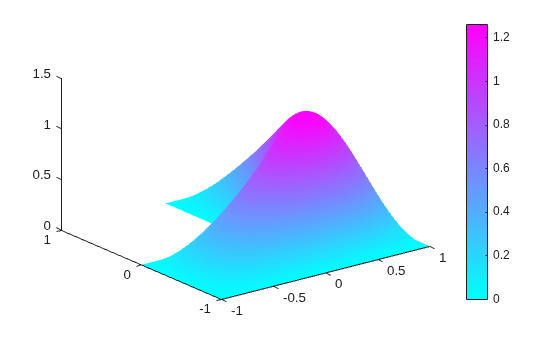

```u = results.Eigenvectors; pdeplot(model,'XYData',u(:,1),'ZData',u(:,1));```

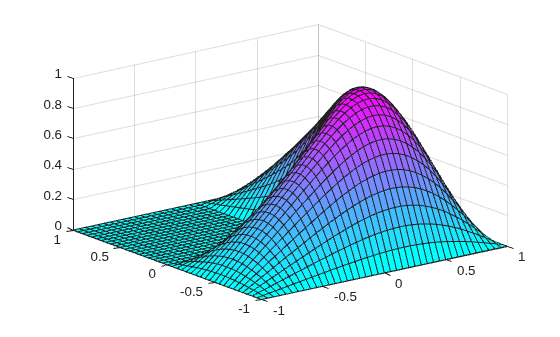

```figure membrane(1,20,9,9)```

Eigenvectors can be multiplied by any scalar and remain eigenvectors. This explains the difference in scale that you see.

`membrane` can produce the first 12 eigenfunctions for the L-shaped membrane. Compare the 12th eigenmodes.

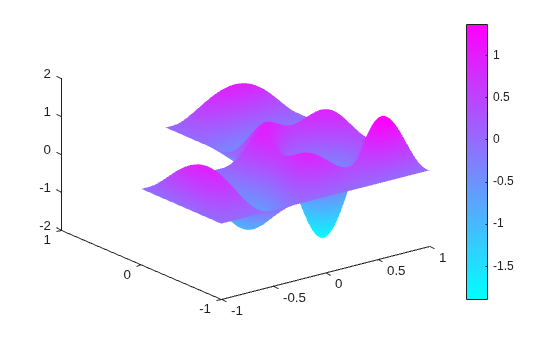

```figure pdeplot(model,'XYData',u(:,12),'ZData',u(:,12));```

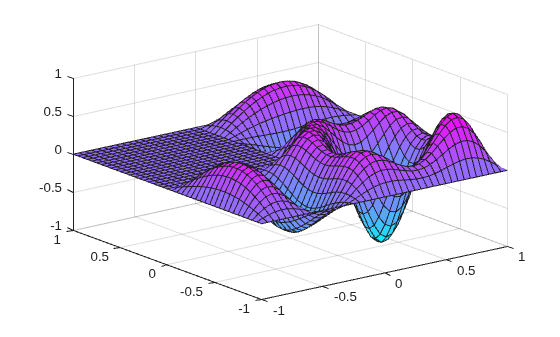

```figure membrane(12,20,9,9)```
