Using GPU arrayfun for Monte-Carlo Simulations

Stock Price Evolution

Assume that prices evolve according to a log-normal distribution related to the risk-free interest rate, the dividend yield (if any), and the volatility in the market. Further, assume that all these quantities remain fixed over the lifetime of the option. These assumptions lead to this stochastic differential equation for the price.

$$dS=S\times [(r-d)dt+\sigma ϵ\sqrt{dt}]$$,

where $$S$$ is the stock price, $$r$$ is the risk-free interest rate, $$d$$ is the annual dividend yield of the stocks, $$\sigma$$ is the volatility of the price, and $$ϵ$$ represents a Gaussian white-noise process. Assuming that $$(S+\Delta S)/S$$ is log-normally distributed, this differential equation can be discretized to obtain this equation.

$$S_{t+1}=S_t\times \exp [(r-d-\frac{1}{2}{\sigma }^2)\Delta t+\sigma ϵ\sqrt{\Delta t}]$$.

Examine a two-year time window using $100 of stock with these assumptions:

stockPrice = 100;
timeToExpiry = 2;
dividend = 0.01;
riskFreeRate = 0.005;
sampleRate = 1/250;
volatility = 0.20;

To ensure predictable results, set the seed for the CPU and GPU random number generators.

seed = 1234;
rng(seed);
gpurng(seed);

Simulate the path of the stock price over time and plot the results.

price = stockPrice;
time = 0;
h = animatedline(Marker=".");

while time < timeToExpiry
    time = time + sampleRate;
    drift = (riskFreeRate - dividend - volatility*volatility/2)*sampleRate;
    perturbation = volatility*sqrt(sampleRate)*randn;
    price = price*exp(drift + perturbation);
    addpoints(h,time,price);
end

grid on
axis tight
xlabel("Time (years)")
ylabel("Stock Price ($)")

Time Execution on the CPU and the GPU

The simulateStockPrice function, provided at the end of this example, simulates the stock price using the discretized differential equation described in the previous section.

Prepare the input data for running 100,000 Monte-Carlo simulations of the stock price.

N = 100000;
startStockPrices = stockPrice*ones(N,1);

Time 100,000 simulations on the CPU.

tic
finalStockPricesCPU = zeros(N,1);
for i = 1:N
    finalStockPricesCPU(i) = simulateStockPrice(startStockPrices(i), ...
        riskFreeRate,dividend,volatility, ...
        timeToExpiry,sampleRate);
end
timeCPU = toc;

Because each simulation gives an independent estimate of the option price, take the mean as the result.

fprintf("Calculated average price of $%1.4f on the CPU in %1.3f secs.\n", ...
    mean(finalStockPricesCPU),timeCPU);

Calculated average price of $99.0857 on the CPU in 2.206 secs.

To run the simulations on the GPU, prepare the input data on the GPU by creating a gpuArray object.

gpuStartStockPrices = gpuArray(startStockPrices);

When you call arrayfun with a GPU array and a function handle as inputs, arrayfun applies the function you specify to each element of the array. This behavior means that looping over each starting stock price is not necessary. The arrayfun function on the GPU turns an element-wise MATLAB® function into a custom CUDA® kernel, which reduces the overhead of performing the operation.

Run the simulateStockPrice function using arrayfun and time 100,000 simulations on the GPU using gputimeit.

finalStockPricesGPU = arrayfun(@simulateStockPrice, ...
        gpuStartStockPrices,riskFreeRate,dividend,volatility, ...
        timeToExpiry,sampleRate);

timeGPU = gputimeit(@() arrayfun(@simulateStockPrice, ...
        gpuStartStockPrices,riskFreeRate,dividend,volatility, ...
        timeToExpiry,sampleRate));

fprintf("Calculated average price of $%1.4f on the GPU in %1.3f secs.\n", ...
    mean(finalStockPricesGPU),timeGPU);

Calculated average price of $99.0442 on the GPU in 0.023 secs.

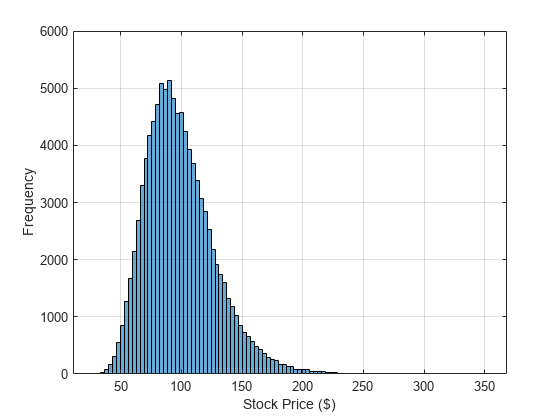

Plot the results of the Monte-Carlo simulations on the GPU in a histogram.

histogram(finalStockPricesGPU,100);
xlabel("Stock Price ($)")
ylabel("Frequency")
grid on

Pricing an Asian Option

Use a European Asian Option based on the arithmetic mean of the stock price during the lifetime of the option. The asianCallOption function calculates the mean price by accumulating the price during the simulation. For a call option, the function exercises the option if the average price is above the strike price. The payout is the difference between the average price and the strike price. Use the asianCallOption, provided at the end of this example, to simulate an Asian call option.

Set the strike price for the option to $95.

strike = 95;

Time 100,000 simulations on the CPU and on the GPU using arrayfun and show the results.

tic
optionPricesCPU = zeros(N,1);
for i=1:N
    optionPricesCPU(i) = asianCallOption(startStockPrices(i), ...
        riskFreeRate,dividend,volatility,strike, ...
        timeToExpiry,sampleRate);
end
timeAsianOptionCPU = toc;

fprintf("Calculated average price of $%1.4f on the CPU in %1.3f secs.\n", ...
    mean(optionPricesCPU),timeAsianOptionCPU);

Calculated average price of $8.6733 on the CPU in 2.146 secs.

optionPricesGPU = arrayfun( @asianCallOption, ...
    gpuStartStockPrices,riskFreeRate,dividend,volatility,strike, ...
    timeToExpiry,sampleRate );

timeAsianOptionGPU = gputimeit(@() arrayfun( @asianCallOption, ...
    gpuStartStockPrices,riskFreeRate,dividend,volatility,strike, ...
    timeToExpiry,sampleRate));

fprintf("Calculated average price of $%1.4f on the GPU in %1.3f secs.\n", ...
    mean(optionPricesGPU),timeAsianOptionGPU );

Calculated average price of $8.7448 on the GPU in 0.023 secs.

Pricing a Lookback Option

Use a European-style lookback option whose payout is the difference between the minimum stock price and the final stock price over the lifetime of the option. The strike price for the option is the minimum stock price. Because the final stock price is always greater than or equal to the minimum, the option is always exercised and is not really optional. Use the lookbackCallOption, provided at the end of this example, for simulating a European-style lookback call option.

Time 100,000 simulations on both the CPU and on the GPU using arrayfun and show the results.

tic
optionPricesCPU = zeros(N,1);
for i=1:N
    optionPricesCPU(i) = lookbackCallOption(startStockPrices(i), ...
        riskFreeRate,dividend,volatility, ...
        timeToExpiry,sampleRate);
end
timeLookbackOptionCPU = toc;

fprintf("Calculated average price of $%1.4f on the CPU in %1.3f secs.\n", ...
    mean(optionPricesCPU),timeLookbackOptionCPU);

Calculated average price of $19.2456 on the CPU in 2.201 secs.

optionPricesGPU = arrayfun(@lookbackCallOption, ...
    gpuStartStockPrices,riskFreeRate,dividend,volatility, ...
    timeToExpiry,sampleRate);

timeLookbackOptionGPU = gputimeit(@() arrayfun(@lookbackCallOption, ...
    gpuStartStockPrices,riskFreeRate,dividend,volatility, ...
    timeToExpiry,sampleRate));

fprintf("Calculated average price of $%1.4f on the GPU in %1.3f secs.\n", ...
    mean(optionPricesGPU),timeLookbackOptionGPU);

Calculated average price of $19.3893 on the GPU in 0.021 secs.

Pricing a Barrier Option

Use an up-and-out barrier option, which becomes invalid if the stock price reaches the barrier level. If the stock price stays below the barrier level, use the final stock price in a normal European call option calculation. Use the upAndOutCallOption function, provided at the end of this example, to simulate an up-and-out barrier call option.

Set the strike price for the option and the barrier price at which it becomes invalid. Use a strike price of $95 and a barrier price of $150.

strike  = 95;
barrier = 150;

Time 100,000 simulations on the CPU and on the GPU using arrayfun and show the results.

tic
optionPricesCPU = zeros(N,1);
for i=1:N
    optionPricesCPU(i) = upAndOutCallOption(startStockPrices(i), ...
        riskFreeRate,dividend,volatility,strike, ...
        barrier,timeToExpiry,sampleRate);
end
timeBarrierOptionCPU = toc;

fprintf("Calculated average price of $%1.4f on the CPU in %1.3f secs.\n", ...
    mean(optionPricesCPU),timeBarrierOptionCPU);

Calculated average price of $6.8327 on the CPU in 2.074 secs.

optionPricesGPU = arrayfun(@upAndOutCallOption, ...
    gpuStartStockPrices,riskFreeRate,dividend,volatility,strike, ...
    barrier,timeToExpiry,sampleRate);

timeBarrierOptionGPU = gputimeit(@() arrayfun(@upAndOutCallOption, ...
    gpuStartStockPrices,riskFreeRate,dividend,volatility,strike, ...
    barrier,timeToExpiry,sampleRate));

fprintf("Calculated average price of $%1.4f on the GPU in %1.3f secs.\n", ...
    mean(optionPricesGPU),timeBarrierOptionGPU);

Calculated average price of $6.7834 on the GPU in 0.021 secs.

Compare Results

Calculate the ratio of CPU execution time to GPU execution time for each simulation.

ratio = [timeCPU/timeGPU timeAsianOptionCPU/timeAsianOptionGPU ...
    timeLookbackOptionCPU/timeLookbackOptionGPU timeBarrierOptionCPU/timeBarrierOptionGPU]

ratio = 1×4

   94.2557   94.6009  104.1725   97.5490

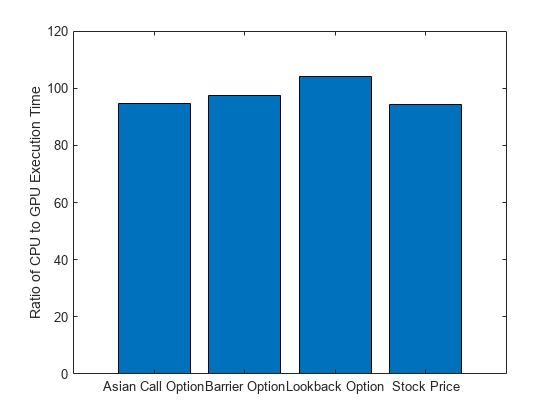

To visualize the results, plot the ratios of execution times for each simulation.

bar(categorical(["Stock Price" "Asian Call Option" "Lookback Option" "Barrier Option"]), ...
    ratio)
ylabel("Ratio of CPU to GPU Execution Time")

In this example, running the simulations on the GPU with arrayfun is significantly faster than running the simulations on the CPU.

When you apply the techniques described in this example to your own code, the performance improvement will strongly depend on your hardware and on the code you run.

Supporting Functions

Stock Price Evolution Simulation Function

The simulateStockPrice function performs a Monte-Carlo simulation to determine a final stock price. The calculation assumes that prices evolve according to a log-normal distribution related to the risk-free interest rate, the dividend yield (if any), and the volatility in the market.

The simulateStockPrice function takes an initial stock price, a risk-free interest rate, a dividend rate, a market volatility, a total time window, and a sample rate as input.

function finalStockPrice = simulateStockPrice(price,riskFreeRate,dividend,volatility,T,dT)
t = 0;
while t < T
    t = t + dT;
    drift = (riskFreeRate - dividend - volatility*volatility/2)*dT;
    perturbation = volatility*sqrt(dT)*randn;
    price = price.*exp(drift + perturbation);
end

finalStockPrice = price;
end

Asian Call Option Function

The asianCallOption function performs a Monte-Carlo simulation to determine an Asian call option price. The calculation assumes that prices evolve according to a log-normal distribution related to the risk-free interest rate, the dividend yield (if any), and the volatility in the market. The function calculates the mean price by accumulating the price during the simulation. For a call option, the function exercises the option if the average price is above the strike price. The payout is the difference between the average price and the strike price.

The asianCallOption function takes an initial stock price, a risk-free interest rate, a dividend rate, a market volatility, a strike price, a total time window, and a sample rate as input.

function optionPrice = asianCallOption(price,riskFreeRate,dividend,volatility,strike,T,dT)
t = 0;
cumulativePrice = 0;
while t < T
    t = t + dT;
    dr = (riskFreeRate - dividend - volatility*volatility/2)*dT;
    pert = volatility*sqrt(dT)*randn;
    price = price*exp(dr + pert);
    cumulativePrice = cumulativePrice + price;
end
numSteps = (T/dT);
meanPrice = cumulativePrice/numSteps;

% Express the final price in today's money
optionPrice = exp(-riskFreeRate*T)*max(0,meanPrice - strike);
end

Lookback Option Function

The lookbackCallOption function performs a Monte-Carlo simulation to determine a European-style lookback option whose payout is the difference between the minimum stock price and the final stock price over the lifetime of the option. The strike price for the option is the minimum stock price. Because the final stock price is always greater than or equal to the minimum, the option is always exercised and is not really "optional".

The lookbackCallOption function takes an initial stock price, a risk-free interest rate, a dividend rate, a market volatility, a total time window, and a sample rate as input.

function optionPrice = lookbackCallOption(price,riskFreeRate,dividend,volatility,T,dT)
t = 0;
minPrice = price;
while t < T
    t = t + dT;
    dr = (riskFreeRate - dividend - volatility*volatility/2)*dT;
    pert = volatility*sqrt(dT)*randn;
    price = price*exp(dr + pert);
    if price < minPrice
        minPrice = price;
    end
end

% Express the final price in today's money
optionPrice = exp(-riskFreeRate*T)*max(0,price - minPrice);
end

Barrier Option Function

The upAndOutCallOption function performs a Monte-Carlo simulation to determine an up-and-out barrier call option price. If the stock price stays below the barrier level, the function uses the final stock price in a normal European call option calculation.

The upAndOutCallOption function takes an initial stock price, a risk-free interest rate, a dividend rate, a market volatility, a strike price, a barrier price, a total time window, and a sample rate as input.

function optionPrice = upAndOutCallOption(price,riskFreeRate,dividend,volatility,strike,barrier,T,dT)
t = 0;
while (t < T) && (price < barrier)
    t = t + dT;
    dr = (riskFreeRate - dividend - volatility*volatility/2)*dT;
    pert = volatility*sqrt(dT)*randn;
    price = price*exp(dr + pert);
end

if price<barrier
    % Within barrier, so price as for a European option
    optionPrice = exp(-riskFreeRate*T)*max(0,price - strike);
else
    % Hit the barrier, so the option is withdrawn
    optionPrice = 0;
end
end
