Read MPS file for LP and MILP optimization data



problem = mpsread(mpsfile) reads data for linear programming (LP) and mixed-integer linear programming (MILP) problems. It returns the data in a structure that the intlinprog or linprog solvers accept.


collapse all

Load an mps file and solve the problem it describes.

Load the eil33-2.mps file from a public repository. View the problem type.

problem = mpsread('eil33-2.mps')
problem =

          f: [4516x1 double]
      Aineq: [0x4516 double]
      bineq: [0x1 double]
        Aeq: [32x4516 double]
        beq: [32x1 double]
         lb: [4516x1 double]
         ub: [4516x1 double]
     intcon: [4516x1 double]
     solver: 'intlinprog'
    options: [1x1 optim.options.Intlinprog]

Notice that problem.intcon is not empty, and problem.solver is 'intlinprog'. The problem is an integer linear programming problem.

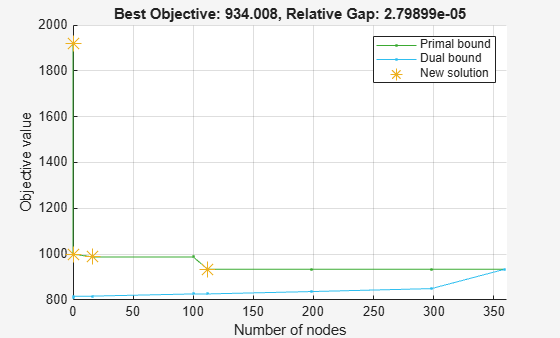

Change the options to suppress iterative display and to generate a plot as the solver progresses.

options = optimoptions('intlinprog','Display','final','PlotFcn',@optimplotmilp);
problem.options = options;

Solve the problem by calling intlinprog.

[x,fval,exitflag,output] = intlinprog(problem);
Optimal solution found.

Intlinprog stopped because the objective value is within a gap tolerance of the optimal value,
options.AbsoluteGapTolerance = 0 (the default value). The intcon variables are
integer within tolerance, options.IntegerTolerance = 1e-05 (the default value).

Input Arguments

collapse all

Path to MPS file, specified as a character vector. mpsfile should be a file in the MPS format.


  • mpsread does not support semicontinuous constraints or SOS constraints.

  • mpsread supports “fixed format” files.

  • mpsread does not support extensions such as objsense and objname.

  • mpsread silently ignores variables in the BOUNDS section that do not previously appear in the COLUMNS section of the MPS file.

Example: 'documents/optimization/milpproblem.mps'

Data Types: char

Output Arguments

collapse all

Problem structure, returned as a structure with fields:

fVector representing objective f'*x
intconVector indicating variables that take integer values (empty for LP, nonempty for MILP)
AineqMatrix in linear inequality constraints Aineq*x  bineq


Vector in linear inequality constraints Aineq*x  bineq


Matrix in linear equality constraints Aeq*x = beq


Vector in linear equality constraints Aeq*x = beq
lbVector of lower bounds
ubVector of upper bounds
solver'intlinprog' (if intcon is nonempty), or 'linprog' (if intcon is empty)


Default options, as returned by the command


mpsread returns problem.Aineq and problem.Aeq as sparse matrices.

Introduced in R2015b
