semread
Description
Examples
Read GPS Navigation Message Data from SEM Almanac File
Download the SEM almanac file from NAVCEN website and parse it. Specify the date for which the file is to be downloaded.
d = datetime("today") - 2;
Create the URL.
baseURL = "https://www.navcen.uscg.gov/sites/default/files/gps/almanac/"; almanacType = "/sem/"; almanacExtension = ".al3"; url = baseURL + d.Year + almanacType + day(d,"dayofyear") + ... almanacExtension;
Specify the file name.
filename = "semalmanac" + "_" + d.Year + "-" + ... d.Month + "-" + d.Day + ".al3";
Save the file.
websave(filename,url);
Get the orbital parameters from the downloaded SEM almanac file.
[data,title] = semread(filename)
data=31×16 timetable
Time GPSWeekNumber GPSTimeOfApplicability PRNNumber SVN AverageURANumber Eccentricity InclinationOffset RateOfRightAscension SqrtOfSemiMajorAxis GeographicLongitudeOfOrbitalPlane ArgumentOfPerigee MeanAnomaly ZerothOrderClockCorrection FirstOrderClockCorrection SatelliteHealth SatelliteConfiguration
____________________ _____________ ______________________ _________ ___ ________________ ____________________ ____________________ _____________________ ___________________ _________________________________ __________________ __________________ __________________________ _________________________ _______________ ______________________
17-Jul-2022 17:03:42 2219 61440 1 63 0 0.0120391845703125 0.0144615173339844 -2.48837750405073e-09 5153.61865234375 0.51555073261261 0.297461271286011 0.881654858589172 0.000319480895996094 -7.27595761418343e-12 0 11
17-Jul-2022 17:03:42 2219 61440 2 61 1 0.0199451446533203 0.007476806640625 -2.53567122854292e-09 5154.81982421875 0.486109972000122 -0.446799159049988 0.925528883934021 -0.000651359558105469 0 0 9
17-Jul-2022 17:03:42 2219 61440 3 69 0 0.00439071655273438 0.0102882385253906 -2.56841303780675e-09 5153.53857421875 0.844612836837769 0.320030331611633 0.529847264289856 -0.000309944152832031 -1.09139364212751e-11 0 11
17-Jul-2022 17:03:42 2219 61440 4 74 0 0.00190067291259766 0.00612449645996094 -2.46654963120818e-09 5153.54736328125 -0.811291694641113 -0.953091979026794 -0.536049604415894 -0.00014495849609375 3.63797880709171e-12 0 12
17-Jul-2022 17:03:42 2219 61440 5 50 0 0.00610446929931641 0.00614738464355469 -2.61570676229894e-09 5153.70166015625 0.831113338470459 0.338927388191223 -0.287315726280212 -8.96453857421875e-05 0 0 10
17-Jul-2022 17:03:42 2219 61440 6 67 0 0.00243806838989258 0.0142459869384766 -2.48473952524364e-09 5153.71875 0.512914299964905 -0.275499105453491 0.955711841583252 0.00038909912109375 1.45519152283669e-11 0 11
17-Jul-2022 17:03:42 2219 61440 7 48 0 0.0163321495056152 0.00248146057128906 -2.53567122854292e-09 5153.59375 -0.487354755401611 -0.716959476470947 0.676499962806702 0.000318527221679688 0 0 10
17-Jul-2022 17:03:42 2219 61440 8 72 0 0.00738525390625 0.00658035278320312 -2.48110154643655e-09 5153.515625 0.170664310455322 0.0531282424926758 -0.420778274536133 -7.62939453125e-05 0 0 11
17-Jul-2022 17:03:42 2219 61440 9 68 0 0.00224971771240234 0.00393486022949219 -2.49565346166492e-09 5153.74755859375 -0.828534364700317 0.607595086097717 -0.25430428981781 -0.000318527221679688 3.63797880709171e-12 0 11
17-Jul-2022 17:03:42 2219 61440 10 73 0 0.00771760940551758 0.0102214813232422 -2.56841303780675e-09 5153.63232421875 0.843742370605469 -0.797283291816711 0.24565315246582 -0.000494956970214844 -1.45519152283669e-11 0 11
17-Jul-2022 17:03:42 2219 61440 11 78 0 0.000565528869628906 0.0065765380859375 -2.57205101661384e-09 5153.5556640625 0.528360724449158 0.913978695869446 -0.423171401023865 -1.04904174804688e-05 0 0 12
17-Jul-2022 17:03:42 2219 61440 12 58 0 0.00853252410888672 0.00836372375488281 -2.53567122854292e-09 5153.7099609375 -0.132869362831116 0.417471408843994 0.468230128288269 -0.000247955322265625 -7.27595761418343e-12 0 10
17-Jul-2022 17:03:42 2219 61440 13 43 0 0.00612878799438477 0.00843238830566406 -2.43380782194436e-09 5153.63427734375 -0.779114127159119 0.291950225830078 -0.548626184463501 0.000349998474121094 7.27595761418343e-12 0 9
17-Jul-2022 17:03:42 2219 61440 14 77 0 0.00212907791137695 0.0030670166015625 -2.58660293184221e-09 5153.5986328125 -0.143590927124023 -0.983529925346375 0.45069146156311 -0.000111579895019531 0 0 12
17-Jul-2022 17:03:42 2219 61440 15 55 0 0.0142536163330078 -0.00369071960449219 -2.57205101661384e-09 5153.53564453125 -0.863561153411865 0.352016925811768 -0.718587875366211 -4.48226928710938e-05 3.63797880709171e-12 0 10
17-Jul-2022 17:03:42 2219 61440 16 56 0 0.0127029418945312 0.00832366943359375 -2.53567122854292e-09 5153.6240234375 -0.126978635787964 0.232561111450195 -0.108456969261169 -0.000515937805175781 -3.63797880709171e-12 0 9
⋮
title = 'CURRENT.ALM'
View Satellite Positions from SEM Almanac File for Receiver Position
Read GPS navigation message data from a SEM almanac file.
gpsData = semread("semalmanac_2022-4-10.al3");
Get the satellite positions, velocities, and IDs at the first time step.
t = gpsData.Time(1);
[satPos,satVel,satID] = gnssconstellation(t,gpsData,GNSSFileType="SEM");
Specify a GNSS receiver position in geodetic coordinates (latitude, longitude, and altitude).
recPos = [42 -71 50]; % Natick, MA
Get the azimuth and elevation look angles of the satellite positions for the specified receiver position. The isVis
output indicates which satellites are visible. Find the total number of visible satellites by using nnz
.
[az,el,isVis] = lookangles(recPos,satPos);
fprintf('%d satellites visible at %s.\n',nnz(isVis),t);
9 satellites visible at 12-Apr-2022 16:50:54.
Visualize all the visible satellites.

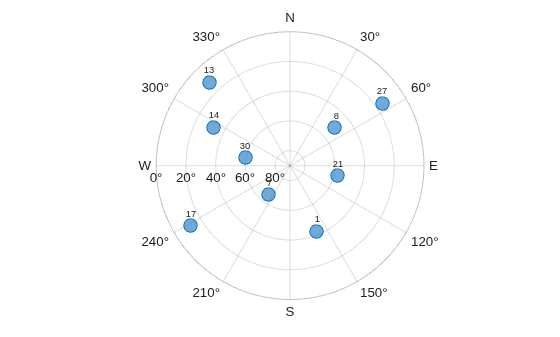

skyplot(az(isVis),el(isVis),satID(isVis))
Plot Trajectories of Satellites Over Time from SEM Almanac File
Read GPS navigation message data from a SEM almanac file.
gpsData = semread("semalmanac_2022-4-10.al3");
Specify the relevant time-stepping information.
startTime = gpsData.Time(1); numHours = 12; secondsPerHour = 3600; dt = 60; timeElapsed = 0:dt:(numHours*secondsPerHour); t = startTime + seconds(timeElapsed);
Specify a GNSS receiver position in geodetic coordinates (latitude, longitude, and altitude).
recPos = [42 -71 50]; % Natick, MA
Get the azimuth and elevation look angles for the all the positions of the satellites for the specified receiver position.
numSats = numel(gpsData.PRNNumber); % Number of satellites [allAz,allEl] = deal(NaN(numel(t),numSats)); for i = 1:numel(t) [satPos,~,satID] = gnssconstellation(t(i),gpsData,GNSSFileType="SEM"); [az,el,vis] = lookangles(recPos,satPos); allAz(i,:) = az; allEl(i,:) = el; end
Mark all satellites below the horizon as NaN
for no visibility.
allEl(allEl < 0) = NaN;
Visualize the trajectories of the satellites.

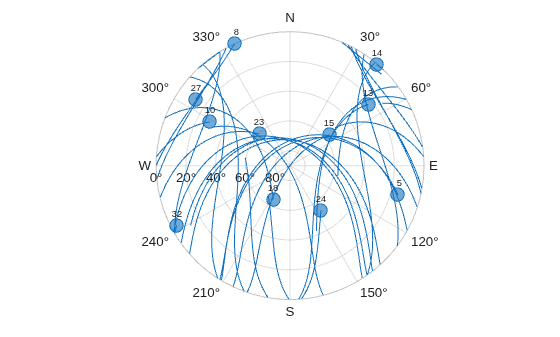

figure skyplot(allAz,allEl,satID)
Animate the trajectories of the satellites.
figure sp = skyplot(allAz(1,:),allEl(1,:),satID); for i = 1:size(allAz, 1) set(sp,AzimuthData=allAz(1:i,:),ElevationData=allEl(1:i,:)); drawnow end
Input Arguments
filename
— SEM almanac file name
string scalar | character vector
SEM almanac file name, specified as a string scalar or character vector. The file name can include an absolute path, relative path, or no path. The file name can also include the file extensions.
Example: "semalmanac_2022-1-18.al3"
Example: "mydir/semalmanac_2022-1-18.al3"
Example: "C:/mydir/semalmanac_2022-1-18.al3"
Data Types: char
| string
refdate
— Reference date
"06-Jan-1980"
| "21-Aug-1999"
| "06-Apr-2019"
Reference date, specified as one of these valid datetime
strings that coincide with the GPS week number rollover
dates:
"06-Jan-1980"
"21-Aug-1999"
"06-Apr-2019"
These dates occur every 1024 weeks, starting from January 6, 1980 at 00:00 (UTC).
The default value is a datetime
string that coincides with the most
recent GPS week number rollover date before the current day.
Example: GPSWeekEpoch="21-Aug-1999"
Data Types: char
| string
Output Arguments
data
— Parameters of each satellite
timetable
Parameters of each satellite, returned as a timetable
with a row for each record and a column for each parameter in that
record. Find more information on the SEM almanac parameters definition, see the Table
40-II in ICD-GPS-240D
[2].
Parameters | Data Type | Description |
---|---|---|
Time | datetime | GPS clock time, calculated using |
GPSWeekNumber | double | GPS week number, continuous, not
|
GPSTimeOfApplicability | double | Number of seconds since the beginning of the GPS week number. |
PRNNumber | double | Satellite pseudorandom noise number. |
SVN | double | Space vehicle reference number of the satellite. |
AverageURANumber | double | Average URA number of the satellite. |
Eccentricity | double | Eccentricity of the orbit. |
InclinationOffset | double | Inclination angle offset from 54 degrees, in semicircles. |
RateOfRightAscension | double | Rate of change in the measurement of the angle of right ascension, in semicircles per second. |
SqrtOfSemiMajorAxis | double | Square root of the semimajor axis, in meters1/2. |
GeographicLongitudeOfOrbitalPlane | double | Geographic longitude of the orbital plane at the weekly epoch, in semicircles. |
ArgumentOfPerigee | double | Angle from the equator to perigee, in semicircles. |
MeanAnomaly | double | Angle of the position of the satellite in its orbit relative to perigee, in semicircles. |
ZerothOrderClockCorrection | double | Satellite almanac zeroth-order clock correction term, in seconds. |
FirstOrderClockCorrection | double | Satellite almanac first-order clock correction term, in seconds per second. |
SatelliteHealth | double | Satellite vehicle health data code. |
SatelliteConfiguration | double | Satellite vehicle configuration code. |
title
— Almanac title
character vector
Almanac title, returned as a character vector.
Tips
To download SEM almanac files from the NAVCEN website for the current date, you must specify a date 2 days before the current date because the GPS time of applicability is approximately 70 hours later than the transmission time of the almanac data set. See the Read GPS Navigation Message Data from SEM Almanac File example for more details.
References
[1] Science Applications International Corporation. NAVSTAR GPS Space Segment/Navigation User Interfaces. IS-GPS-200M. Los Angeles, CA: United States Space Force Space Systems Command, approved May 21, 2021. https://www.navcen.uscg.gov/sites/default/files/pdf/gps/IS_GPS_200M.pdf.
[2] Science Applications International Corporation. NAVSTAR GPS Space Segment/Navigation User Interfaces. ICD-GPS-240D. Los Angeles, CA: United States Space Force Space Systems Command, approved May 21, 2021. https://www.navcen.uscg.gov/sites/default/files/pdf/gps/ICD_GPS_240D.pdf.
[3] United States Coast Guard. "GPS Almanacs, NANUs, and OPS Advisories Archives." US Coast Guard Navigation Center. Accessed May 6, 2022. https://www.navcen.uscg.gov/archives.
Version History
Introduced in R2022b
See Also
rinexread
| yumaread
| gnssconstellation
| skyplot
| lookangles
| websave
