thetaregion
Syntax
Description
thetaregion(
creates a filled
wedge between the two specified angles in the current (polar) axes. To create one filled
wedge, specify theta1,theta2
)theta1
and theta2
as scalars. To create
multiple filled wedges, specify theta1
and theta2
as
vectors of the same length.
thetaregion(
specifies multiple wedges as a
matrix. To create n wedges, specify T
)T
as a
2byn or nby2 matrix containing the bounding
angles for each wedge.
thetaregion(___,
specifies properties for the filled wedge using one or more namevalue arguments. If you
create multiple wedges, the property values apply to all of the wedges. Specify the
namevalue arguments after all other inputs. For example, create a yellow wedge using
Name=Value
)thetaregion(0,pi/2,FaceColor="yellow")
. For a list of properties, see
PolarRegion Properties.
thetaregion(
specifies the
target polar axes for the filled wedge. Specify pax
,___)pax
as the first argument
in any of the previous syntaxes.
pr = thetaregion(___)
returns one or more
PolarRegion
objects. Use pr
to set properties of the
filled wedges after creating them. For a list of properties, see PolarRegion Properties.
Examples
Create Filled Wedge with Tick Labels in Radians
Create a polar plot. Then create a filled wedge between the angles 0
and pi/2
.
% Create polar plot theta = 0:0.01:2*pi; rho = 2*sin(2*theta).*cos(2*theta); polarplot(theta,rho,LineWidth=1.5) % Create wedge theta1 = 0; theta2 = pi/2; thetaregion(theta1,theta2)
Change the thetaaxis units to radians by setting the ThetaAxisUnits
property.
pax = gca;

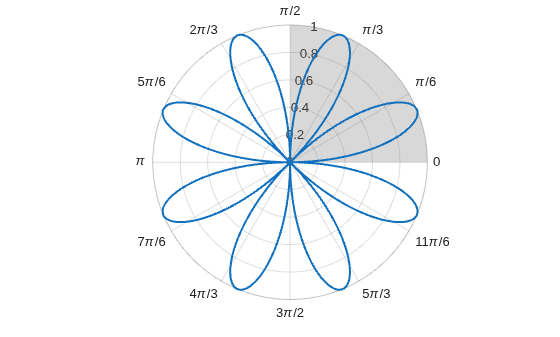

pax.ThetaAxisUnits = "radians";
Create Multiple Filled Wedges
Create three filled wedges by specifying the theta values as threeelement vectors.

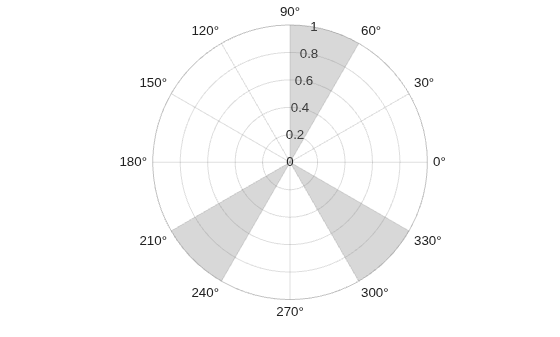

theta1 = [pi/3 7*pi/6 10*pi/6]; theta2 = [pi/2 4*pi/3 11*pi/6]; thetaregion(theta1,theta2)
Alternatively, specify one 2by3 matrix of theta values.
figure T = [pi/3 7*pi/6 10*pi/6; pi/2 4*pi/3 11*pi/6]; thetaregion(T)
Customize Fill Color and Boundary Lines
You can specify PolarRegion
properties, such as face color and boundary line width and color, by specifying one or more namevalue arguments when you call thetaregion
. Alternatively, you can set properties of the PolarRegion
object after creating it.
For example, create two green filled wedges: one in the first (upperright) quadrant and the other in the third (lowerleft) quadrant. Specify an output argument to store the PolarRegion
objects so that you can modify them later.
theta1 = [0 pi];
theta2 = [pi/2 3*pi/2];

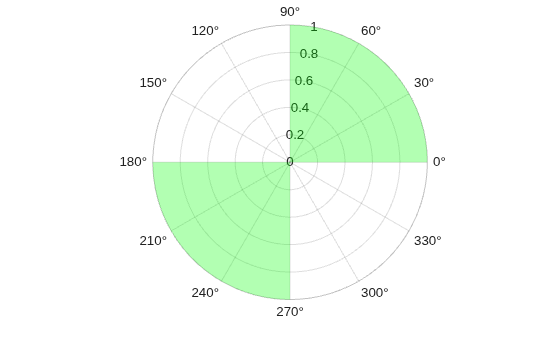

tr = thetaregion(theta1,theta2,FaceColor="g");
Change the color of the wedge in the third quadrant to a shade of purple by setting the FaceColor property to a hexadecimal color code. Then display thick boundary lines on the wedge in the first quadrant by setting the EdgeColor
property to a value other than "none"
and LineWidth
property to 1.5
points.

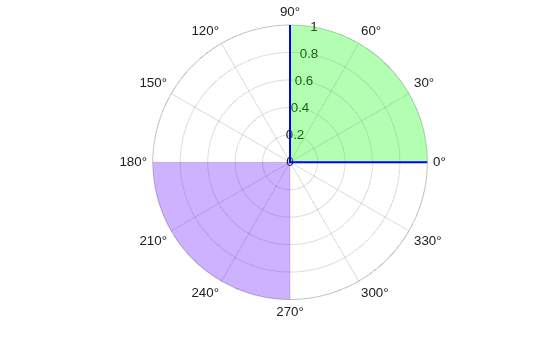

% Set color of wedge in third quadrant tr(2).FaceColor = "#5500FF"; % Set boundary color and line thickness in first quadrant tr(1).EdgeColor = "b"; tr(1).LineWidth = 1.5;
Match Wedge Color to Plot Color
Plot a blue and a red cardioid.

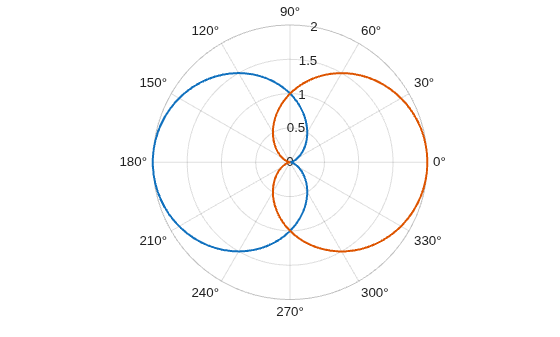

theta = linspace(0,2*pi); rho1 = 1cos(theta); rho2 = 1cos(theta+pi); % Blue cardioid cardioid1 = polarplot(theta,rho1,LineWidth=1.5); hold on % Red cardioid cardioid2 = polarplot(theta,rho2,LineWidth=1.5);
Create wedges that highlight specific regions of each cardioid.

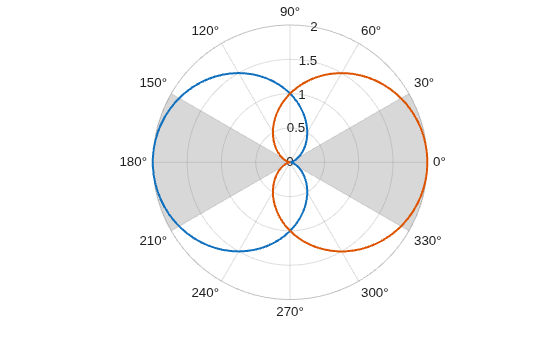

theta1 = 5*pi/6; theta2 = 7*pi/6; wedge1 = thetaregion(theta1,theta2); theta3 = 11*pi/6; theta4 = 13*pi/6; wedge2 = thetaregion(theta3,theta4);
Match each wedge color to the corresponding cardioid by setting the SeriesIndex
property of the wedge to the SeriesIndex
property of the cardioid.

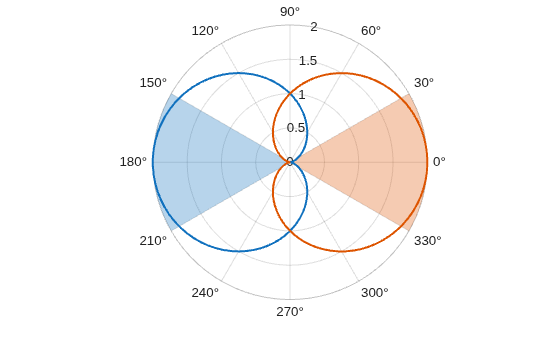

wedge1.SeriesIndex = cardioid1.SeriesIndex; wedge2.SeriesIndex = cardioid2.SeriesIndex;
Move Wedge on Top of Plot
To move a wedge on top of a plot, set the Layer
property of the PolarRegion
object to "top"
. For example, plot a polar rose and add a filled wedge. When you create the wedge, specify a custom face color and a transparency value so that you can see that the rose is on top of the wedge.
% Plot polar rose theta = 0:0.01:2*pi; rho = sin(2*theta).*cos(2*theta); polarplot(theta,rho,LineWidth=1.5) % Add filled wedge theta1 = 0; theta2 = pi/4; tr = thetaregion(theta1,theta2,FaceColor=[0.8 0.8 0.8],FaceAlpha=0.7);
Move the filled wedge on top of the rose by setting the Layer
property to "top"
.

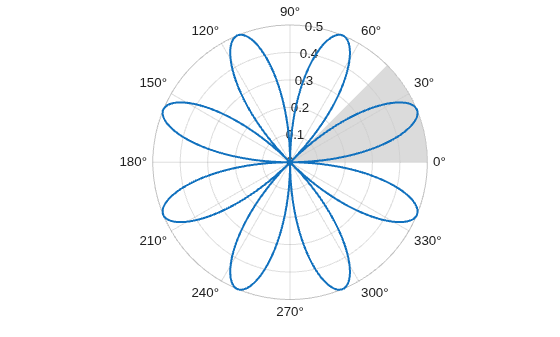

tr.Layer = "top";
Create Filled Wedges in Different Axes
To create filled wedges in different polar axes within the same figure, create a tiled chart layout. In this case, create two axes that each contain a filled wedge.
Use the tiledlayout
function to create a 1by2 tiled chart layout t
. Use the polaraxes
function to create each PolarAxes
object. By default, both objects occupy the first tile. Move the second PolarAxes
object to the second tile by setting the Layout.Tile
property.

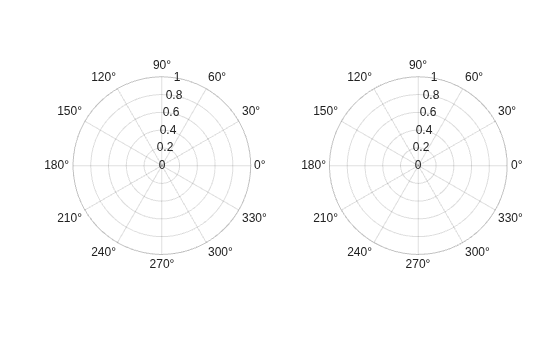

t = tiledlayout(1,2); pax1 = polaraxes(t); pax2 = polaraxes(t); pax2.Layout.Tile = 2;

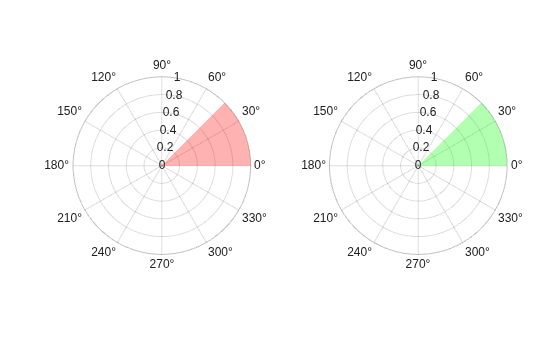

Create a red wedge in the first polar axes, and create a green wedge in the second polar axes. Specify the PolarAxes
object that you want to plot into as the first argument when you call thetaregion
.
theta1 = 0; theta2 = pi/4; thetaregion(pax1,theta1,theta2,FaceColor="r") thetaregion(pax2,theta1,theta2,FaceColor="g")
Input Arguments
theta1,theta2
— Bounding angles (in radians)
pair of scalars  pair of vectors
Bounding angles (in radians), specified as a pair of scalars or a pair of vectors.
To create one filled wedge, specify theta1
and
theta2
as scalars. To create multiple filled wedges, specify
vectors of equal length. You can specify the angles in any order. Thus,
thetaregion(0,pi/2)
and thetaregion(pi/2,0)
produce the same result.
To create a circle that spans all theta values, specify one of the angles as
Inf
.
If you specify an angle as a NaN
value, no region appears for
that angle.
Example: thetaregion(pi/4,pi/2)
creates a filled wedge
theta=pi/4
to theta=pi/2
.
Example: thetaregion([0 pi/4],[pi/6 pi/2])
creates two filled
wedges: one from theta=0
to theta=pi/6
and the
other from theta=pi/4
to
theta=pi/2
.
Data Types: single
 double
T
— Bounding angles for multiple wedges
2byn matrix  nby2 matrix
Bounding angles for multiple wedges, specified as a 2byn or nby2 matrix, where n is the number of wedges. If you specify a 2by2 matrix, each column of the matrix corresponds to a wedge.
To create a circle that spans all theta values, specify one of the angles as
Inf
.
If any angles are NaN
values, no region appears for those
angles.
Example: thetaregion([0 pi/4; pi/6 pi/2])
creates two filled
wedges: one from theta=0
to theta=pi/6
, and the
other from theta=pi/4
to
theta=pi/2
.
Data Types: single
 double
pax
— Target polar axes
PolarAxes
object
Target polar axes for the filled wedge, specified as a PolarAxes
object. Use this argument if you want to create the filled wedge in a specific
PolarAxes
object instead of the current axes.
NameValue Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Namevalue arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: thetaregion(0,pi/2,FaceColor="yellow")
creates a yellow
filled wedge.
Note
The properties listed here are only a subset. For a complete list, see PolarRegion Properties.
FaceColor
— Fill color
[0.4902 0.4902 0.4902]
(default)  RGB triplet  hexadecimal color code  "r"
 "g"
 "b"
 ...
Fill color, specified as an RGB triplet, a hexadecimal color code, or a color name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a threeelement row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name  Short Name  RGB Triplet  Hexadecimal Color Code  Appearance

"red"  "r"  [1 0 0]  "#FF0000"
"green"  "g"  [0 1 0]  "#00FF00"
"blue"  "b"  [0 0 1]  "#0000FF"
"cyan"
 "c"  [0 1 1]  "#00FFFF"
"magenta"  "m"  [1 0 1]  "#FF00FF"
"yellow"  "y"  [1 1 0]  "#FFFF00"
"black"  "k"  [0 0 0]  "#000000"
"white"  "w"  [1 1 1]  "#FFFFFF"
"none"  Not applicable  Not applicable  Not applicable  No color
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB^{®} uses in many types of plots.
RGB Triplet  Hexadecimal Color Code  Appearance

[0 0.4470 0.7410]  "#0072BD"
[0.8500 0.3250 0.0980]  "#D95319"
[0.9290 0.6940 0.1250]  "#EDB120"
[0.4940 0.1840 0.5560]  "#7E2F8E"
[0.4660 0.6740 0.1880]  "#77AC30"
[0.3010 0.7450 0.9330]  "#4DBEEE"
[0.6350 0.0780 0.1840]  "#A2142F"
EdgeColor
— Boundary line color
"none"
(default)  RGB triplet  hexadecimal color code  "r"
 "g"
 "b"
 ...
Boundary line color, specified as an RGB triplet, a hexadecimal color code, or a color name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a threeelement row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name  Short Name  RGB Triplet  Hexadecimal Color Code  Appearance

"red"  "r"  [1 0 0]  "#FF0000"
"green"  "g"  [0 1 0]  "#00FF00"
"blue"  "b"  [0 0 1]  "#0000FF"
"cyan"
 "c"  [0 1 1]  "#00FFFF"
"magenta"  "m"  [1 0 1]  "#FF00FF"
"yellow"  "y"  [1 1 0]  "#FFFF00"
"black"  "k"  [0 0 0]  "#000000"
"white"  "w"  [1 1 1]  "#FFFFFF"
"none"  Not applicable  Not applicable  Not applicable  No color
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet  Hexadecimal Color Code  Appearance

[0 0.4470 0.7410]  "#0072BD"
[0.8500 0.3250 0.0980]  "#D95319"
[0.9290 0.6940 0.1250]  "#EDB120"
[0.4940 0.1840 0.5560]  "#7E2F8E"
[0.4660 0.6740 0.1880]  "#77AC30"
[0.3010 0.7450 0.9330]  "#4DBEEE"
[0.6350 0.0780 0.1840]  "#A2142F"
FaceAlpha
— Fill color transparency
0.3
(default)  scalar in range [0,1]
Fill color transparency, specified as a scalar in the range [0,1]
. A value of 1
is opaque and 0
is completely transparent. Values between 0
and 1
are partially transparent.
LineStyle
— Boundary line style
""
(default)  ""
 ":"
 "."
 "none"
Boundary line style, specified as one of the options listed in this table.
Line Style  Description  Resulting Line

""  Solid line

""  Dashed line

":"  Dotted line

"."  Dashdotted line

"none"  No line  No line
Version History
Introduced in R2024a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
