streamslice

Plot streamlines in slice planes

•

Syntax

streamslice(X,Y,Z,U,V,W,xslice,yslice,zslice)

streamslice(U,V,W,xslice,yslice,zslice)

streamslice(X,Y,U,V)

streamslice(U,V)

streamslice(___,density)

streamslice(___,arrowsmode)

streamslice(___,method)

streamslice(ax,___)

lineobj = streamslice(___)

[verts,averts] = streamslice(___)

Description

streamslice(X,Y,Z,U,V,W,xslice,yslice,zslice) draws automatically spaced streamlines from 3-D vector data U, V, and W. Specify X, Y, and Z as the coordinate data. Specify xslice, yslice, and zslice as the slice locations orthogonal to a particular axis.

streamslice(U,V,W,xslice,yslice,zslice) uses the default coordinate data for U, V, and W. The (x,y,z) location for each element in U, V, and W is based on the column, row, and page index, respectively.

streamslice(X,Y,U,V) draws automatically spaced streamlines from 2-D vector data U and V. Specify X and Y as the coordinate data.

streamslice(U,V) uses the default coordinate data for U and V. The (x,y) location for each element in U and V is based on the column and row index, respectively.

streamslice(___,density) modifies the automatic spacing of the streamlines, where density is a positive scalar. The default value is 1. Higher values produce more streamlines on each plane. For example, 2 produces approximately twice as many streamlines as the default, while 0.5 produces approximately half as many.

streamslice(___,arrowsmode), where arrowsmode is 'noarrows', does not draw direction arrows. The default for arrowsmode is 'arrows', which draws direction arrows. Use this option with any of the input arguments from the previous syntaxes.

streamslice(___,method) specifies the interpolation method, where method can be 'linear', 'cubic', or 'nearest'.

streamslice(ax,___) plots into the specified axes, instead of into the current axes object (gca).

lineobj = streamslice(___) returns the Line objects created.

[verts,averts] = streamslice(___) returns vertices for drawing the streamlines and arrows as cell arrays. This syntax does not plot the streamlines.

Examples

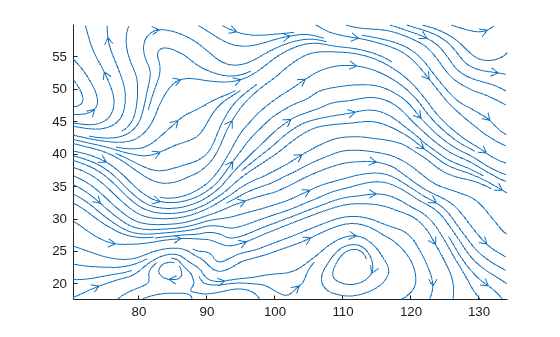

Plot Streamlines in Slice Plane

Load the wind dataset, which loads the 3-D arrays u, v, w, x, y, and z, representing air currents over regions of North America. Draw streamlines along the slice plane where z = 5.

load wind
streamslice(x,y,z,u,v,w,[],[],5)
axis tight

Disable Direction Arrows

Load the wind dataset and draw streamlines without direction arrows along the slice plane where z = 5.

load wind
streamslice(x,y,z,u,v,w,[],[],5,'noarrows')
axis tight

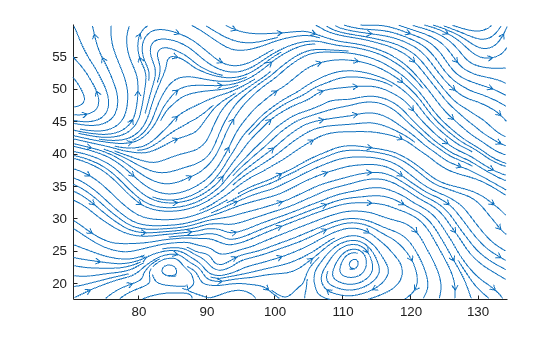

Specify Streamline Density

Load the wind dataset and draw streamlines along the slice plane, where z = 5. Use a density value of 2 to draw approximately twice as many streamlines as the default.

load wind
streamslice(x,y,z,u,v,w,[],[],5,2)
axis tight

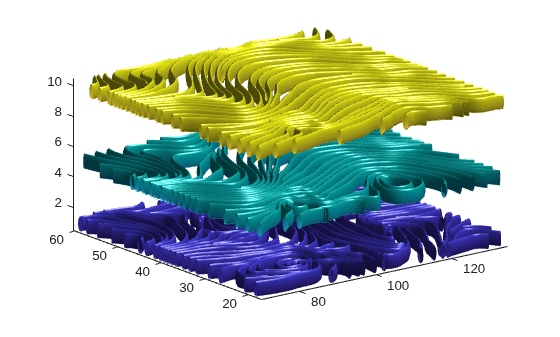

Plot Streamlines in Slice Planes as Tube

Load the wind dataset and compute the vertices of streamlines along the slice planes, where z = 1, 5, and 10.

load wind
[verts, ~] = streamslice(x,y,z,u,v,w,[],[],[1,5,10]);

Pass the vertices to streamtube to visualize the lines as tubes.

streamtube(verts,1)

view(3)
axis tight
shading interp
camlight
lighting gouraud

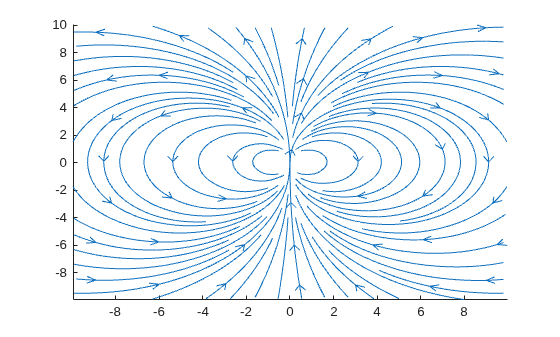

Modify Streamlines After Creation

Plot streamlines and store the returned Line objects in l.

[x,y] = meshgrid(-10:10);
u = 2.*x.*y;
v = y.^2 - x.^2;
l = streamslice(x,y,u,v);
axis tight

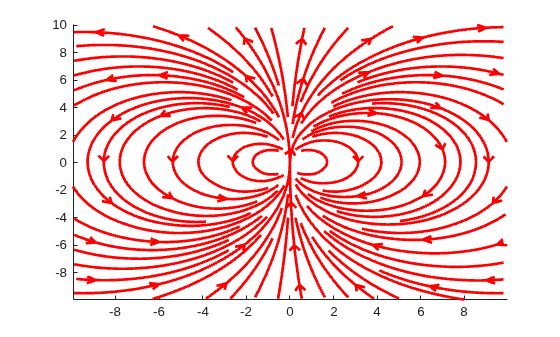

Set the line width of the streamlines to 2. Set their color to red. Use the set function to change the properties of all the streamlines at the same time.

set(l,'LineWidth',2)
set(l,'Color','r');

Plot Streamlines to Visualize Gradient of a Surface Plot

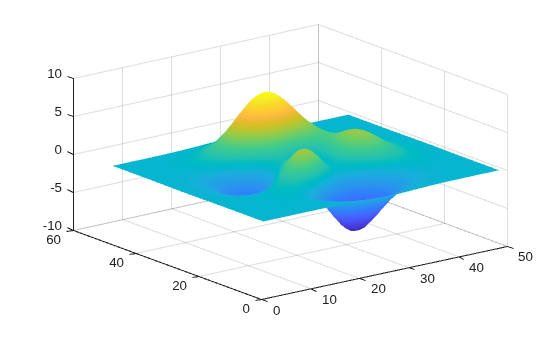

First, create a surface plot.

z = peaks;
surf(z);
shading interp;

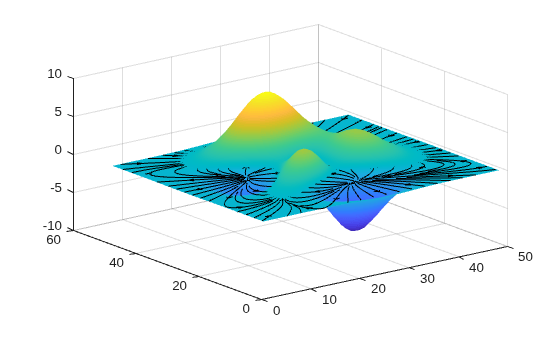

Compute the two-dimensional gradient of z. Use the x and y components as the vector data input for streamslice. Set the color of the streamlines to black.

[u,v] = gradient(z);
l = streamslice(u,v);
set(l,'Color','k');

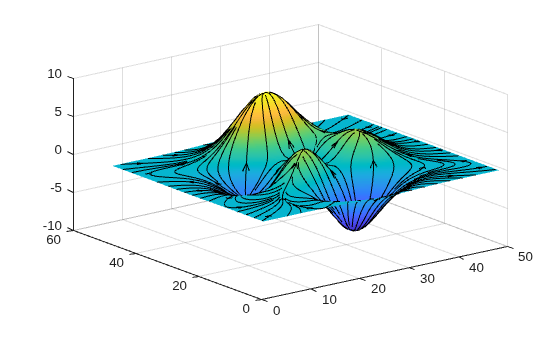

Displace the streamlines on the z-axis so that they are drawn on the surface of the curve.

for i=1:length(l)
    zi = interp2(z,l(i).XData, l(i).YData);
    l(i).ZData = zi;
end

Input Arguments

X — x-coordinates of vector data

2-D array | 3-D array

x-axis coordinate data, specified as a 2-D or 3-D array. It must be monotonic, but does not need to be uniformly spaced.

X, Y, Z, U, V, and W must be the same size.

You can use the meshgrid function to create X, Y, and Z matrices.

Y — y-coordinates of vector data

2-D array | 3-D array

y-axis coordinate data, specified as a 2-D or 3-D array. It must be monotonic, but does not need to be uniformly spaced.

X, Y, Z, U, V, and W must be the same size.

You can use the meshgrid function to create X, Y, and Z matrices.

Z — z-coordinates of vector data

3-D array

z-axis coordinate data, specified as a 3-D array. It must be monotonic, but does not need to be uniformly spaced.

X, Y, Z, U, V, and W must be the same size.

You can use the meshgrid function to create X, Y, and Z matrices.

U — x-components

2-D array | 3-D array

x-components of vector data, specified as a 2-D or 3-D array.

X, Y, Z, U, V, and W must be the same size.

V — y-components

2-D array | 3-D array

y-components of vector data, specified as a 2-D or 3-D array.

X, Y, Z, U, V, and W must be the same size.

W — z-components

3-D array

z-components of vector data, specified as a 3-D array.

X, Y, Z, U, V, and W must be the same size.

xslice — x-axis slice values

scalar | vector | []

x-axis slice values, specified in one of these forms:

• Scalar — Draw one slice plane orthogonal to the x-axis at the specified location.

• Vector — Draw multiple slice planes orthogonal to the x-axis at the specified locations.

• [] — Do not draw any slice planes.

yslice — y-axis slice values

scalar | vector | []

y-axis slice values, specified in one of these forms:

• Scalar — Draw one slice plane orthogonal to the y-axis at the specified location.

• Vector — Draw multiple slice planes orthogonal to the y-axis at the specified locations.

• [] — Do not draw any slice planes.

zslice — z-axis slice values

scalar | vector | []

z-axis slice values, specified in one of these forms:

• Scalar — Draw one slice plane orthogonal to the z-axis at the specified location.

• Vector — Draw multiple slice planes orthogonal to the z-axis at the specified locations.

• [] — Do not draw any slice planes.

density — Density of streamlines

1 (default) | scalar

Streamline density, specified as a positive scalar.

The default value is 1. Higher values produce more streamlines on each plane. For example, 2 produces approximately twice as many streamlines as the default, while 0.5 produces approximately half as many.

arrowsmode — Arrow display mode

'arrows' (default) | 'noarrows'

Arrow display mode, specified as one of these values:

• 'arrows' — Draw direction arrows on the streamlines.

• 'noarrows' — Do not draw direction arrows on the streamlines.

method — Interpolation method

'linear' (default) | 'cubic' | 'nearest'

Interpolation method, specified as one of these values:

• 'linear' — Linear interpolation of the values at neighboring grid points in each respective dimension.

• 'cubic' — Cubic interpolation of the values at neighboring grid points in each respective dimension.

• 'nearest' — Nearest grid point value.

ax — Target axes

current axes (default) | Axes object

Target axes, specified as an Axes object. If you do not specify the axes, then streamslice plots into the current axes.

Output Arguments

lineobj — Line objects

Line object array

Line objects for streamlines and direction arrows, returned as an array.

verts — Streamline vertices

cell array

Streamline vertices, returned as a cell array. Each element of the cell array is a matrix of vertices for one line.

You can pass these values to any of the streamline drawing functions (streamline, streamribbon, streamtube).

averts — Arrow vertices

cell array

Arrow vertices, returned as a cell array. Each element of the cell array is a matrix of vertices for one arrow. If arrowsmode is 'noarrows', averts is an empty cell array.

You can pass these values to streamline.

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The streamslice function supports GPU array input with these usage notes and limitations:

• This function accepts GPU arrays, but does not run on a GPU.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• This function operates on distributed arrays, but executes in the client MATLAB^®.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a

R2023b: Default line color is has changed

When you create a streamslice plot, MATLAB automatically assigns colors and line styles the same way as for most other plots. For example, the first set of lines are now a soft blue color.

[x,y] = meshgrid(-10:10);
u = 2.*x.*y;
v = y.^2 - x.^2;
slicelines = streamslice(x,y,u,v);
axis tight

If you call the streamline function repeatedly, subsequent plots cycle through the same set of colors as other plots do. In previous releases, the lines were bright blue.

To preserve the appearance from previous releases, use the set function to set the Color property to [0 0 1].

set(slicelines,Color=[0 0 1])
