# ss2tf

Convert state-space representation to transfer function

## Description

## Examples

### Mass-Spring System

A one-dimensional discrete-time oscillating system consists of a unit mass, $$m$$, attached to a wall by a spring of unit elastic constant. A sensor samples the acceleration, $$a$$, of the mass at $${F}_{s}=5$$ Hz.

Generate 50 time samples. Define the sampling interval $$\Delta t=1/{F}_{s}$$.

Fs = 5; dt = 1/Fs; N = 50; t = dt*(0:N-1);

The oscillator can be described by the state-space equations

$$\begin{array}{c}x(k+1)=Ax(k)+Bu(k),\\ y(k)=Cx(k)+Du(k),\end{array}$$

where $$x={\left(\begin{array}{cc}r& v\end{array}\right)}^{T}$$ is the state vector, $$r$$ and $$v$$ are respectively the position and velocity of the mass, and the matrices

$$A=\left(\begin{array}{cc}\mathrm{cos}\Delta t& \mathrm{sin}\Delta t\\ -\mathrm{sin}\Delta t& \mathrm{cos}\Delta t\end{array}\right),\phantom{\rule{1em}{0ex}}B=\left(\begin{array}{c}1-\mathrm{cos}\Delta t\\ \mathrm{sin}\Delta t\end{array}\right),\phantom{\rule{1em}{0ex}}C=\left(\begin{array}{cc}-1& 0\end{array}\right),\phantom{\rule{1em}{0ex}}D=\left(\begin{array}{c}1\end{array}\right).$$

A = [cos(dt) sin(dt);-sin(dt) cos(dt)]; B = [1-cos(dt);sin(dt)]; C = [-1 0]; D = 1;

The system is excited with a unit impulse in the positive direction. Use the state-space model to compute the time evolution of the system starting from an all-zero initial state.

u = [1 zeros(1,N-1)]; x = [0;0]; for k = 1:N y(k) = C*x + D*u(k); x = A*x + B*u(k); end

Plot the acceleration of the mass as a function of time.

stem(t,y,'filled') xlabel('t')

Compute the time-dependent acceleration using the transfer function *H*(*z*) to filter the input. Plot the result.

[b,a] = ss2tf(A,B,C,D); yt = filter(b,a,u); stem(t,yt,'filled') xlabel('t')

The transfer function of the system has an analytic expression:

$$H(z)=\frac{1-{z}^{-1}(1+\mathrm{cos}\Delta t)+{z}^{-2}\mathrm{cos}\Delta t}{1-2{z}^{-1}\mathrm{cos}\Delta t+{z}^{-2}}.$$

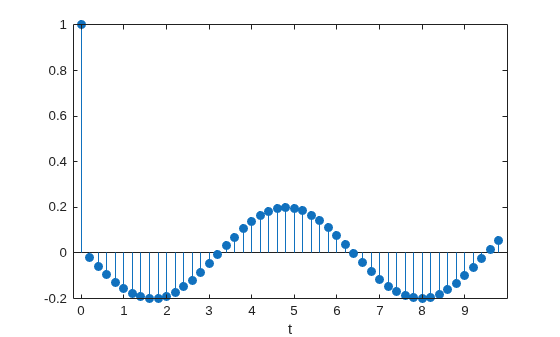

Use the expression to filter the input. Plot the response.

bf = [1 -(1+cos(dt)) cos(dt)]; af = [1 -2*cos(dt) 1]; yf = filter(bf,af,u); stem(t,yf,'filled') xlabel('t')

The result is the same in all three cases.

### Two-Body Oscillator

An ideal one-dimensional oscillating system consists of two unit masses, $${m}_{1}$$ and $${m}_{2}$$, confined between two walls. Each mass is attached to the nearest wall by a spring of unit elastic constant. Another such spring connects the two masses. Sensors sample $${a}_{1}$$ and $${a}_{2}$$, the accelerations of the masses, at $${F}_{s}=16$$ Hz.

Specify a total measurement time of 16 s. Define the sampling interval $$\Delta t=1/{F}_{s}$$.

Fs = 16; dt = 1/Fs; N = 257; t = dt*(0:N-1);

The system can be described by the state-space model

$$\begin{array}{c}x(n+1)=Ax(n)+Bu(n),\\ y(n)=Cx(n)+Du(n),\end{array}$$

where $$x={\left(\begin{array}{cccc}{r}_{1}& {v}_{1}& {r}_{2}& {v}_{2}\end{array}\right)}^{T}$$ is the state vector and $${r}_{i}$$ and $${v}_{i}$$ are respectively the location and the velocity of the $$i$$th mass. The input vector $$u={\left(\begin{array}{cc}{u}_{1}& {u}_{2}\end{array}\right)}^{T}$$ and the output vector $$y={\left(\begin{array}{cc}{a}_{1}& {a}_{2}\end{array}\right)}^{T}$$. The state-space matrices are

$$A=\mathrm{exp}({A}_{c}\Delta t),\phantom{\rule{1em}{0ex}}B={A}_{c}^{-1}(A-I){B}_{c},\phantom{\rule{1em}{0ex}}C=\left(\begin{array}{cccc}-2& 0& 1& 0\\ 1& 0& -2& 0\end{array}\right),\phantom{\rule{1em}{0ex}}D=I,$$

the continuous-time state-space matrices are

$${A}_{c}=\left(\begin{array}{cccc}0& 1& 0& 0\\ -2& 0& 1& 0\\ 0& 0& 0& 1\\ 1& 0& -2& 0\end{array}\right),\phantom{\rule{1em}{0ex}}{B}_{c}=\left(\begin{array}{cc}0& 0\\ 1& 0\\ 0& 0\\ 0& 1\end{array}\right),$$

and $$I$$ denotes an identity matrix of the appropriate size.

Ac = [0 1 0 0; -2 0 1 0; 0 0 0 1; 1 0 -2 0]; A = expm(Ac*dt); Bc = [0 0; 1 0; 0 0; 0 1]; B = Ac\(A-eye(4))*Bc; C = [-2 0 1 0; 1 0 -2 0]; D = eye(2);

The first mass, $${m}_{1}$$, receives a unit impulse in the positive direction.

ux = [1 zeros(1,N-1)]; u0 = zeros(1,N); u = [ux;u0];

Use the model to compute the time evolution of the system starting from an all-zero initial state.

x = [0 0 0 0]'; y = zeros(2,N); for k = 1:N y(:,k) = C*x + D*u(:,k); x = A*x + B*u(:,k); end

Plot the accelerations of the two masses as functions of time.

stem(t,y','.') xlabel('t') legend('a_1','a_2') title('Mass 1 Excited') grid

Convert the system to its transfer function representation. Find the response of the system to a positive unit impulse excitation on the first mass.

[b1,a1] = ss2tf(A,B,C,D,1); y1u1 = filter(b1(1,:),a1,ux); y1u2 = filter(b1(2,:),a1,ux);

Plot the result. The transfer function gives the same response as the state-space model.

stem(t,[y1u1;y1u2]','.') xlabel('t') legend('a_1','a_2') title('Mass 1 Excited') grid

The system is reset to its initial configuration. Now the other mass, $${m}_{2}$$, receives a unit impulse in the positive direction. Compute the time evolution of the system.

u = [u0;ux]; x = [0;0;0;0]; for k = 1:N y(:,k) = C*x + D*u(:,k); x = A*x + B*u(:,k); end

Plot the accelerations. The responses of the individual masses are switched.

stem(t,y','.') xlabel('t') legend('a_1','a_2') title('Mass 2 Excited') grid

Find the response of the system to a positive unit impulse excitation on the second mass.

[b2,a2] = ss2tf(A,B,C,D,2); y2u1 = filter(b2(1,:),a2,ux); y2u2 = filter(b2(2,:),a2,ux);

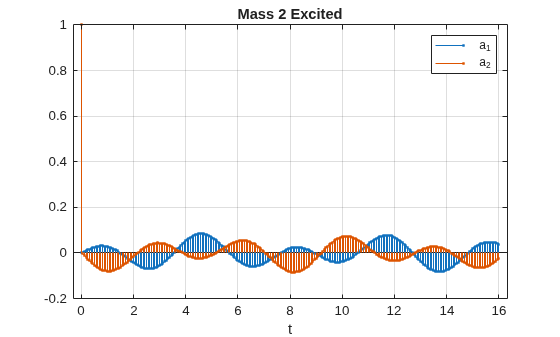

Plot the result. The transfer function gives the same response as the state-space model.

stem(t,[y2u1;y2u2]','.') xlabel('t') legend('a_1','a_2') title('Mass 2 Excited') grid

## Input Arguments

`A`

— State matrix

matrix

State matrix, specified as a matrix. If the system has *p* inputs
and *q* outputs and is described by *n* state
variables, then `A`

is *n*-by-*n*.

**Data Types: **`single`

| `double`

`B`

— Input-to-state matrix

matrix

Input-to-state matrix, specified as a matrix. If the system
has *p* inputs and *q* outputs and
is described by *n* state variables, then `B`

is *n*-by-*p*.

**Data Types: **`single`

| `double`

`C`

— State-to-output matrix

matrix

State-to-output matrix, specified as a matrix. If the system
has *p* inputs and *q* outputs and
is described by *n* state variables, then `C`

is *q*-by-*n*.

**Data Types: **`single`

| `double`

`D`

— Feedthrough matrix

matrix

Feedthrough matrix, specified as a matrix. If the system has *p* inputs
and *q* outputs and is described by *n* state
variables, then `D`

is *q*-by-*p*.

**Data Types: **`single`

| `double`

`ni`

— Input index

1 (default) | integer scalar

Input index, specified as an integer scalar. If the system has *p* inputs,
use `ss2tf`

with a trailing argument `ni`

= 1, …, *p* to
compute the response to a unit impulse applied to the `ni`

th
input.

**Data Types: **`single`

| `double`

## Output Arguments

`b`

— Transfer function numerator coefficients

vector | matrix

Transfer function numerator coefficients, returned as a vector
or matrix. If the system has *p* inputs and *q* outputs
and is described by *n* state variables, then `b`

is *q*-by-(*n* + 1) for each input. The coefficients
are returned in descending powers of *s* or *z*.

`a`

— Transfer function denominator coefficients

vector

Transfer function denominator coefficients, returned as a vector.
If the system has *p* inputs and *q* outputs
and is described by *n* state variables, then `a`

is
1-by-(*n* + 1)
for each input. The coefficients are returned in descending powers
of *s* or *z*.

## More About

### Transfer Function

For discrete-time systems, the state-space matrices relate the state vector

*x*, the input*u*, and the output*y*through$$\begin{array}{c}x(k+1)=\text{A}\text{\hspace{0.17em}}x(k)+\text{B}\text{\hspace{0.17em}}u(k)\\ y(k)=\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{C}\text{\hspace{0.17em}}x(k)+\text{D}\text{\hspace{0.17em}}u(k).\end{array}$$

The transfer function is the Z-transform of the system’s impulse response. It can be expressed in terms of the state-space matrices as

$$\text{H}(z)\text{=C}{(z\text{I}-\text{A})}^{-1}\text{B}+\text{D}.$$

For continuous-time systems, the state-space matrices relate the state vector

*x*, the input*u*, and the output*y*through$$\begin{array}{l}\dot{x}=\text{A}\text{\hspace{0.17em}}x+\text{B}\text{\hspace{0.17em}}u\\ y=\text{C}\text{\hspace{0.17em}}x+\text{D}\text{\hspace{0.17em}}u.\end{array}$$

The transfer function is the Laplace transform of the system’s impulse response. It can be expressed in terms of the state-space matrices as

$$\text{H}(s)=\text{C}{(s\text{I}-\text{A})}^{-1}\text{B}+\text{D}.$$

## Version History

**Introduced before R2006a**
