Complementary error function




erfc(x) returns the Complementary Error Function evaluated for each element of x. Use the erfc function to replace 1 - erf(x) for greater accuracy when erf(x) is close to 1.


collapse all

Find the complementary error function of a value.

ans = 0.6206

Find the complementary error function of the elements of a vector.

V = [-0.5 0 1 0.72];
ans = 1×4

    1.5205    1.0000    0.1573    0.3086

Find the complementary error function of the elements of a matrix.

M = [0.29 -0.11; 3.1 -2.9];
ans = 2×2

    0.6817    1.1236
    0.0000    2.0000

The bit error rate (BER) of binary phase-shift keying (BPSK), assuming additive white Gaussian noise (AWGN), is

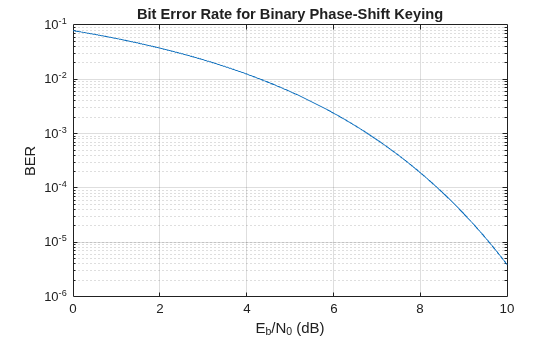

Plot the BER for BPSK for values of Eb/N0 from 0dB to 10dB.

EbN0_dB = 0:0.1:10;
EbN0 = 10.^(EbN0_dB/10);
BER = 1/2.*erfc(sqrt(EbN0));
grid on
xlabel('E_b/N_0 (dB)')
title('Bit Error Rate for Binary Phase-Shift Keying')

You can use the complementary error function erfc in place of 1 - erf(x) to avoid round-off errors when erf(x) is close to 1.

Show how to avoid round-off errors by calculating 1 - erf(10) using erfc(10). The original calculation returns 0 while erfc(10) returns the correct result.

1 - erf(10)
ans = 0
ans = 2.0885e-45

Input Arguments

collapse all

Input, specified as a real number, or a vector, matrix, or multidimensional array of real numbers. x cannot be sparse.

Data Types: single | double

More About

collapse all

Complementary Error Function

The complementary error function of x is defined as


It is related to the error function as



  • You can also find the standard normal probability distribution using the function normcdf (Statistics and Machine Learning Toolbox). The relationship between the error function erfc and normcdf is


  • For expressions of the form 1 - erfc(x), use the error function erf instead. This substitution maintains accuracy. When erfc(x) is close to 1, then 1 - erfc(x) is a small number and might be rounded down to 0. Instead, replace 1 - erfc(x) with erf(x).

  • For expressions of the form exp(x^2)*erfc(x), use the scaled complementary error function erfcx instead. This substitution maintains accuracy by avoiding roundoff errors for large values of x.

Extended Capabilities

Version History

Introduced before R2006a
