cylinder

Create cylinder

Description

example

[X,Y,Z] = cylinder returns the x-, y-, and z- coordinates of a cylinder without drawing it. The returned cylinder has a radius equal to 1, 20 equally spaced points around its circumference, and bases parallel to the xy-plane.

The function returns the x-, y-, and z- coordinates as three 21-by-21 matrices.

To draw the cylinder using the returned coordinates, use the surf or mesh functions.

example

[X,Y,Z] = cylinder(r) returns the x-, y-, and z- coordinates of a cylinder with the specified profile curve, r, and 20 equally spaced points around its circumference. The function treats each element in r as a radius at equally spaced heights along the unit height of the cylinder.

[X,Y,Z] = cylinder(r,n) returns the x-, y-, and z- coordinates of a cylinder with the specified profile curve, r, and n equally spaced points around its circumference. The function returns the x-, y-, and z- coordinates as three (n+1)-by-(n+1) matrices.

example

cylinder(___) plots the cylinder without returning the coordinates. Use this syntax with any of the input arguments in previous syntaxes.

cylinder(ax,___) plots into the axes specified by ax instead of the current axes. Specify the axes as the first input argument.

Examples

collapse all

Create and plot a cylinder with a radius equal to 1.

cylinder

Specify the radius of a cylinder by including the input r. Then, specify the height of the cylinder by modifying the returned Z coordinate.

Define X, Y, and Z as coordinates of a cylinder with a radius of 4.

r = 4;
[X,Y,Z] = cylinder(r);

Specify a height of 20 by modifying the Z coordinate. Plot the cylinder.

h = 20;
Z = Z*h;
surf(X,Y,Z)

Create a cylinder and use the returned coordinates to plot multiple cylinders in different locations.

Create a cylinder defined by the profile function 2 + cos(t).

t = 0:pi/10:2*pi;
r = 2 + cos(t);
[X,Y,Z] = cylinder(r);

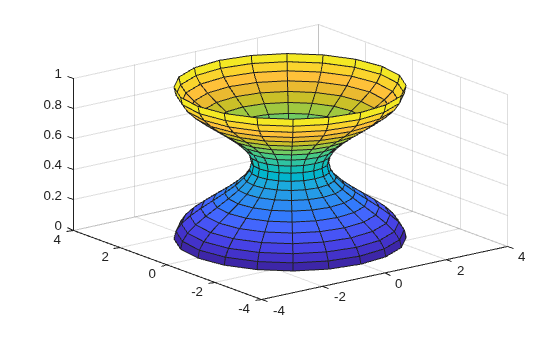

Plot the cylinder with the base centered at the origin.

surf(X,Y,Z)

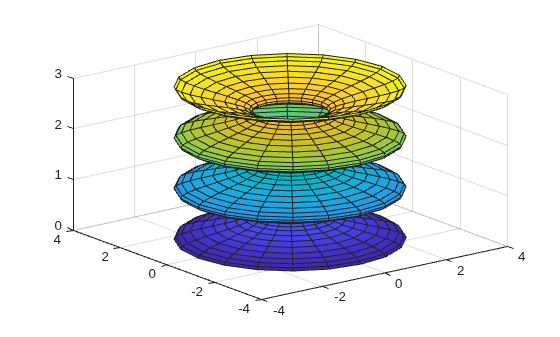

Plot two more cylinders on top of the first cylinder.

hold on
surf(X,Y,Z+1)
surf(X,Y,Z+2)

Input Arguments

collapse all

Profile curve, specified as a vector. cylinder treats each element in r as a radius at equally spaced heights along the unit height of the cylinder.

Number of points around the cylinder circumference, specified as a positive whole number.

Target axes, specified as an Axes object. If you do not specify the axes, then cylinder plots into the current axes.

See Also

| | |

Introduced before R2006a
