besselk
Modified Bessel function of second kind
Description
K = besselk(
computes the modified Bessel function
of the second kind
Kν(z) for each element in array nu
,Z
)Z
.
Examples

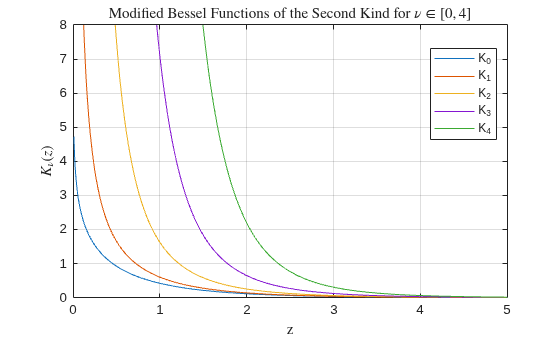

Plot Modified Bessel Functions of Second Kind
Define the domain.
z = 0:0.01:5;
Calculate the first five modified Bessel functions of the second kind. Each row of K
contains the values of one order of the function evaluated at the points in z
.
K = zeros(5,501); for i = 0:4 K(i+1,:) = besselk(i,z); end
Plot all of the functions in the same figure.
plot(z,K) axis([0 5 0 8]) grid on legend('K_0','K_1','K_2','K_3','K_4','Location','Best') title('Modified Bessel Functions of the Second Kind for $\nu \in [0,4]$','interpreter','latex') xlabel('z','interpreter','latex') ylabel('$K_\nu(z)$','interpreter','latex')

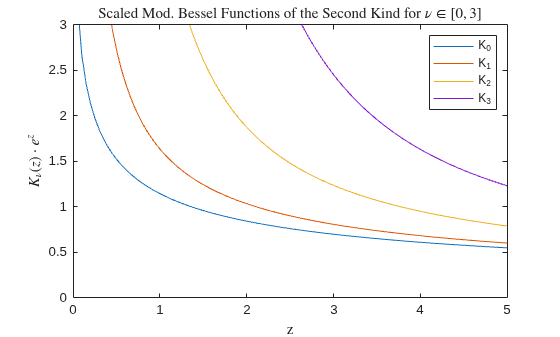

Calculate Exponentially Scaled Modified Bessel Functions
Calculate the scaled modified Bessel functions of the second kind for values of in the interval and for orders of between 0 and 3.
z = linspace(0,5); scale = 1; Ks = zeros(4,100); for nu = 0:3 Ks(nu+1,:) = besselk(nu,z,scale); end
Plot all of the functions in the same figure. For large values of , the scaled functions do not underflow the limits of double precision as quickly as the unscaled functions, extending their range of computability.
plot(z,Ks) ylim([0 3]) legend('K_0','K_1','K_2','K_3') title('Scaled Mod. Bessel Functions of the Second Kind for $\nu \in \left[0, 3 \right]$','interpreter','latex') xlabel('z','interpreter','latex') ylabel('$K_\nu(z) \cdot e^{z}$','interpreter','latex')
Input Arguments
nu
— Equation order
scalar | vector | matrix | multidimensional array
Equation order, specified as a scalar, vector, matrix, or multidimensional array.
nu
is a real number that specifies the order of the modified Bessel
function of the second kind. nu
and Z
must be the same size, or one of them can be scalar.
Example: besselk(3,Z)
Data Types: single
| double
Z
— Functional domain
scalar | vector | matrix | multidimensional array
Functional domain, specified as a scalar, vector, matrix, or multidimensional array.
besselk
is real-valued where Z
is positive.
nu
and Z
must be the same size, or one of them
can be scalar.
Example: besselk(nu,0:3)
Data Types: single
| double
Complex Number Support: Yes
scale
— Toggle to scale function
0
(default) | 1
Toggle to scale function, specified as one of these values:
0
(default) — No scaling1
— Scale the output ofbesselk
byexp(Z)
The value of besselk
decreases rapidly as the value
of Z
increases, so exponentially scaling the output is useful for
large values of Z
where the results otherwise quickly lose accuracy
or underflow the limits of double precision.
Example: besselk(nu,Z,1)
More About
Modified Bessel Functions
This differential equation, where ν is a real constant, is called the modified Bessel's equation:
Its solutions are known as modified Bessel functions.
The modified Bessel functions of the first kind, denoted Iν(z) and I–ν(z), form a fundamental set of solutions of the modified Bessel's equation. Iν(z) is defined by
You can compute the modified Bessel functions of the first kind using besseli
.
The modified Bessel functions of the second kind, denoted Kν(z), form a second solution independent of Iν(z) given by
References
[1] Amos, D. E. “Algorithm 644: A Portable Package for Bessel Functions of a Complex Argument and Nonnegative Order.” ACM Transactions on Mathematical Software 12, no. 3 (September 1986): 265–273. https://dl.acm.org/doi/10.1145/7921.214331.
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
besselk
function fully supports tall arrays. For more information,
see Tall Arrays.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Always returns a complex result.
Strict single-precision calculations are not supported. In the generated code, single-precision inputs produce single-precision outputs. However, variables inside the function might be double-precision.
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Usage notes and limitations:
Always returns a complex result.
Strict single-precision calculations are not supported. In the generated code, single-precision inputs produce single-precision outputs. However, variables inside the function might be double-precision.
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The besselk
function
supports GPU array input with these usage notes and limitations:
The order
nu
must contain nonnegative real values.The argument
Z
must contain nonnegative real values.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006a
