addpoints

Add points to animated line

Syntax

addpoints(an,x,y)

addpoints(an,x,y,z)

Description

addpoints(an,x,y) adds points defined by x and y to the animated line specified by an. Create an animated line with the animatedline function. To display the updates on the screen, use drawnow or drawnow limitrate. New points automatically connect to previous points.

addpoints(an,x,y,z) adds points defined by x, y, and z to the 3-D animated line specified by an.

Examples

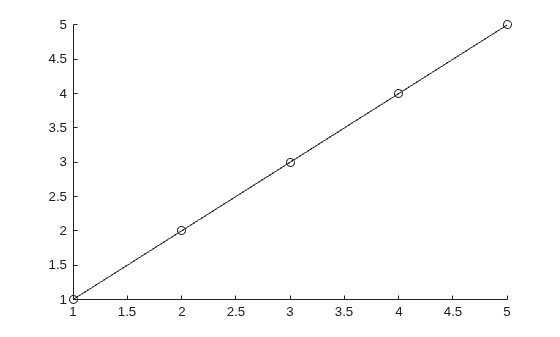

Add Five Points to Animated Line

Create an animated line object with no data. Then, add five points to the line. Use a circle to mark each point.

h = animatedline('Marker','o');
x = 1:5;
y = 1:5;
addpoints(h,x,y)

Specify Datetime and Duration Values

To plot nonnumeric points, such as datetime and duration values, start by initializing the animated line with values of the type you want to plot. You can specify either the first point in your plot or placeholder values such as NaT or NaN.

For example, plot datetime values on the x-axis and duration values (minutes) on the y-axis. Initialize the animated line with a NaT value and a minutes(NaN) value. Then create a datetime vector (x) and a duration vector (y) and add the points in those vectors to the animated line.

an = animatedline(NaT,minutes(NaN),"Marker","o");
x = datetime(2018,5,1:5);
y = minutes([1 7 3 11 4]);
addpoints(an,x,y)

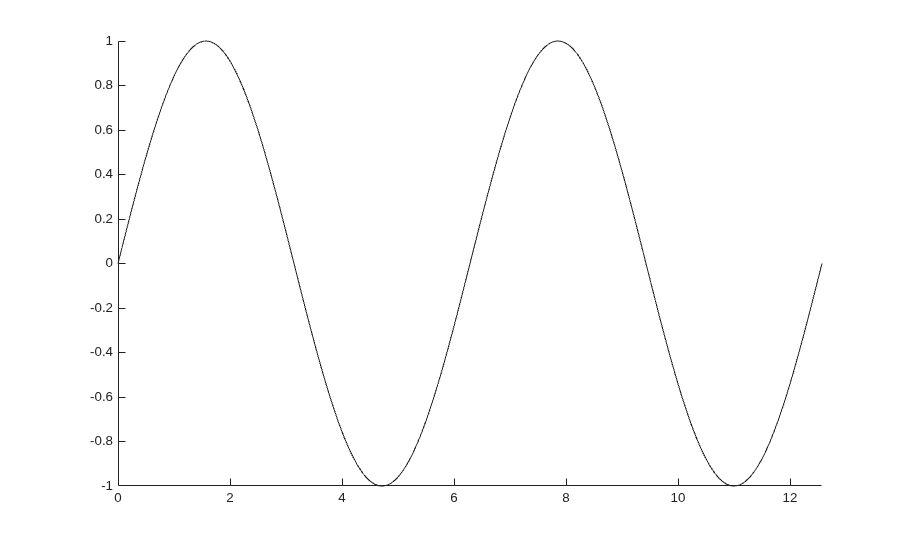

Add Points Within Loop to Animated Line

Create an animated line using the animatedline function. Then, add points to the line within a loop to create an animation. Set the axis limits before the loop to prevent the limits from changing.

figure
h = animatedline;
axis([0 4*pi -1 1])

for x = linspace(0,4*pi,10000)
    y = sin(x);
    addpoints(h,x,y)
    drawnow limitrate
end

Input Arguments

an — AnimatedLine object

AnimatedLine object

AnimatedLine object. Create an AnimatedLine object using the animatedline function.

x — First coordinate values

scalar | vector

First coordinate values, specified as a scalar or a vector. For Cartesian axes, the first coordinate is x-axis position. For geographic axes, the first coordinate is latitude in degrees.

The length of x must equal the length of y.

Example: 11:20

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | datetime | duration

y — Second coordinate values

scalar | vector

Second coordinate values, specified as a scalar or a vector. For Cartesian axes, the second coordinate is y-axis position. For geographic axes, the second coordinate is longitude in degrees.

The length of y must equal the length of x.

Example: 11:20

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | datetime | duration

z — Third coordinate values

scalar | vector

Third coordinate values, specified as a scalar or a vector. For Cartesian axes, the third coordinate is z-axis position.

The length of z must equal the length of x and y.

Example: 11:20

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | datetime | duration

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The addpoints function supports GPU array input with these usage notes and limitations:

• This function accepts GPU arrays, but does not run on a GPU.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• This function operates on distributed arrays, but executes in the client MATLAB^®.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced in R2014b

R2023a: Specify single, double, integer, datetime, or duration coordinates

Add points to animated lines using single, double, integer, datetime, or duration data for the x-, y-, and z-coordinates.
