This example shows how to highlight contours at particular levels.
Z as the matrix returned from the
Z = peaks(100);
Round the minimum and maximum data values in
Z and store these values in
zmax, respectively. Define
zlevs as 40 values between
zmin = floor(min(Z(:))); zmax = ceil(max(Z(:))); zinc = (zmax - zmin) / 40; zlevs = zmin:zinc:zmax;

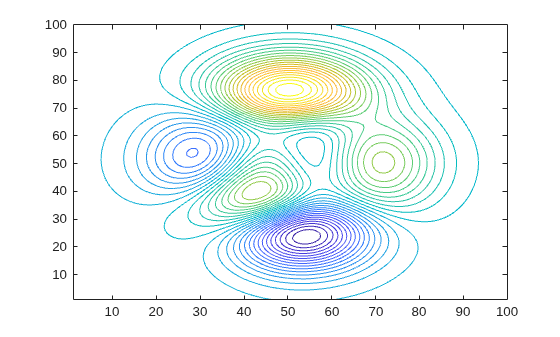

Plot the contour lines.
zindex as a vector of integer values between
zmax indexed by 2.
zindex = zmin:2:zmax;

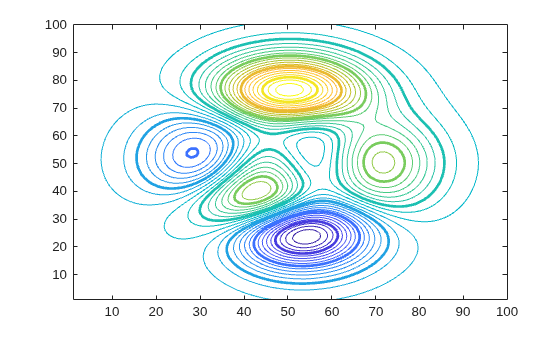

Retain the previous contour plot. Create a second contour plot and use
zindex to highlight contour lines at every other integer value. Set the line width to 2.
hold on contour(Z,zindex,'LineWidth',2) hold off
