WMSLayer

Web Map Service layer

Description

A WMSLayer object describes a Web Map Service (WMS) layer or layers.

Creation

You can create a WMSLayer object using any of the following methods:

  • wmsfind — Returns a WMSLayer array.

  • wmsinfo — Returns a WMSCapabilities object, which contains an array of WMSLayer objects in its Layer property.

  • The WMSLayer object creation function, described here.

Description

example

layers = WMSLayer(Name,Value) constructs a WMSLayer object, where Name is the name of any property of the WMSLayer and Value is the value that you want to assign to the property. You can specify several name-value pair arguments in any order as Name1,Value1,...,NameN,ValueN. The size of the output layers is scalar unless all inputs are cell arrays, in which case, the size of layers matches the size of the cell arrays.

Properties

expand all

This property is read-only.

Descriptive information about the server, returned as a character vector.

Data Types: char

This property is read-only.

URL of WMS Server, returned as a character vector.

Data Types: char

This property is read-only.

Descriptive information about the layer, returned as a character vector. The LayerTitle clarifies the meaning of the raster values of the layer.

Data Types: char

This property is read-only.

Keyword the server uses to retrieve the layer, returned as a character vector.

Data Types: char

Latitude limits of the layer in units of degrees, specified as a two-element numeric vector. The limits specify the southern and northern latitude limits and must be in units of degrees and in the range [-90, 90].

Data Types: double

Longitude limits of the layer in units of degrees, specified as a two-element numeric vector. The limits specify the western and eastern longitude limits and must be ascending and in the range [-180, 180] or [0, 360].

Data Types: double

This property is read-only.

Information about the layer, returned as a character vector.

Data Types: char

This property is read-only.

Codes identifying available coordinate reference systems, returned as a cell array of character vectors.

Data Types: cell

This property is read-only.

Detailed information about the layer, returned as a structure containing these fields:

FieldDescription
MetadataURL

URL containing metadata information about the layer, returned as a character vector.

Attributes

Attributes of the layer, returned as a structure array containing these fields.

  • Queryable — Logical 1 (true) when you can query the layer for feature information, and logical 0 (false) otherwise.

  • Cascaded — Number of times a Cascading Map server has retransmitted the layer, returned as a double value.

  • Opaque — Logical 1 (true) when the map data is mostly or completely opaque, and logical 0 (false) otherwise.

  • NoSubsets — Logical 1 (true) when the map must contain the full bounding box, and logical 0 (false) when the map can be a subset of the full bounding box.

  • FixedWidth — Logical 1 (true) when the map has a fixed width that the server cannot change, and logical 0 (false) when the server can resize the map to an arbitrary width.

  • FixedHeight — Logical 1 (true) when the map has a fixed height that the server cannot change, and logical 0 (false) when the server can resize the map to an arbitrary height.

BoundingBox

Bounding box of the layer, returned as a structure array containing these fields.

  • CoordRefSysCode — Code number for the coordinate reference system, returned as a character vector.

  • XLimx-limits of the layer in units of the coordinate reference system, returned as a double array.

  • YLimy-limits of the layer in units of the coordinate reference system, returned as a double array.

Dimension

Dimension parameters, returned as a structure array containing these fields. Examples of dimensions include time, elevation, and temperature.

  • Name — Name of the dimension, returned as a character vector.

  • Units — Measurement unit for the dimension, returned as a character vector.

  • UnitSymbol — Symbol for the measurement unit, returned as a character vector.

  • Extent — Dimension values, returned as a character vector in one of these forms.

    • 'v' — A single value, for example '2002-01-01'.

    • 'v1,v2,...,vN' — A list of values, for example '2002-01-01,2002-02-01,2002-03-01'.

    • 'min/max/res' — An interval defined by the minimum and maximum bounds min and max, respectively, and the resolution res, for example '2002-01-01/2002-12-31/P1D'.

    • 'min1/max1/res1,min2/max2/res2,...,minN/maxN/resN' — A list of intervals, for example '2002-01-01/2002-12-31/P1D,2003-01-01/2003-12-31/P1D,2004-01-01/2004-12-31/P1D'.

  • Default — Default dimension value for the wmsread function to use, returned as a character vector. For example, when the value of Name is 'time', by default, the wmsread function reads data from the layer using the time contained in this field. To read data from the layer using a different time, use wmsread and specify the Time name-value argument.

  • MultipleValues — Logical 1 (true) if you can request dimension values, and logical 0 (false) if you can request only one value.

  • NearestValue — Logical 1 (true) if the server returns the nearest dimension value in response to a request for a nearby value, and logical 0 (false) if the value must match a value in the Extent field.

  • Current — Logical 1 (true) if the temporal data is kept current, and logical 0 (false) otherwise. This field is valid for temporal extents only.

ImageFormats

Image formats supported by the server, returned as a cell array of character vectors.

ScaleLimits

Scale limits of the layer, returned as a structure containing these fields.

  • ScaleHint — Minimum and maximum values that are appropriate for displaying the layer, returned as a double array. These values express the scale as ground distance, in meters, represented by the diagonal of the central pixel in the image.

  • MinScaleDenominator — Minimum scale denominator of maps for which a layer is appropriate, returned as a double value.

  • MaxScaleDenominator — Maximum scale denominator of maps for which a layer is appropriate, returned as a double value.

Style

Style parameters that determine layer rendering, returned as a structure array containing these fields.

  • Title — Descriptive title of the style, returned as a character vector.

  • Name — Name of the style, returned as a character vector.

  • Abstract — Information about the style, returned as a character vector.

  • LegendURL — Information about the legend graphics, returned as a structure containing these fields.

    • OnlineResource — URL of the legend graphics, returned as a character vector.

    • Format — Format of the legend graphics, returned as a character vector.

    • Height — Height of the legend graphics, returned as a double value.

    • Width — Width of the legend graphics, returned as a double value.

Version

WMS version specification, returned as a character vector.

Data Types: struct

Object Functions

disp Display properties of WMS layers or capabilities
refineRefine search of WMS layers
refineLimits Refine search of WMS layers based on geographic limits
servers Return URLs of unique WMS servers
serverTitles Return titles of unique WMS servers

Examples

collapse all

Specify the server URL. These values are typically found during an Internet search. The WMSLayer ServerURL value is obtained from the host and path of the request URL. The WMSLayer LayerName value is obtained from the LAYERS value in the query part of the URL.

host = "www.mrlc.gov";
path = "/geoserver/NLCD_Land_Cover/wms?";
serverURL = "https://" + host + path;
requestURL = serverURL + "SERVICE=WMS&FORMAT=image/jpeg&REQUEST=GetMap&" + ...
  "STYLES=&SRS=EPSG:4326&VERSION=1.1.1&LAYERS=mrlc_display:NLCD_2016_Land_Cover_L48&" + ...
  "WIDTH=1024&HEIGHT=470&BBOX=-128,23,-65,51";
layerName = "mrlc_display:NLCD_2016_Land_Cover_L48";

Construct the WMSLayer object by using the serverURL variable and the value of the WMS LAYERS parameter.

layer = WMSLayer(ServerURL=serverURL,LayerName=layerName);

Use the wmsupdate function to get the other properties of the WMSLayer array from the server.

layer = wmsupdate(layer);
layer.Lonlim = [-180 180];

Retrieve an image from the WMS server using layer and parameter values from the WMS GetMap request URL. Set latitude and longitude limits from the BBOX request value. Set image height and width values from the WIDTH and HEIGHT request values.

lonlim = [-128 -65];
latlim = [23 51];
height = 470;
width = 1024;
[A,R] = wmsread(layer,Latlim=latlim,Lonlim=lonlim, ...
       ImageHeight=height,ImageWidth=width);

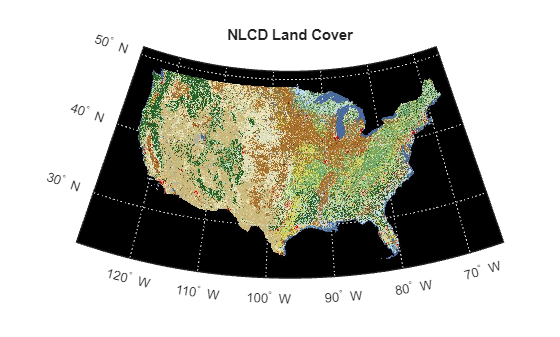

Display the image from the server.

figure
usamap(A,R)
geoshow(A,R)
title("NLCD Land Cover")

This image can also be retrieved using the WMS requestURL.

[A,R] = wmsread(requestURL);

Version History

Introduced in R2009b
