# imregmtb

Register 2-D images using median threshold bitmaps

## Syntax

``[R1,R2,...,Rn,shift] = imregmtb(M1,M2,...,Mn,F)``

## Description

example

````[R1,R2,...,Rn,shift] = imregmtb(M1,M2,...,Mn,F)` registers an arbitrary number of moving images `M1,M2,...,Mn` with respect to the fixed (reference) image, `F`, using the median threshold bitmap technique. The registered images are returned in `R1,R2,...,Rn`, and the estimated displacement of the registered images is returned in `shift`.The median threshold bitmap technique is effective for registering images captured with variable exposures. `imregmtb` considers only translations, not rotations or other types of geometric transformations.```

## Examples

collapse all

Read a series of images with different exposures.

```I1 = imread('office_1.jpg'); I2 = imread('office_2.jpg'); I3 = imread('office_3.jpg'); I4 = imread('office_4.jpg'); I5 = imread('office_5.jpg'); I6 = imread('office_6.jpg');```

The images were captured from a fixed camera, and there are no moving objects in the scene. For this example, simulate camera motion, or jitter, by translating each image horizontally and vertically by a random amount in the range [–30, 30] pixels. Store the translation values for all five moving images in the 5-by-2 matrix `t`. Designate the sixth image, `I6`, as the fixed (or reference) image. Do not apply jitter to this image.

```t = randi([-30 30],5,2); I1 = imtranslate(I1,t(1,:)); I2 = imtranslate(I2,t(2,:)); I3 = imtranslate(I3,t(3,:)); I4 = imtranslate(I4,t(4,:)); I5 = imtranslate(I5,t(5,:));```

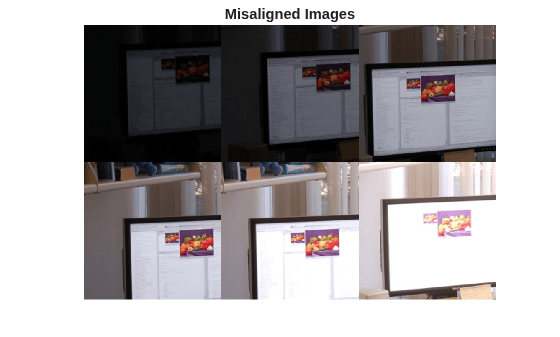

To compare the image positions, display a region of interest (ROI) from the center of each image. The vector `roi` specifies the x- and y-coordinate of the top left corner, and the width and height of the ROI.

```roi = [140 260 200 200]; montage({imcrop(I1,roi),imcrop(I2,roi),imcrop(I3,roi), ... imcrop(I4,roi),imcrop(I5,roi),imcrop(I6,roi)}) title('Misaligned Images')```

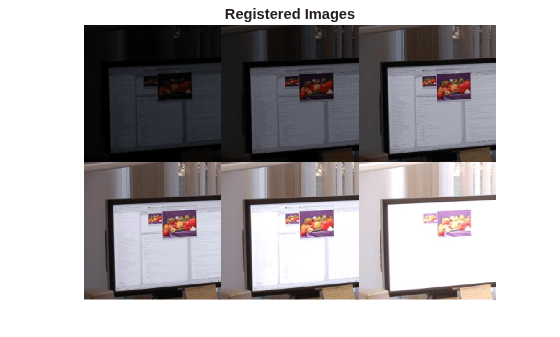

Register the spatially shifted images using median threshold bitmaps. Display an ROI from the center of each image.

```[R1,R2,R3,R4,R5,shift] = imregmtb(I1,I2,I3,I4,I5,I6); montage({imcrop(R1,roi),imcrop(R2,roi),imcrop(R3,roi), ... imcrop(R4,roi),imcrop(R5,roi),imcrop(I6,roi)}) title('Registered Images')```

The images look well-aligned.

Examine the estimated displacement, `shift`, of each moving image with respect to the fixed image. `shift` represents the estimated transformation that must be applied to the moving image to align it with the fixed image.

`shift`
```shift = 5×2 -26 25 -25 14 23 -3 -25 -28 -8 -28 ```

Compare the estimated displacement to the actual displacement. Recall that the transformation `t` was applied to the fixed image to simulate the jitter of each moving image. Therefore, the transformation `-t` is analogous to the transformation returned by `shift`.

`-t`
```ans = 5×2 -19 25 -25 14 23 -3 -25 -28 -8 -28 ```

The `imregmtb` function does a good job estimating the displacement of each frame.

## Input Arguments

collapse all

Moving images, specified as a series of grayscale images or RGB images with identical or variable exposures. The images must have the same size and data type.

Data Types: `single` | `double` | `uint8` | `uint16`

Fixed image, specified as a grayscale image or RGB image. `F` must have the same size and data type as the moving images, `M1,M2,...,Mn`.

Data Types: `single` | `double` | `uint8` | `uint16`

## Output Arguments

collapse all

Registered images, returned as a series of grayscale images or RGB images. The registered images have the same size and data type as the moving images, `M1,M2,...,Mn`.

Estimated displacement in the horizontal and vertical direction of the n registered images, returned as an n-by-2 numeric matrix.

## References

[1] Reinhard, E., W. Heidrich, P. Debevec, S. Pattanaik, G. Ward, K. Myszkowski. High Dynamic Range Imaging, Second Edition. San Francisco, CA: Morgan Kaufmann Publishers Inc., 2010, pp. 155–170.
