Brighten low-light image



B = imlocalbrighten(A) brightens low-light areas in RGB or grayscale image A.

B = imlocalbrighten(A,amount) brightens low-light areas in A by a specified amount.

B = imlocalbrighten(___,'AlphaBlend',alphaBlend) also specifies whether to preserve bright areas of the input image by performing alpha blending.

[B,D] = imlocalbrighten(___) also returns the darkness estimate D of each pixel in the input image.


collapse all

Read a low-light image into the workspace.

A = imread('lowlight_2.jpg');

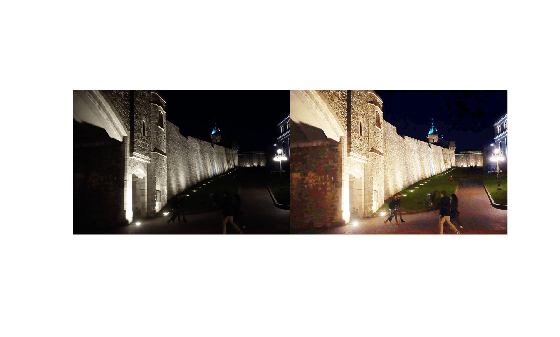

Brighten the low-light image using default parameters. Display the original and brightened image side-by-side in a montage.

B = imlocalbrighten(A);

Figure contains an axes object. The axes object contains an object of type image.

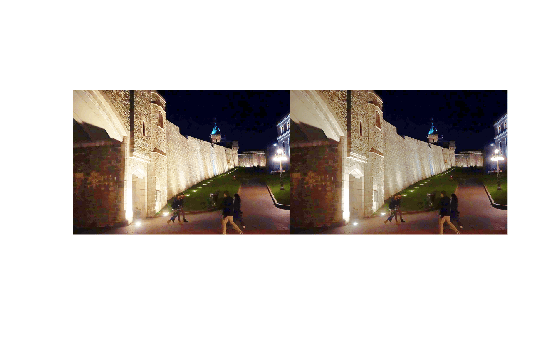

Brighten the low-light image again, this time specifying the amount of lightening to apply to the image. Display the two brightened images side-by-side in a montage.

B2 = imlocalbrighten(A,0.8);

Figure contains an axes object. The axes object contains an object of type image.

Use the AlphaBlend option to preserve content from the original image in the lightened image. View the lightened output image from the first example with the alpha blended output image. Compare the detail shown in the wall above arched entryway near the center of the image in the alpha-blended version with the original lightened image.

Bblend = imlocalbrighten(A,'AlphaBlend',true);

Figure contains an axes object. The axes object contains an object of type image.

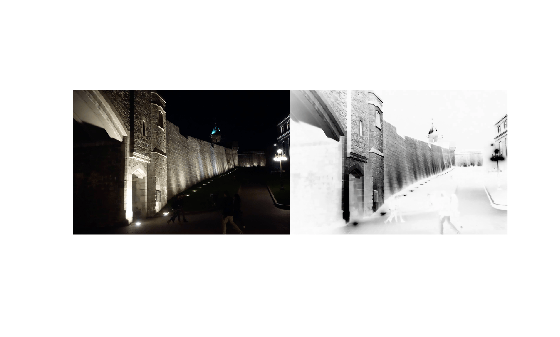

Get the estimated darkness-per-pixel matrix return value. View the original image and the darkness estimate matrix.

[~,D] = imlocalbrighten(A);

Figure contains an axes object. The axes object contains an object of type image.

Input Arguments

collapse all

Image to be brightened, specified as an RGB image or grayscale image.

Data Types: single | double | uint8 | uint16

Amount to brighten the image, specified as a number in the range [0, 1]. When the value is 1 (the default), imlocalbrighten brightens the low-light areas of A as much as possible. When the value is 0, imlocalbrighten returns the input image unmodified.

Example: 0.2

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Alpha blend input and enhanced image, specified as false or true. Alpha blending combines the input image with the enhanced image to preserve brighter areas of the input image. When true, imlocalbrighten uses the estimate of darkness matrix, D, to preserve content of the input image proportional to the amount of light in each pixel.

Output Arguments

collapse all

Brightened image, returned as a numeric array of the same size and data type as the input image A.

Darkness estimate of each pixel in the input image, returned as a numeric matrix. D is the same size as the first two dimensions of the input image.

Data Types: double


[1] Dong, X., G. Wang, Y. Pang, W. Li, J. Wen, W. Meng, and Y. Lu. "Fast efficient algorithm for enhancement of low lighting video." Proceedings of IEEE® International Conference on Multimedia and Expo (ICME). 2011, pp. 1–6.

[2] He, Kaiming. "Single Image Haze Removal Using Dark Channel Prior." Thesis, The Chinese University of Hong Kong, 2011.

[3] Dubok Park; Hyungjo Park; David K. Han; Hanseok Ko "Single Image Dehazing with Image Entropy and Information Fidelity." ICIP, 2014.

Version History

Introduced in R2019b
