resample

Resample time-domain data that is stored in an iddata object by decimation or interpolation (requires Signal Processing Toolbox software)

Description

example

datar = resample(data,P,Q) resamples the data in data such that the data is interpolated by a factor P and then decimated by a factor Q. For example, the command resample(z,1,Q) results in decimation by a factor Q.

datar = resample(data,P,Q,order) filters the data by applying a filter of specified order before interpolation and decimation.

Examples

collapse all

Increase the sampling rate of data and compare the resampled and the original data signals.

Use idinput to generate an input signal u that contains 2 periods, each containing 20 samples, of a sum-of-sinusoids signal with 5 sinusoids.

u = idinput([20 1 2],'sine',[],[],[5 10 1]);
plot(u)

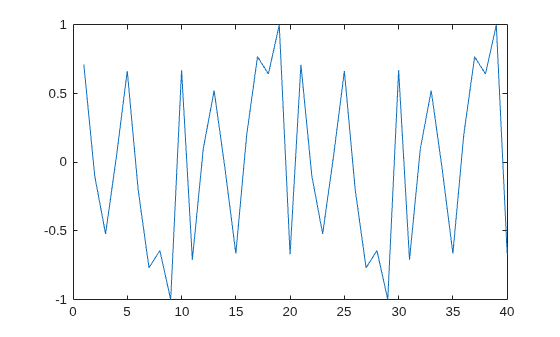

Figure contains an axes object. The axes object contains an object of type line.

Repackage u into an iddata object ui. Set the start time to 0. A sum-of-sinusoids signal is band limited, so set 'intersample' to 'bl'.

ui = iddata([],u,1,'tstart',0,'intersample','bl');

Resample the data using factors of 25 and 3 for P and Q, respectively. These values produce an increase in sample rate of about 8.3.

ur = resample(ui,25,3);
plot(ui,ur)
legend('ui','ur')

Figure contains an axes object. The axes object with title u1 contains 2 objects of type line. These objects represent ui, ur.

The resampled signal is smoother than the original signal.

Input Arguments

collapse all

Original data, specified as an iddata that contains either input/output data or time series data. data must contain uniform time samples.

Resampling factor terms, specified as integers that represent the interpolation and decimation factors. After resampling, the new sample time is Q/P times the original sample time.

Setting (Q/P)>1 results in decimation and setting (Q/P)<1 results in interpolation.

Order of the FIR filter that resample applies before interpolation and decimation, specified as a positive integer.

Output Arguments

collapse all

Resampled data, returned as an iddata that contains the same type of data as data. The length of the data in datar is equal to P/Q times the length of the data in data.

Algorithms

resample calls the resample (Signal Processing Toolbox) function in Signal Processing Toolbox™. The algorithm takes into account the intersample characteristics of the input signal that are described by the data.InterSample property.

If you do not have a license for Signal Processing Toolbox, perform resampling using idresamp.

Version History

Introduced before R2006a
