GPU Performance Analyzer
Description
The GPU Performance Analyzer displays information about GPU and CPU activities, events, and performance metrics from the generated CUDA® code. Use the GPU Performance Analyzer to find performance bottlenecks in a design.

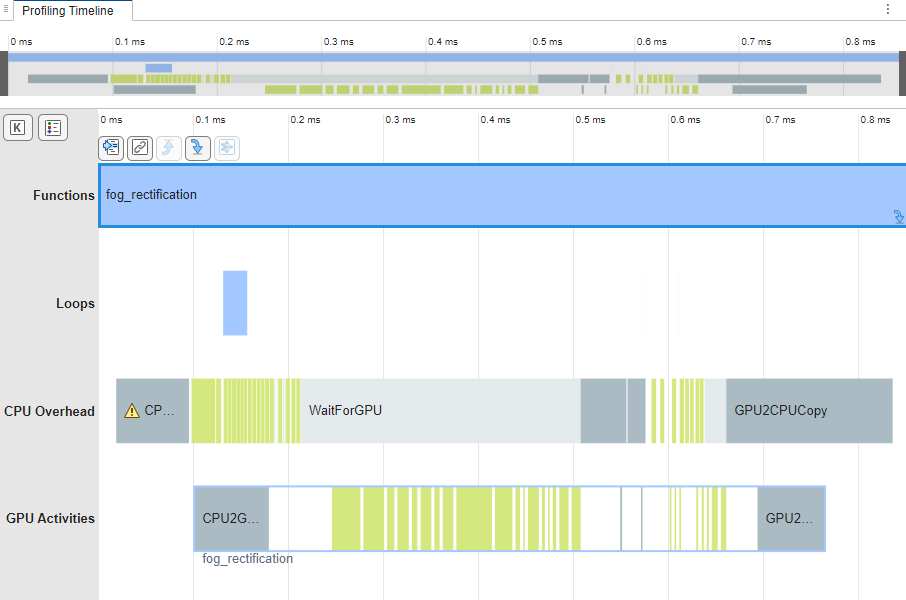

The GPU Performance Analyzer displays the profiling data in chronological order in the Profiling Timeline pane. The timeline contains four rows:
The Functions row, which shows function calls in the generated code
The Loops row, which shows loops that execute on the CPU
The CPU Overhead row, which shows memory transfers and GPU kernel launches
The GPU Activities row, which shows memory transfers and GPU kernel execution
The Diagnostics pane reports potential performance bottlenecks, such as long CPU loops, repetitive memory transfers, or GPU kernels with few threads, and it suggests ways to address them. The analyzer also contains:
A Call Tree pane that shows the function call hierarchy
A Profiling Summary pane that contains overview statistics for the generated code
An Event Statistics pane that displays detailed statistics for the selected event
A Code pane that you can use to trace events and generated code to the source MATLAB® code
If the entry-point function that you generate code from contains a deep learning network, you can use the Open Deep Learning Dashboard button to open a dashboard that contains the statistics for the network. For more information, see Analyzing Network Performance Using the Deep Learning Dashboard.
The GPU Performance Analyzer creates a
gpuProfiler.mldatx file that contains the profiling data in the
html subfolder of the code generation folder. You can reopen the
profiling data from a profiling session by opening the MLDATX file.
Open the GPU Performance Analyzer
MATLAB command prompt:
Use the
gpuPerformanceAnalyzerfunction.Use the
codegenfunction with both the-gpuprofileand-testoptions.Use the
gpuprofilefunction with thevieweroption.
Examples
Generate GPU code, profile it, and view the profiling data in the GPU Performance Analyzer.
Use the openExample function to obtain the example files.
openExample("gpucoder/GPUExecutionProfilingOfTheGeneratedCodeExample");The fog_rectification_init function takes a foggy input image and
returns a defogged image. Read the image data from the foggyInput.png
file and assign it to a variable, inputImage.
inputImage = imread("foggyInput.png");
inputs = {inputImage};Create a GPU code configuration object by using the
coder.gpuConfig function. Use the mex input
argument to generate a MEX function.
cfg = coder.gpuConfig("mex");Use the gpuPerformanceAnalyzer function to generate code for
the function, profile the code, and view the data in the GPU
Performance Analyzer.
designFileName = "fog_rectification_init";
gpuPerformanceAnalyzer(designFileName,inputs,Config=cfg);### Starting GPU code generation Code generation successful: View report ### GPU code generation finished ### Starting application profiling ### Application profiling finished ### Starting profiling data processing ### Profiling data processing finished ### Showing profiling data
Zoom in to a section of the profiling timeline and examine an event.
To zoom in on a section of the timeline, use one of these methods:
Hold Shift and click and drag over the section of the timeline you want to display.
Use the mouse wheel or an alternative touchpad option.
In the bar at the top of the Profiling Timeline pane, click and drag the sliders to change the region shown in the timeline.

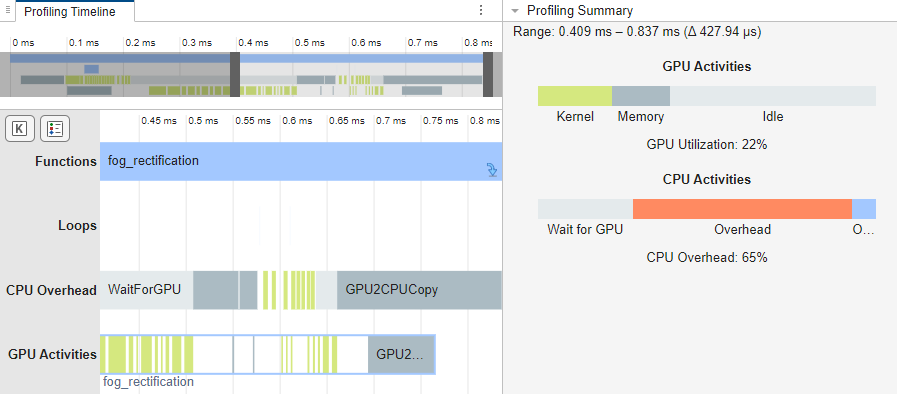

After zooming in, the Profiling Summary shows the summary for
the region in the timeline. This image shows the GPU
Performance Analyzer when zoomed in on a loop,
fog_rectification_init_loop_2.
To zoom out, use the mouse wheel or the sliders at the top of the timeline.
Examine the call hierarchy of the generated code using the Call Tree pane.
In this example, the GPU Performance
Analyzer shows the profiling data from the
fog_rectification_init entry-point function. In the
Call Tree pane, select the
fog_rectification_init function. To display the child events,
expand the fog_rectification_init node.
The call tree lists the execution times of each event as a percentage of its parent
event. The loop fog_rectification_init_loop_2 runs for the longest
time compared to the other child events.
To examine the events called by the loop, expand the
fog_rectification_init_loop_2 node. The tree shows that most of the
loop execution is waiting for the GPU.
Trace a GPU kernel event to the section of the generated code that calls the kernel, and trace the generated code to the source MATLAB code.
Open the profiling data for fog_rectification_init in the
GPU Performance Analyzer. In the
Profiling Timeline pane, in the GPU
Activities row, select the leftmost kernel event,
fog_rectification_init_kernel01.
To view the call to fog_rectification_init_kernel01 in the
generated code, in the timeline, click the code button. Alternatively, in the toolstrip, in the
Event Actions section, select Go To Code.
The Code pane shows the trace in the generated code.
To view the definition of the kernel, hold Ctrl and click the kernel name.
Point to line 307, which is part of the kernel. Select the code on line 307 to view traced MATLAB code.
Line 307 of the generated code traces to line 9 of
fog_rectification_init.m, which creates a matrix of zeros. To view
the other code traces, select the list at the top of the Code
pane.
From the list, select line 43 of fog_rectification_init.m. The
kernel also traces to MATLAB code that multiplies each element of the array
restoreOut by 255.
To open the traced code in the MATLAB editor, click the line number 43 in the
fog_rectification_init.m file.
Use the Filters section of the toolstrip to filter the events in the analyzer.
Show entire profiling session — Use this option to view the profiling results for the entire application, including initialization and termination.
Show single run — Use this option to view the profiling results for a single iteration of the generated code. By default, the GPU Performance Analyzer shows the results from the last run of the generated code.
Use the options under Filter Events to filter individual events:
Threshold (ms) — Skip events shorter than the given threshold.
Memory Allocation/Free — Show GPU device memory allocation and deallocation related events on the CPU activities bar.
Memory Transfer — Show memory transfers to the host or device.
Kernel — Show CPU kernel launches and GPU kernel activities.
Other Event — Show other GPU related events such as synchronization and waiting for GPU.
Related Examples
Limitations
On the Functions and Loops rows, you can navigate between caller and callee functions and loops using the up and down arrows on the right side of the event bar. For short events, it might not be possible to navigate back to the calling function or loop by using the up and down arrows. In such cases, use the call tree to navigate back to the caller function or loop.
At low zoom levels, GPU Performance Analyzer represents a densely populated area of short events separated by short distances as a single event. At higher levels of zoom, GPU Performance Analyzer displays the individual events. However, if the event duration is extremely short, it may not be possible to render this event on the timeline plot, even at high zoom levels.
GPU Performance Analyzer displays all the GPU events in a single row. In case of multiple CUDA streams, the GPU Activities row may contain overlapping events and the calculation in the Profiling Summary panel may be inaccurate. For example, deep learning libraries such as cuDNN may use multiple CUDA streams.
