convertToSugeno

Convert Mamdani fuzzy inference system into Sugeno fuzzy inference system

Description

example

sugenoFIS = convertToSugeno(mamdaniFIS) converts the Mamdani fuzzy inference system mamdaniFIS into a Sugeno fuzzy inference system sugenoFIS.

Examples

collapse all

Load a Mamdani fuzzy inference system.

mam_fis = readfis('mam22.fis');

Convert this system to a Sugeno fuzzy inference system.

sug_fis = convertToSugeno(mam_fis);

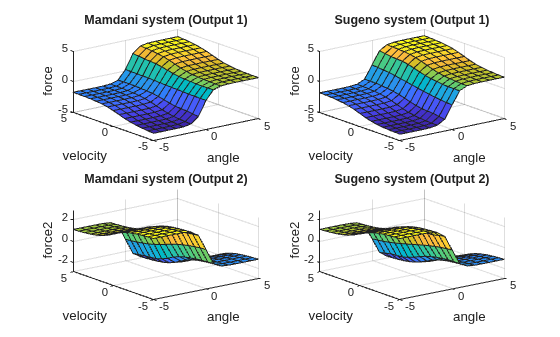

Plot the output surfaces for both fuzzy systems.

subplot(2,2,1)
gensurf(mam_fis)
title('Mamdani system (Output 1)')
subplot(2,2,2)
gensurf(sug_fis)
title('Sugeno system (Output 1)')
subplot(2,2,3)
gensurf(mam_fis,gensurfOptions('OutputIndex',2))
title('Mamdani system (Output 2)')
subplot(2,2,4)
gensurf(sug_fis,gensurfOptions('OutputIndex',2))
title('Sugeno system (Output 2)')

Figure contains 4 axes objects. Axes object 1 with title Mamdani system (Output 1) contains an object of type surface. Axes object 2 with title Sugeno system (Output 1) contains an object of type surface. Axes object 3 with title Mamdani system (Output 2) contains an object of type surface. Axes object 4 with title Sugeno system (Output 2) contains an object of type surface.

The output surfaces for both systems are similar.

Input Arguments

collapse all

Mamdani fuzzy inference system, specified as a mamfis or mamfistype2 object.

Output Arguments

collapse all

Sugeno fuzzy inference system, returned as one of the following:

sugenoFIS:

  • Has constant output membership functions, whose values correspond to the centroids of the output membership functions in mamdaniFIS

  • Uses the weighted-average defuzzification method

  • Uses the product implication method

  • Uses the sum aggregation method

The remaining properties of sugenoFIS, including the input membership functions and rule definitions remain unchanged from mamdaniFIS.

Tips

  • If you have a functioning Mamdani fuzzy inference system, consider using convertToSugeno to convert to a more computationally efficient Sugeno structure to improve performance.

Introduced in R2018b
