trackingGlobeViewer

Virtual globe for tracking scenario visualization

Since R2021b

Description

Use the trackingGlobeViewer object to create a virtual globe for tracking scenario visualization. Using the object, you can plot platforms, trajectories, sensor coverages, detections, and tracks on the globe.

To display elements in a scenario on the virtual globe:

1. Create a trackingGlobeViewer object.

2. Call its Object Functions to plot various elements in a tracking scenario.

3. Optionally, adjust the camera view using the pointer or the campos and camorient functions. You can also take a snapshot of the viewer using the snapshot object function.

Creation

Syntax

viewer = trackingGlobeViewer

viewer = trackingGlobeViewer(uifig)

viewer = trackingGlobeViewer(___,Name=Value)

Description

viewer = trackingGlobeViewer creates a default tracking globe viewer object and displays the virtual globe.

viewer = trackingGlobeViewer(uifig) creates the tracking globe viewer in the specified UI figure. You can create a UI figure by using the uifigure function.

viewer = trackingGlobeViewer(___,Name=Value) specifies properties using one or more name-value arguments. For example, trackingGlobeViewer(CoverageMode="Beam") specifies the coverage mode as "Beam".

Input Arguments

uifig — Figure for building user interface

Figure object

UI figure in which to create the globe viewer, specified as a Figure object. You can create a UI figure by using the uifigure function.

Properties

ReferenceLocation — Reference frame location for non-Earth-centered components

[0 0 0] (default) | three-element real-valued vector

Reference frame location for non-Earth-centered components plotted in the viewer, specified as a three-element real-valued vector of the form [lat lon alt], where:

• lat is the latitude in degrees.

• lon is the longitude in degrees.

• alt is the altitude above the WGS84 Earth model in meters.

You can only specify this property during object creation.

Example: [10 10 5000]

Data Types: single | double

CoverageMode — Display option for sensor coverages

"Beam" (default) | "Coverage"

Display option for sensor coverages, specified as "Beam" or "Coverage". When specified as

• "Beam" — The viewer displays only the beam (field of view) of each sensor.

• "Coverage" — The viewer displays both the beam and the coverage (field of regard) for each sensor.

Data Types: char | string

NumCovarianceSigma — Covariance ellipse size in number of sigma

2 (default) | nonnegative integer

Covariance ellipse size in number of sigma, specified as a nonnegative integer. The property determines the uncertainty level of the plotted covariance ellipse boundary. For example, if you specify the property value as 3, then the probability that the true state lies inside the covariance ellipse centered on the plotted state is roughly 99.7%.

Set this property to 0 if you do not want to show covariance ellipses.

Example: 3

Data Types: single | double

PlatformHistoryDepth — Length of platform trajectory history line

1000 (default) | nonnegative integer

Length of the platform trajectory history line, specified as a nonnegative integer. The property determines the number of previous updates shown on the platform trajectory plot.

Example: 5

Data Types: single | double

TrackHistoryDepth — Length of track history line

1000 (default) | nonnegative integer

Length of track history line, specified as a nonnegative integer. The property determines the number of previous updates shown on the track plot.

Example: 5

Data Types: single | double

TrackLabelScale — Track label scaling factor

1 (default) | positive integer

Track label scaling factor, specified as a positive integer. The property determines the size of the labels shown for each track on the plot.

Example: 1.5

Data Types: single | double

ShowDroppedTracks — Visibility of dropped tracks on the globe

true (default) | false

Visibility of dropped tracks on the globe, specified as true or false. If a previously encountered (TrackID,SourceIndex) pair is not found in the current call to the plotTrack function, the track is considered dropped.

Changing the value of this property only affects subsequent calls to the plotTrack object function. To remove all graphics from the globe, use the clear function.

Data Types: logical

Basemap — Map to plot data

"satellite" (default) | "streets" | "streets-light" | "streets-dark" | ...

Map on which to plot data, specified as one of the values listed in the table. Six of the basemaps in the table are tiled data sets created using Natural Earth. Five of the basemaps are high-zoom-level maps hosted by Esri^®.

	"satellite" (default) Full global basemap composed of high-resolution satellite imagery. Hosted by Esri.		"streets" General-purpose road map that emphasizes accurate, legible styling of roads and transit networks. Hosted by Esri.
	"streets-light" Map designed to provide geographic context while highlighting user data on a light background. Hosted by Esri.		"streets-dark" Map designed to provide geographic context while highlighting user data on a dark background. Hosted by Esri.
	"topographic" General-purpose map with styling to depict topographic features. Hosted by Esri.		"landcover" Map that combines satellite-derived land cover data, shaded relief, and ocean-bottom relief. The light, natural palette is suitable for thematic and reference maps. Created using Natural Earth.
	"colorterrain" Shaded relief map blended with a land cover palette. Humid lowlands are green and arid lowlands are brown. Created using Natural Earth.		"grayterrain" Terrain map in shades of gray. Shaded relief emphasizes both high mountains and micro-terrain found in lowlands. Created using Natural Earth.
	"bluegreen" Two-tone, land-ocean map with light green land areas and light blue water areas. Created using Natural Earth.		"grayland" Two-tone, land-ocean map with gray land areas and white water areas. Created using Natural Earth.
	"darkwater" Two-tone, land-ocean map with light gray land areas and dark gray water areas. This basemap is installed with MATLAB®. Created using Natural Earth.

All basemaps except "darkwater" require internet access. The "darkwater" basemap is included with MATLAB and Sensor Fusion and Tracking Toolbox™.

If you do not have consistent access to the internet, you can download the basemaps created using Natural Earth onto your local system by using the Add-On Explorer.

The basemaps hosted by Esri update periodically. As a result, you might see differences in your visualizations over time.

Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks^®.

Example: g.Basemap = "bluegreen"

Data Types: char | string

Terrain — Terrain of globe

"none" (default) | string scalar | character vector

Terrain of the globe, specified as a string scalar or a character vector. By default, you can use one of these two options:

• "none" — The elevation of the terrain is 0 everywhere.

• "gmted2010" — Global terrain derived form the Global Multi-resolution Terrain Elevation Data (USGS GMTED2010). This option requires internet access.

You can also use the name of other terrain files, added by using the addCustomTerrain function.

You can only specify this property during object creation.

Data Types: char | string

Object Functions

plotScenario	Plot tracking scenario in trackingGlobeViewer
plotPlatform	Plot platforms or targets in trackingGlobeViewer
plotTrajectory	Plot trajectories in trackingGlobeViewer
plotCoverage	Plot sensor coverage in trackingGlobeViewer
plotDetection	Plot detections in trackingGlobeViewer
plotTrack	Plot tracks in trackingGlobeViewer
plotTrackLog	Plot log of tracks
plotPlatformLog	Plot log of true platforms
plotPlatformAssignment	Plot assignment between platforms and tracks
clear	Clear plots in trackingGlobeViewer
snapshot	Create snapshot of trackingGlobeViewer
campos	Set or query camera position in trackingGlobeViewer
camorient	Set or query camera orientation in trackingGlobeViewer

Examples

Create and Display Tracking Globe Viewer

Create a default trackingGlobeViewer object.

viewer = trackingGlobeViewer

viewer =
  trackingGlobeViewer with properties:

                 Basemap: 'satellite'
       ReferenceLocation: [0 0 0]
    PlatformHistoryDepth: 1000
       TrackHistoryDepth: 1000
      NumCovarianceSigma: 2
      CoverageRangeScale: 1
         TrackLabelScale: 1
            CoverageMode: 'Beam'
       ShowDroppedTracks: 1

Create a geoTrajectory object to display on the viewer.

traj = geoTrajectory([0 0 100; 20 20 100],[0 3e4]);

Plot the trajectory on the virtual globe and change the camera position to see the trajectory.

plotTrajectory(viewer,traj,Color=[1 0 0])
campos(viewer,[5.7 3.5 1.7e7]);

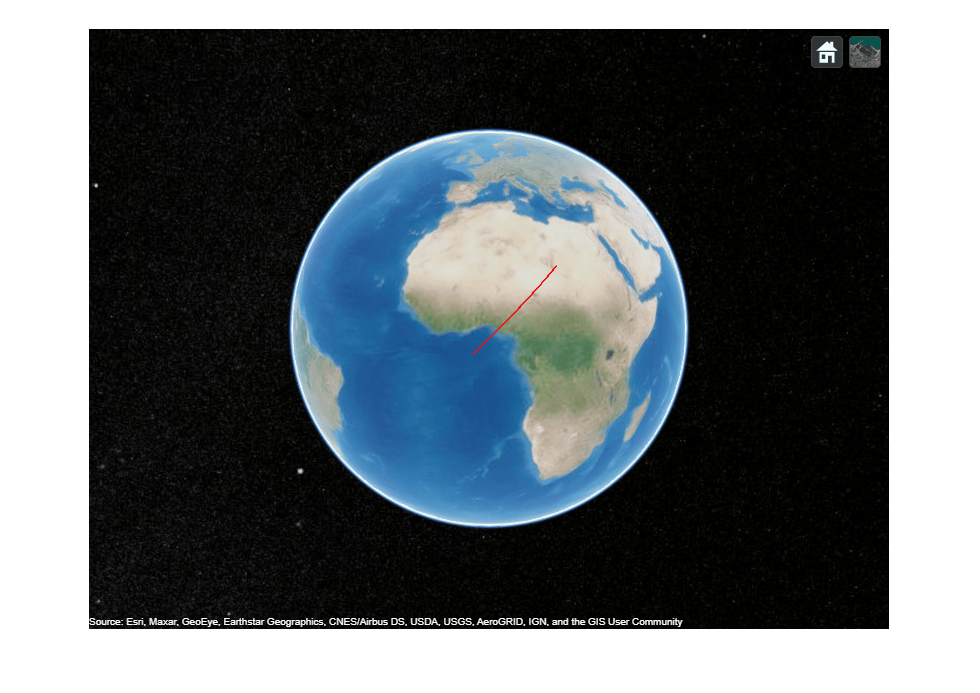

Take a snapshot and show the figure.

drawnow
snapshot(viewer)

Visualize Air Traffic Control Scenario in Tracking Globe Viewer

Load an air traffic control scenario into the workspace.

load("ATCScenario.mat")

Create a tracking globe viewer and set its reference location.

refloc = [42.363 -71 0];
viewer = trackingGlobeViewer(ReferenceLocation=refloc);

Simulate the scenario and visualize it on the globe.

  while advance(scenario)
      detections = detect(scenario);
      plotScenario(viewer,scenario,detections);
  end

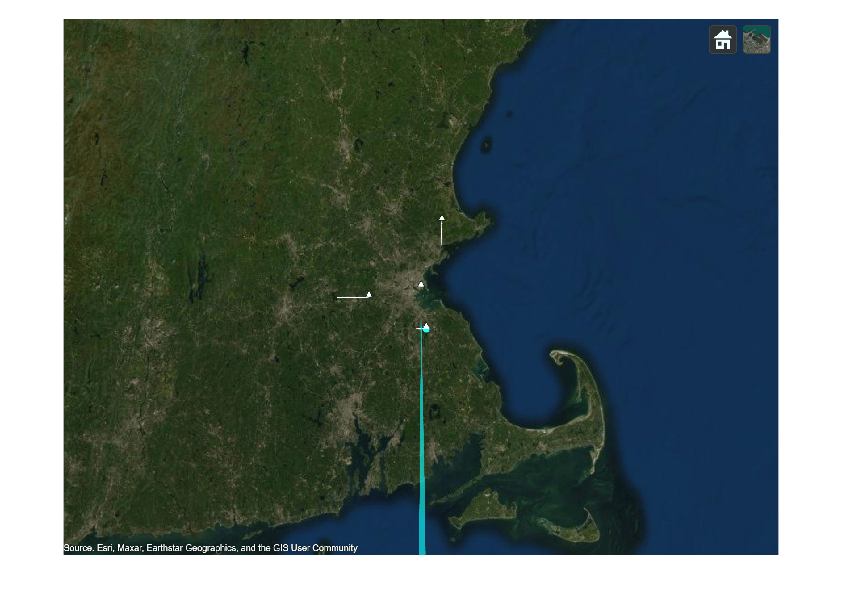

Show the final results in a snapshot.

  snapshot(viewer)
