Covariance fusion using covariance union
fuses the track states in
fusedCov] = fusecovunion(
trackState and their corresponding covariance
trackCov. The function estimates the fused state and
covariance in a way that maintains consistency. For more details, see Consistent Estimator.
Covariance Union Fusion
Define a state vector of tracks.
x(:,1) = [1;2;0]; x(:,2) = [2;2;0]; x(:,3) = [2;3;0];
Define the covariance matrices of the tracks.
p(:,:,1) = [10 5 0; 5 10 0;0 0 1]; p(:,:,2) = [10 -5 0; -5 10 0;0 0 1]; p(:,:,3) = [12 9 0; 9 12 0;0 0 1];
Estimate the fused state vector and its covariance.
[fusedState,fusedCov] = fusecovunion(x,p);

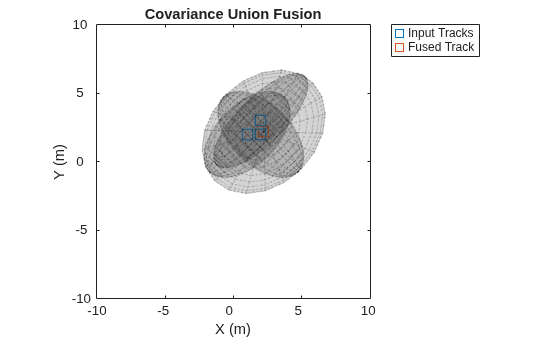

trackPlotter to plot the results.
tPlotter = theaterPlot('XLim',[-10 10],'YLim',[-10 10],'ZLim',[-10 10]); tPlotter1 = trackPlotter(tPlotter, ... 'DisplayName','Input Tracks','MarkerEdgeColor',[0.000 0.447 0.741]); tPlotter2 = trackPlotter(tPlotter, ... 'DisplayName','Fused Track','MarkerEdgeColor',[0.850 0.325 0.098]); plotTrack(tPlotter1,x',p) plotTrack(tPlotter2, fusedState', fusedCov) title('Covariance Union Fusion')
trackState — Track states
Track states, specified as an N-by-M matrix, where N is the dimension of the state and M is the number of tracks.
trackCov — Track covariance matrices
Track covariance matrices, specified as an N-by-N-by-M array, where N is the dimension of the state and M is the number of tracks.
fusedState — Fused state
Fused state, returned as an N-by-1 vector, where N is the dimension of the state.
fusedCov — Fused covariance matrix
Fused covariance matrix, returned as an N-by-N matrix, where N is the dimension of the state.
A consistent estimator is an estimator that converges in probability to the quantity being estimated as the sample size grows. In the case of tracking, a position estimate is consistent if its covariance (error) matrix is not smaller than the covariance of the actual distribution of the true state about the estimate. The covariance union method guarantees consistency by ensuring that all the individual means and covariances are bounded by the fused mean and covariance.
 Reece, Steven, and Stephen Rogers. "Generalised Covariance Union: A Unified Approach to Hypothesis Merging in Tracking." IEEE® Transactions on Aerospace and Electronic Systems. Vol. 46, No. 1, Jan. 2010, pp. 207–221.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Introduced in R2018b
