Fault Data Inport
Libraries:
Simulink Fault Analyzer /
Fault Port Blocks
Description
Fault Data Inport blocks retrieve signal data from a model and feed the data to behaviors that you assign to the faults. You can use these blocks to capture signal data from Simulink® and System Composer™ models.
Use these blocks only in the top-level of a Fault Subsystem block.
For more information, see Access Data from Model Outputs in Fault Behaviors.
Examples
This example shows how to use model data in a fault behavior by using a Fault Data Inport block. The Fault Data Inport block retrieves data from an output port from a block in the model and sends it to the fault behavior.
Inspect the Model

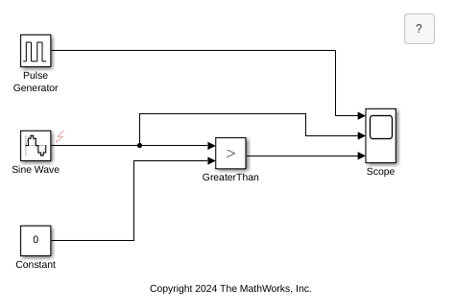

Open the model. The model contains three signal sources: a Pulse Generator block, a Sine Wave block, and a Constant block. The model has one fault on the output port of the Sine Wave block.
View the Fault Behavior

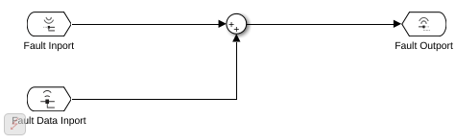

Open the fault behavior. In the model, click the fault badge, then click the fault behavior preview window. When the fault triggers, the behavior adds the data from the Fault Data Inport block to the signal.

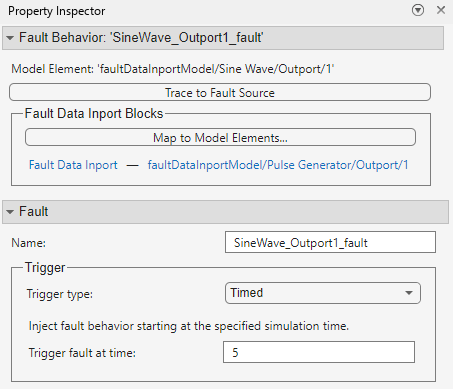

Double-click the Fault Data Inport block to open the Property Inspector. The Property Inspector lists the Fault Data Inport block name and the path of the model element in the Fault Data Inport Blocks section. In this example, the Fault Data Inport block retrieves the data from the output of the Pulse Generator block. The Property Inspector also lists other properties, including the trigger time. The fault triggers when the simulation time is 5.
In the Fault Data Inport Blocks section, click the model element to highlight the data source location in the model.
Simulate the Model

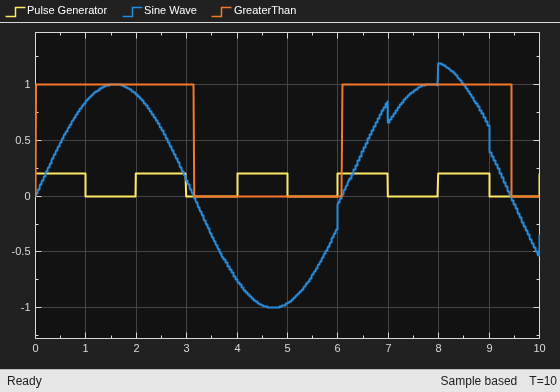

Run the model to view the results. The Scope block indicates that the data from the Pulse Generator block applies to the fault behavior after 5 seconds.
This example shows how to use a Fault Data Inport block to conditionally change the injected fault behavior. The Fault Data Inport block retrieves data from an output port from a block in the model and sends it to the fault behavior. Depending on the value of the signal, the behavior changes the fault behavior output.
Inspect the Model

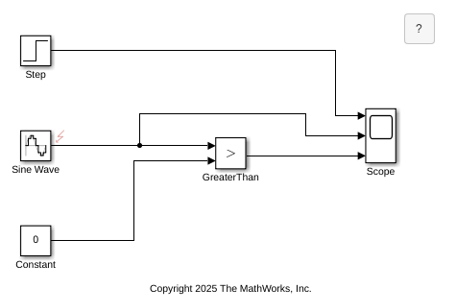

Open the model. The model contains three signal sources: a Step block, a Sine Wave block, and a Constant block. The model has one fault on the output port of the Sine Wave block.
View the Fault Behavior

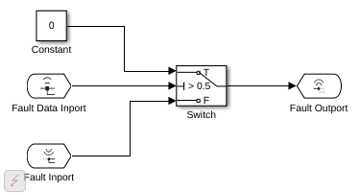

Open the fault behavior. In the model, click the fault badge, then click the fault behavior preview window. When the fault triggers, the fault sends the data from the Fault Data Inport block to a Switch block. If the output of the Fault Data Inport block is greater than 0.5, the fault overrides the signal with a value of 0. Otherwise, the fault does not affect the value of the signal.

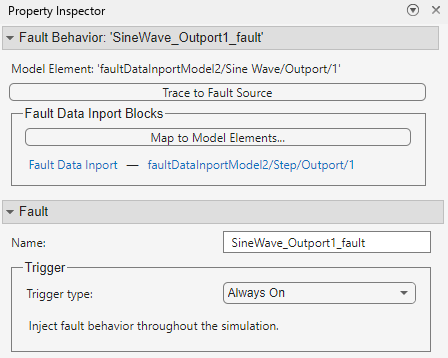

Double-click the Fault Data Inport block to open the Property Inspector. The Property Inspector lists the Fault Data Inport block name and the path of the model element in the Fault Data Inport Blocks section. In this example, the Fault Data Inport block retrieves the data from the output of the Step block.
The Fault Data Inport Blocks section lists the name of the Fault Data Inport block and path of the signal source.
Simulate the Model

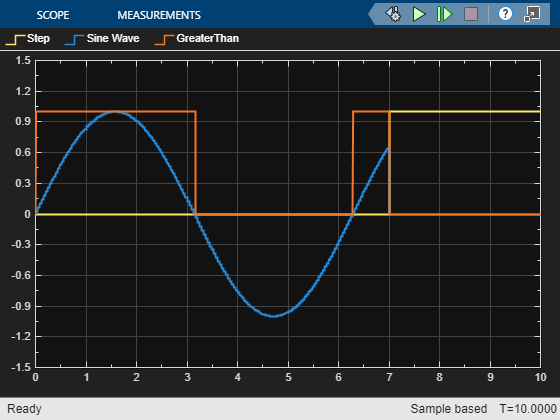

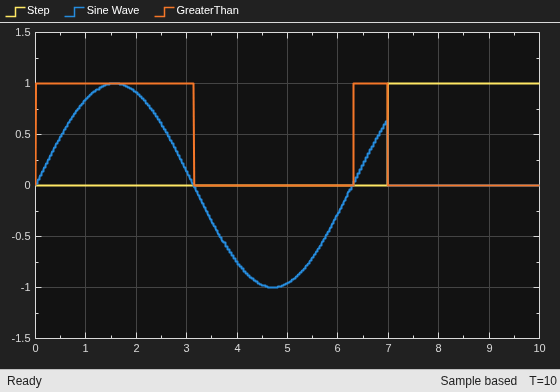

Run the model to view the results. The Scope block indicates that the data from the Step block changes the fault behavior after 7 seconds.
Limitations
You cannot define the Fault Data Inport blocks data mapping in fault behaviors assigned to library block faults.
Ports
Output
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Tips
Programmatically retrieve or reassign the data source of this block by using the
Simulink.fault.dataInportSourcefunction.
Version History
Introduced in R2024b
