Plot variable correlations
plots Pearson's correlation coefficients between all pairs of variables in the matrix of
time series data
X. The plot is a
numVars grid, where
numVars is the number of time series variables (columns) in
X, including the following subplots:
Each off diagonal subplot contains a scatterplot of a pair of variables with a least-squares reference line, the slope of which is equal to the displayed correlation coefficient.
Each diagonal subplot contains the distribution of a variable as a histogram.
Also, the function returns the correlation matrix in the plots
R and a matrix of p-values
PValue for testing the null hypothesis that each pair of
coefficients is not correlated against the alternative hypothesis of a nonzero
plots the Pearson's correlation coefficients between all pairs of variables in the table
PValue] = corrplot(
Tbl, and also returns tables for the correlation matrix
R and matrix of p-values
To select a subset of variables in
Tbl, for which to plot the
correlation matrix, use the
DataVariables name-value argument.
[___] = corrplot(___,
specifies options using one or more name-value arguments in
addition to any of the input argument combinations in previous syntaxes.
corrplot returns the output argument combination for the
corresponding input arguments. For example,
Spearman’s rank correlation coefficient for the first 5 variables of the table
Tbl and tests for significant correlation coefficients.
corrplot(___) plots the correlation matrix.
corrplot( plots on the axes specified by
of the current axes (
ax can precede any of the input
argument combinations in the previous syntaxes.
plots the diagnostics of the input series and additionally returns handles to plotted
H. Use elements of
H to modify
properties of the plot after you create it.
Plot and Return Pearson's Correlation Coefficients Between Variables in Matrix of Data
Plot and return Pearson's correlation coeffifients between pairs of time series using the default options of
corrplot. Input the time series data as a numeric matrix.
Load data of Canadian inflation and interest rates
Data_Canada.mat, which contains the series in the matrix
Plot and return the correlation matrix between all pairs of variables in the data.
R = corrplot(Data)
R = 5×5 1.0000 0.9266 0.7401 0.7287 0.7136 0.9266 1.0000 0.5908 0.5716 0.5556 0.7401 0.5908 1.0000 0.9758 0.9384 0.7287 0.5716 0.9758 1.0000 0.9861 0.7136 0.5556 0.9384 0.9861 1.0000
The correlation plot shows that the short-term, medium-term, and long-term interest rates are highly correlated.
Plot and Return Correlations and -values Between Table Variables
Plot correlations between time series, which are variables in a table, using default options. Return a table of pairwise correlations and a table of corresponding significance-test -values.
Load data of Canadian inflation and interest rates
Data_Canada.mat. Convert the table
DataTable to a timetable.
load Data_Canada dates = datetime(dates,ConvertFrom="datenum"); TT = table2timetable(DataTable,RowTimes=dates); TT.Observations = ;
Plot and return the correlation matrix, with corresponding significance-test -values, between all pairs of variables in the data
[R,PValue] = corrplot(TT)
R=5×5 table INF_C INF_G INT_S INT_M INT_L _______ _______ _______ _______ _______ INF_C 1 0.92665 0.74007 0.72867 0.7136 INF_G 0.92665 1 0.59077 0.57159 0.55557 INT_S 0.74007 0.59077 1 0.9758 0.93843 INT_M 0.72867 0.57159 0.9758 1 0.98609 INT_L 0.7136 0.55557 0.93843 0.98609 1
PValue=5×5 table INF_C INF_G INT_S INT_M INT_L __________ __________ __________ __________ __________ INF_C 1 3.6657e-18 3.2113e-08 6.6174e-08 1.6318e-07 INF_G 3.6657e-18 1 4.7739e-05 9.4769e-05 0.00016278 INT_S 3.2113e-08 4.7739e-05 1 2.3206e-27 1.3408e-19 INT_M 6.6174e-08 9.4769e-05 2.3206e-27 1 5.1602e-32 INT_L 1.6318e-07 0.00016278 1.3408e-19 5.1602e-32 1
corrplot returns the correlation matrix and corresponding matrix of -values in tables
corrplot computes correlations between all pairs of variables in the input table. To select a subset of variables from an input table, set the
Plot Correlations Between Selected Variables
Plot the correlation matrix for selected time series.
Load the credit default data set
Data_CreditDefaults.mat. The table
DataTable contains the default rate of investment-grade corporate bonds series (
IGD, the response variable) and several predictor variables.
Consider a multiple regression model for the default rate that includes an intercept term.
Include a variable in the table of data that represents the intercept in the design matrix (that is, a column of ones). Place the intercept variable at the beginning of the table.
Const = ones(height(DataTable),1); DataTable = addvars(DataTable,Const,Before=1);
Create a variable that contains all predictor variable names.
varnames = DataTable.Properties.VariableNames; prednames = varnames(varnames ~= "IGD");

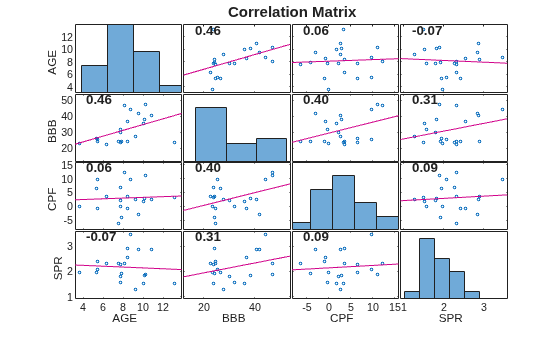

Graph a correlation plot of all predictor variables except for the intercept dummy variable.
BBB is moderately linearly associated with the other predictors, while all other predictors appear unassociated with each other.
Plot and Test Kendall's Rank Correlation Coefficients
Plot Kendall's rank correlations between multiple time series. Conduct a hypothesis test to determine which correlations are significantly different from zero.
Load data on Canadian inflation and interest rates.

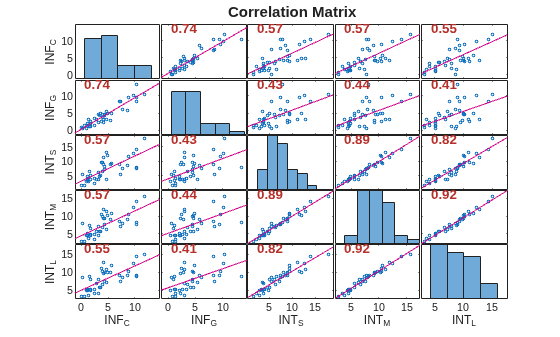

Plot the Kendall's rank correlation coefficients between all pairs of variables. Identify which correlations are significantly different from zero by conducting hypothesis tests.
The correlation coefficients highlighted in red indicate which pairs of variables have correlations significantly different from zero. For these time series, all pairs of variables have correlations significantly different from zero.
Conduct Right-Tailed Correlation Tests
Test for correlations greater than zero between multiple time series.
Load data on Canadian inflation and interest rates
Return the pairwise Pearson's correlations and corresponding -values for testing the null hypothesis of no correlation against the right-tailed alternative that the correlations are greater than zero.
[R,PValue] = corrplot(DataTable,Tail="right");
PValue=5×5 table INF_C INF_G INT_S INT_M INT_L __________ __________ __________ __________ __________ INF_C 1 1.8329e-18 1.6056e-08 3.3087e-08 8.1592e-08 INF_G 1.8329e-18 1 2.3869e-05 4.7384e-05 8.1392e-05 INT_S 1.6056e-08 2.3869e-05 1 1.1603e-27 6.7041e-20 INT_M 3.3087e-08 4.7384e-05 1.1603e-27 1 2.5801e-32 INT_L 8.1592e-08 8.1392e-05 6.7041e-20 2.5801e-32 1
PValue has pairwise -values all less than the default 0.05 significance level, indicating that all pairs of variables have correlation significantly greater than zero.
ax — Axes on which to plot
Axes on which to plot, specified as an
corrplot plots to the current axes
corrplot does not support
Specify optional pairs of arguments as
the argument name and
Value is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name in quotes.
computes Spearman’s rank correlation coefficient for the first 5 variables of the table
Tbl and tests for significant correlation
Type — Correlation coefficient
"Pearson" (default) |
"Spearman" | character vector
Correlation coefficient to compute, specified as a value in this table.
|Pearson’s linear correlation coefficient|
|Kendall’s rank correlation coefficient (τ)|
|Spearman’s rank correlation coefficient (ρ)|
Rows — Option for handling rows in input time series data that contain
"pairwise" (default) |
"complete" | character vector
Option for handling rows in the input time series data that contain
NaN values, specified as a value in this table.
|Use all rows, regardless of any |
|Use only rows that do not contain |
|Use rows that do not contain |
Tail — Alternative hypothesis
"both" (default) |
"left" | character vector
Alternative hypothesis Ha used to
compute the p-values
PValue, specified as a
value in this table.
|Ha: Correlation is not zero.|
|Ha: Correlation is greater than zero.|
|Ha: Correlation is less than zero.|
TestR — Flag for testing whether correlations are significant
"off" (default) |
"on" | character vector
Flag for testing whether correlations are significant, specified as a value in this table.
|All correlations in the correlation matrix plot have black font.|
Alpha — Significance level
0.05 (default) | scalar in [0,1]
Significance level for correlation tests, specified as a scalar in the interval [0,1].
DataVariables — Variables in
all variables (default) | string vector | cell vector of character vectors | vector of integers | logical vector
Tbl for which
includes in the correlation matrix plot, specified as a string vector or cell vector
of character vectors containing variable names in
Tbl.Properties.VariableNames, or an integer or logical vector
representing the indices of names. The selected variables must be numeric.
DataVariables=[true true true false] or
DataVariables=1:3 selects the first through third table
R — Correlations
numeric matrix | table
Correlations between pairs of variables in the input time series data that are displayed in the plots, returned as one of the following quantities:
PValue — p-values
numeric matrix | table
p-values corresponding to significance tests on the elements of
R, returned as one of the following quantities:
The p-values are used to test the null hypothesis of no
correlation against the alternative hypothesis of a nonzero correlation, with test tail
specified by the
H — Handles to plotted graphics objects
Handles to plotted graphics objects, returned as one of the following quantities:
H contains unique plot identifiers, which you can use
to query or modify properties of the plot.
Rows="pairwise"(the default) can return a correlation matrix that is not positive definite. The setting
Rows="complete"returns a positive-definite matrix, but, in general, the estimates are based on fewer observations.
corrplotcomputes p-values for Pearson’s correlation by transforming the correlation to create a t-statistic with
numObs– 2 degrees of freedom. The transformation is exact when the input time series data is normal.
corrplotcomputes p-values for Kendall’s and Spearman’s rank correlations by using either the exact permutation distributions (for small sample sizes) or large-sample approximations.
corrplotcomputes p-values for two-tailed tests by doubling the more significant of the two one-tailed p-values.
Version HistoryIntroduced in R2012a
corrplot returns results in tables when you supply a table of data
If you supply a table of time series data
corrplot returns all outputs in separate tables. Rows and
variables in the tables correspond to the variables specified by
corrplot returned each output as a matrix when
you supplied a table of input data.
Starting in R2022a, if you supply a table of input data and return any of the outputs, access results by using table indexing. For more details, see Access Data in Tables.
