AXI4-Stream IIO Read

R2026b

Read AXI4-Stream Data using IIO

•

AXI4-Stream IIO Read block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
SoC Blockset Support Package for AMD FPGA and SoC Devices

Description

Add-On Required: This feature requires the SoC Blockset Support Package for AMD FPGA and SoC Devices add-on.

This block reads data from the direct-memory-access (DMA) buffer of the specified AXI4-Stream IP core device by using the Industrial I/O (IIO) library drivers. The AXI4-Stream IIO Read block enables you to achieve a low-latency, high-throughput data transmission between your model deployed on the processor and the IP core on the FPGA.

Examples

Get Started With Code Generation Using SoC Blockset Support Package for AMD SoC Devices

Generate code from a Simulink model and run the executable on an AMD^® Zynq^® board.

• Open Live Script

Ports

Output

Data — Data frame from DMA buffer

N-by-1 vector

This port outputs the N-by-1 vector received from the DMA buffer transfer. Use the Frame size parameter to determine the number of samples read for each DMA transfer. This port is unnamed until the Valid port is enabled.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Valid — Status of stream read from IP core

Boolean value

This port outputs a validation flag indicating a successful read of the data from the IP core, where 1 indicates a successful read.

Dependencies

To enable this port, set Data timeout (seconds) to a finite value.

Data Types: Boolean

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

To set the block parameter value programmatically, use the set_param (Simulink) function.

To get the block parameter value programmatically, use the get_param (Simulink) function.

IIO device name — File name of IP core device

mwipcore0:s2mm0 (default) | character array

Enter the name and channel of the IP core on the FPGA as a colon separated list. If you are using HDL Coder™ to generate the IP core, HDL Coder maps the IP core to mwipcore0 and uses channel s2mm0. For more information on getting IIO device names and channels, see Tips.

Programmatic Use

Block Parameter: devName

Frame size — Size of data vector to be read from IP core

1024 (default) | positive integer

Enter the size of the data vector to be read from the IP core device.

Programmatic Use

Block Parameter: SamplesPerFrame

Data type — Data type of IP core

uint32 (default) | double | single | int8 | uint8 | int16 | uint16 | int32

Select the data type used by the IP core.

Programmatic Use

Block Parameter: dataTypeStr

Sample time — Sample time in seconds

0.1 (default) | positive scalar

The signal data output by the AXI4-Stream IIO Read blocks polls from the DMA buffer using the AXI4-Stream protocol. The Sample time or base rate of the subsystem specifies the polling rate of the DMA buffer.

Programmatic Use

Block Parameter: SampleTime

Data timeout (seconds) — Timeout for DMA stream read

Inf (default) | positive scalar

Specify the maximum timeout delay for the DMA stream read.

Programmatic Use

Block Parameter: DataTimeout

Tips

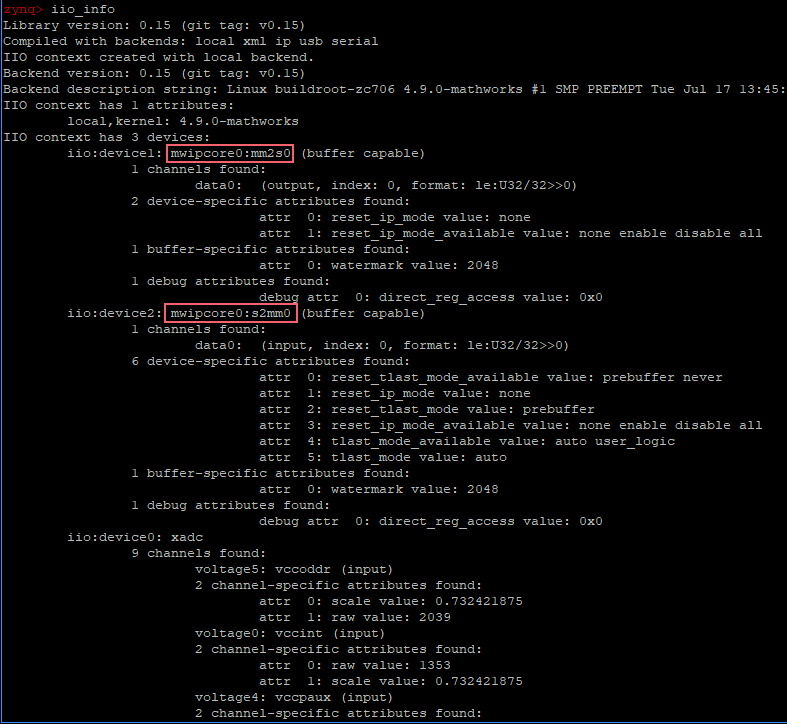

• To get a list of available IIO device names and channels, open a terminal into the AMD SoC device hardware board, and execute this command.

  iio_info



Version History

Introduced in R2018b
