CIC Interpolator

Interpolate signal using CIC filter

  • Library:
  • DSP HDL Toolbox / Filtering

  • CIC Interpolator block

Description

The CIC Interpolator block interpolates an input signal by using a cascaded integrator-comb (CIC) interpolation filter. CIC interpolation filters are a class of linear phase finite impulse response (FIR) filters consisting of a comb part and an integrator part. The CIC interpolation filter structure consists of N sections of cascaded comb filters, a rate change factor of R, and N sections of cascaded integrators. For more information about CIC interpolation filters, see Algorithms.

The block supports these combinations of input and output data.

  • Scalar input and scalar output — Support for fixed and variable interpolation rates

  • Scalar input and vector output — Support for fixed interpolation rates only

  • Vector input and vector output — Support for fixed interpolation rates only

The block provides an architecture suitable for HDL code generation and hardware deployment.

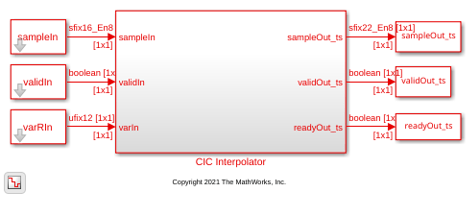

Ports

Input

expand all

Input data, specified as a scalar or a column vector with a length from 1 to 64.

The input data must be a signed integer or signed fixed point with a word length less than or equal to 32.

Data Types: int8 | int16 | int32 | signed fixed point
Complex Number Support: Yes

Control signal that indicates if the input data is valid. When valid is 1 (true), the block captures the values from the input data port. When valid is 0 (false), the block ignores the values from the input data port.

Data Types: Boolean

Use this port to dynamically specify the variable interpolation rate during run time.

This value must have the data type fixdt(0,12,0) and must be an integer in the range from 1 to the Interpolation factor (Rmax) parameter value.

Dependencies

To enable this port, on the Main tab, set the Interpolation factor source parameter to Input port.

Data Types: fixdt(0,12,0)

Control signal that clears internal states. When reset is 1 (true), the block stops the current calculation and clears internal states. When the reset is 0 (false) and the input valid is 1 (true), the block captures data for processing.

For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.

Dependencies

To enable this port, on the Control Ports tab, select the Enable reset input port parameter.

Data Types: Boolean

Output

expand all

CIC-interpolated output data, returned as a scalar or a column vector with a length from 1 to 64. You can define the data type of this output by setting the Output data type parameter on the Data Types tab.

Data Types: int8 | int16 | int32 | signed fixed point
Complex Number Support: Yes

Control signal that indicates if the data from the output data port is valid. When valid is 1 (true), the block returns valid data from the output data port. When valid is 0 (false), the values from the output data port are not valid.

Data Types: Boolean

Control signal that indicates that the block is ready for new input data sample on the next cycle. When ready is 1 (true), you can specify the data and valid inputs for the next time step. When ready is 0 (false), the block ignores any input data in the next time step.

Data Types: Boolean

Parameters

expand all

Main

Select whether the block operates with a fixed or variable interpolation rate.

  • Property — Use a fixed interpolation rate specified from the Interpolation factor (R) parameter.

  • Input port — Use a variable interpolation rate specified from the R input port.

Note

The block does not support variable interpolation for these two combinations of input and output:

  • Scalar input and vector output

  • Vector input and vector output

Specify the interpolation factor rate at which the block interpolates the input. This value must be an integer. The range of available values depends on the type of input and output data.

Input DataOutput DataInterpolation factor (R) Valid Values
ScalarScalarInteger from 1 to 2048
ScalarVectorInteger from 1 to 64
VectorVectorInteger from 1 to 64

Note

For vector inputs, select the interpolation factor rate and input vector length such that their multiplication value does not exceed 64.

Dependencies

To enable this parameter, set the Interpolation factor source parameter to Property.

Specify the upper bound of the range of valid values for the R input port.

Note

The block does not support variable interpolation for these two combinations of input and output:

  • Scalar input and vector output

  • Vector input and vector output

Dependencies

To enable this parameter, set the Interpolation factor source parameter to Input port.

Specify the differential delay of the comb part of the block.

Specify the number of sections in either the comb part or the integrator part of the block.

Specify the minimum number of cycles between the valid input samples as 1, factors of R, or multiples of R based on the type of input and output data, where R is the interpolation factor.

Input DataOutput DataMinimum Number of Cycles Between Valid Input Samples
ScalarScalargreater than or equal to R
ScalarVectorfactors less than R
VectorVector1

Dependencies

To enable this parameter, set the Interpolation factor source parameter to Property.

Select this parameter to compensate for the output gain of the block.

The latency of the block changes depending on the type of input, the interpolation you specify, the number of sections, and the value of this parameter. For more information on the latency of the block, see Latency.

Data Types

Select the data type for the output data.

  • Full precision — The output data type has a word length equal to the input word length plus gain bits.

  • Same word length as input — The output data type has a word length equal to the input word length.

  • Minimum section word lengths — The output data type uses the word length you specify in the Output word length parameter.

Specify the word length of the output as an integer from 2 to 104.

Dependencies

To enable this parameter, set the Output data type parameter to Minimum section word lengths.

Control Ports

Select this parameter to enable the reset input port. The reset signal implements a local synchronous reset of the data path registers.

For more reset considerations, see Tips.

Select this parameter to connect the generated HDL global reset signal to the data path registers. This parameter does not change the appearance of the block or modify simulation behavior in Simulink®. When you clear this parameter, the generated HDL global reset clears only the control path registers. The generated HDL global reset can be synchronous or asynchronous depending on the HDL Code Generation > Global Settings > Reset type parameter in the model Configuration Parameters.

For more reset considerations, see Tips.

Tips

Reset Behavior

  • By default, the CIC Interpolator block connects the generated HDL global reset to only the control path registers. The two reset parameters, Enable reset input port and Use HDL global reset, connect a reset signal to the data path registers. Because of the additional routing and loading on the reset signal, resetting data path registers can reduce synthesis performance.

  • The Enable reset input port parameter enables the reset port on the block. The reset signal implements a local synchronous reset of the data path registers. For optimal use of FPGA resources, this option does not connect the reset signal to registers targeted to the DSP blocks of the FPGA.

  • The Use HDL global reset parameter connects the generated HDL global reset signal to the data path registers. This parameter does not change the appearance of the block or modify simulation behavior in Simulink. The generated HDL global reset can be synchronous or asynchronous depending on the HDL Code Generation > Global Settings > Reset type parameter in the model Configuration Parameters. Depending on your device, using the global reset might move registers out of the DSP blocks and increase resource use.

  • When you select the Enable reset input port and Use HDL global reset parameters together, the global and local reset signals clear the control and data path registers.

Reset Considerations for Generated Test Benches

  • FPGA-in-the-loop (FIL) initialization provides a global reset but does not automatically provide a local reset. With the default reset parameters, the data path registers that are not reset can result in FIL mismatches if you run the FIL model more than once without resetting the board. Select Use HDL global reset to reset the data path registers automatically, or select Enable reset input port and assert the local reset in your model so the reset signal becomes part of the Simulink FIL test bench.

  • The generated HDL test bench provides a global reset but does not automatically provide a local reset. With the default reset parameters and the default register reset Configuration Parameters, the generated HDL code includes an initial simulation value for the data path registers. However, if you are concerned about X-propagation in your design, you can set the HDL Code Generation > Global Settings > Coding style > No-reset register initialization parameter in Configuration Parameters to Do not initialize. In this case, with the default block reset parameters, the data path registers that are not reset can cause X-propagation on the data path at the start of HDL simulation. Select Use HDL global reset to reset the data path registers automatically, or select Enable reset input port and assert the local reset in your model so the reset signal becomes part of the generated HDL test bench.

Algorithms

expand all

References

[1] Hogenauer, E. “An Economical Class of Digital Filters for Decimation and Interpolation.” IEEE Transactions on Acoustics, Speech, and Signal Processing 29, no. 2 (April 1981): 155–62. https://doi.org/10.1109/TASSP.1981.1163535.
