Compute the Running Maximum

Compute the running maximum of a 3-by-2 matrix input, dsp_examples_u, using the Maximum block.

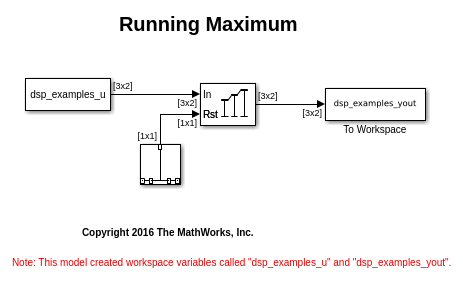

Open the model.

model = 'ex_runningmaximum_ref';

The Input processing parameter is set to Columns as channels (frame based). The block processes the input as a two-channel signal with a frame size of three. The running maximum is reset at t = 2 by an impulse to the block's Rst port.

Run the model.


In the Running mode, the block outputs the maximum value over each channel since the last reset. At t = 2, the reset event occurs. The maximum value in the second column changes to 6, even though 6 is less than 9, which was the maximum value since the previous reset event.

Close the model.
