# Arbitrary Magnitude and Phase Filter Design

This example shows how to design filters with customized magnitude and phase specifications. Many filter design problems focus on the magnitude response only, while assuming a linear phase response through symmetry. In some cases, however, the desired filter needs to satisfy constraints on both magnitude and phase.

For example, custom magnitude and phase design specifications can be used for the equalization of magnitude and phase distortions found in data transmission systems (channel equalization) or in oversampled ADC (compensation for non-ideal hardware characteristics). Another application is the design of filters that have smaller group delays than linear phase filters and less distortion than minimum-phase filters for a given order.

### Frequency Response Specification and Filter Design

Filter responses are usually specified by frequency intervals (bands) along with the desired gain on each band. Custom magnitude and phase filter specifications are similar, but also include phase response, usually as a complex value encoding both gain and phase response. In most cases, the response specification is comprised of a frequencies vector *F *= [*f*1*, ..., f*N] of *N* increasing frequencies, and a frequency responses vector *H *= [*h*1*, ..., h*N] corresponding to the filter's complex response values. In DSP System Toolbox™, you can create a filter specification object with a desired frequency response using `fdesign.arbmagnphase`

. Once a specification object has been created, you can design an FIR or an IIR filter using the `design`

function. For more information about FIR and IIR design algorithms, see [1].

#### FIR Designs

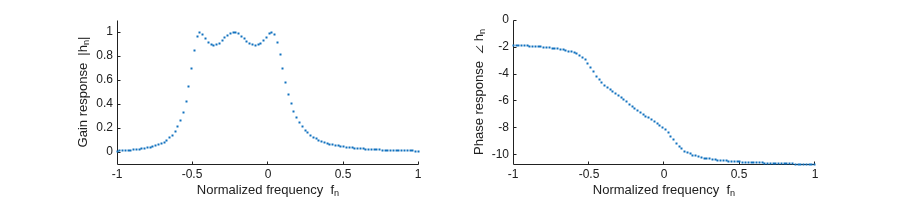

In this first example, we compare several FIR design methods to model the magnitude and phase of a complex RF bandpass filter. First, load the desired filter specification: frequencies to the vector *F*, and the complex response values to the vector *H*. Plot the gain and phase frequency responses on the the left and the right graphs respectively.

load('gainAndPhase','F','H') % Load frequency response data plotResponse(F, H) % A helper plotting function used in this demo

Create a specification object using `fdesign.arbmagnphase`

with the `'N,F,H'`

specification pattern. This specification accepts the desired filter order * N*, along with the frequency response vectors

*F*and

*H*. The

`'N,F,H'`

pattern defines the desired response on the entire Nyquist range (that is, a single-band specification with no relaxed "don't care" regions). In this example, the desired response data vectors *F*and

*H*have 655 points, which is relatively dense across the frequency domain.

```
N = 100;
f = fdesign.arbmagnphase('N,F,H',N,F,H);
```

Determine which design methods can be used for this specification object using the `designmethods`

function. In this case, the methods are: `equiripple`

, `firls`

(least squares), and `freqsamp`

(frequency sampling).

`designmethods(f,'fir')`

FIR Design Methods for class fdesign.arbmagnphase (N,F,H): equiripple firls freqsamp

Design the filters with the `design`

function using the desired method from the list above. You can also specify `'allfir'`

to design using all available methods, in which case the function returns a cell array of System objects.

`Hd = design(f,'allfir',SystemObject = true);`

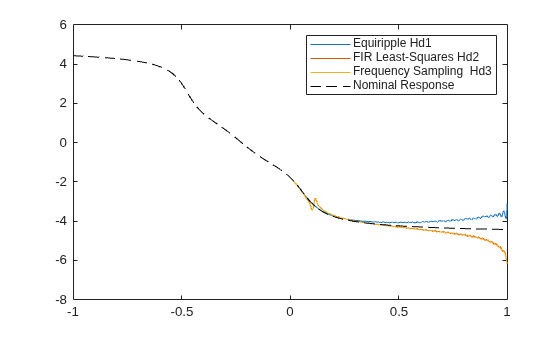

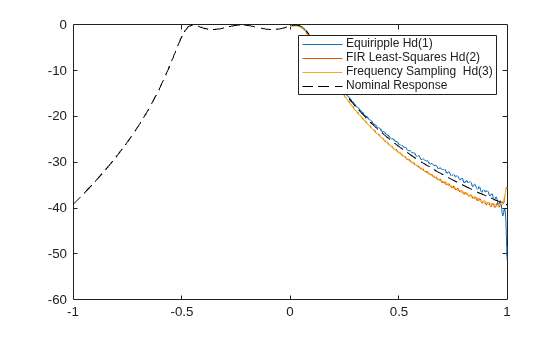

Plot the filters' frequency responses and the nominal response in a dashed line. The equiripple design `Hd`

`(1)`

appears to approximate very well on the passband, but slightly deviates in other regions. The least squares design `Hd`

`(2)`

is optimized for uniformly weighted quadratic norm (not favoring one region or another), and the frequency sampled FIR design `Hd`

`(3)`

appears to exhibit the worst approximation of all three.

hfvt = fvtool(Hd{:}, 'Color','w'); legend(hfvt,'Equiripple Hd(1)', 'FIR Least-Squares Hd(2)','Frequency Sampling Hd(3)', ... 'Location', 'NorthEast') ax = hfvt.CurrentAxes; ax.NextPlot = 'add'; plot(ax,F,20*log10(abs(H)),'r--')

hfvt(2) = fvtool(Hd{:},'Analysis','phase','Color','white'); legend(hfvt(2),'Equiripple Hd(1)', 'FIR Least-Squares Hd(2)','Frequency Sampling Hd(3)') ax = hfvt(2).CurrentAxes; ax.NextPlot = 'add'; plot(ax,F,unwrap(angle(H))+2*pi,'r--')

#### IIR Designs

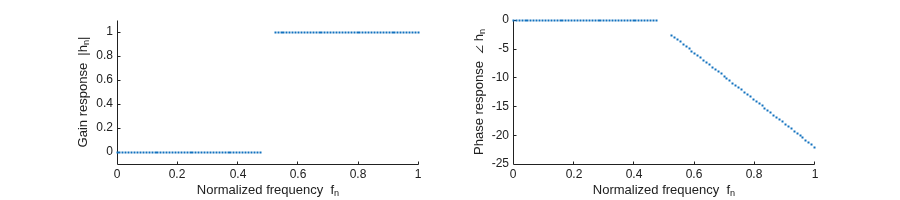

In the next part, we design an IIR filter. The desired filter is a halfband highpass filter with a linear phase on the passband. The specification is given by 100 points on the frequency domain as shown in the following figure.

F = [linspace(0,.475,50) linspace(.525,1,50)]; H = [zeros(1,50) exp(-1j*pi*13*F(51:100))]; plotResponse(F, H)

Create a specification object using a single-band design spec `'Nb, Na, F, H'`

, which takes the desired IIR orders `Na`

` = 10`

(denominator order) and `Nb`

` = 12`

(numerator order) as inputs. There is only one design method available for this specification - the least squares IIR design (`iirls`

).

```
Nb = 12;
Na = 10;
f = fdesign.arbmagnphase('Nb,Na,F,H',Nb,Na,F,H);
designmethods(f)
```

Design Methods for class fdesign.arbmagnphase (Nb,Na,F,H): iirls

The `iirls`

design method allows to specify different weights for different frequencies, giving more control over the approximation quality of each band. Design the filter with a weight of 1 on the stopband and a weight of 100 on the passband. The high weight given to the passband makes the approximation more accurate on this region.

W = 1*(F<=0.5) + 100*(F>0.5); Hd = design(f,'iirls','Weights',W);

When using IIR design techniques, the stability of the filter is not guaranteed. Check the IIR stability using the `isstable`

function. To do a more complete analysis, examine the poles and how close they are to the unit circle.

isstable(Hd)

`ans = `*logical*
1

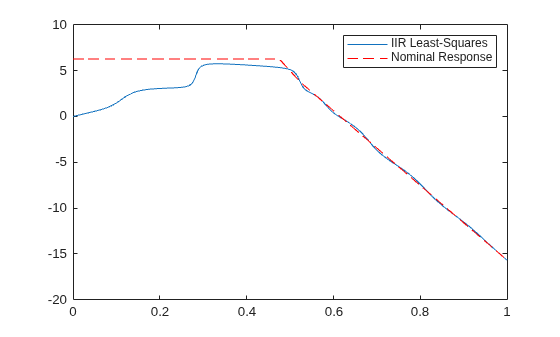

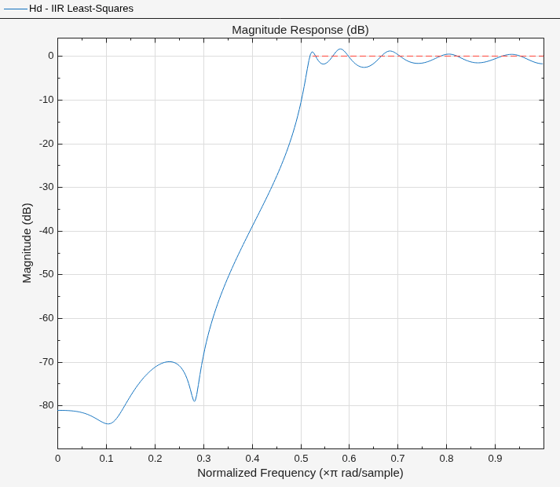

Plot the IIR design response. Note that the approximation on the passband is better than on the stopband, and the phase response is less significant wherever the magnitude gain is small (low dB).

close(hfvt(1)); close(hfvt(2)); hfvt = fvtool(Hd, 'Color','w'); legend(hfvt,'IIR Least-Squares','Location', 'NorthWest')

hfvt(2) = fvtool(Hd,'Analysis','phase','Color','white'); legend(hfvt(2),'IIR Least-Squares','Location', 'NorthEast') ax = hfvt(2).CurrentAxes; ax.NextPlot = 'add'; plot(ax,F,unwrap(angle(H))+2*pi,'r--')

### Bandpass FIR Design with a Low Group Delay

An interesting application of arbitrary magnitude and phase designs is the design of asymmetric FIR filters that sacrifice linear phase in favor of a shorter group delay. Such filters can still be designed to maintain a good approximation of a linear phase on the passband. Suppose we have three bands for the bandpass filter: a stopband on ${\mathit{F}}_{1}=[0,0.3)$ and on $${F}_{3}=(0.6,\phantom{\rule{0.5em}{0ex}}1]$$, and a passband on ${\mathit{F}}_{2}=\left[0.3,0.6\right]$. On the passband, the desired frequency response is $\mathit{H}\left(\omega \right)={\mathit{e}}^{-\mathit{j}\pi \omega \cdot \mathrm{gd}}$, which has a linear phase reponse with a group delay of *gd.*

F1 = linspace(0,.25,30); % Lower stopband F2 = linspace(.3,.56,40); % Passband F3 = linspace(.62,1,30); % Higher stopband % Define the desired frequency response on the bands gd = 12; % Desired Group Delay H1 = zeros(size(F1)); H2 = exp(-1j*pi*F2*gd); H3 = zeros(size(F3)); F = [F1 F2 F3]; H = [H1 H2 H3];

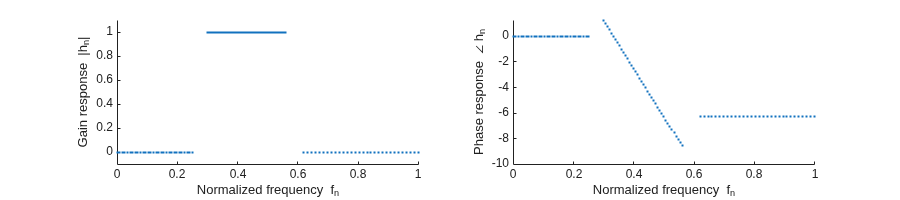

Plot the desired frequency response.

plotResponse(F, H)

Create a filter specification object using the `'N,B,F,H'`

specification pattern. Here, `N`

` = 50`

is the desired filter order, `B`

` = 3`

stands for the number of bands, followed by * B* pairs of

`F`

and `H`

vectors as before. N = 50; % Filter Order B = 3; % Number of bands f = fdesign.arbmagnphase('N,B,F,H',N,B, F1,H1, F2,H2, F3,H3); Hd_mnp = design(f,'equiripple');

This design does not have a linear phase, as can be seen by calling the `islinphase`

function.

islinphase(Hd_mnp)

`ans = `*logical*
0

Now, create a magnitude-only filter specification using `fdesign.arbmag`

. The `'N,B,F,A'`

specification pattern for this object is similar to the `'N,B,F,H'`

specification of the `fdesign.argmagnphase`

object. The difference between the two is that the complex filter response `H`

in `'N,B,F,H' `

is replaced with a magnitude only (nonnegative real) response `A`

in `'N,B,F,A'`

.

f_magonly = fdesign.arbmag('N,B,F,A',N,3,F1,abs(H1),F2,abs(H2),F3,abs(H3)); Hd_mo = design(f_magonly,'equiripple');

The magnitude-only specification yields symmetric design with a linear phase.

islinphase(Hd_mo)

`ans = `*logical*
1

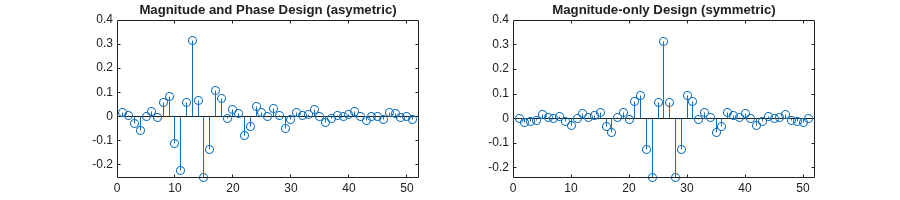

subplot(1,2,1); stem(Hd_mnp.Numerator) title('Magnitude and Phase Design (asymetric)') subplot(1,2,2); stem(Hd_mo.Numerator) title('Magnitude-only Design (symmetric)')

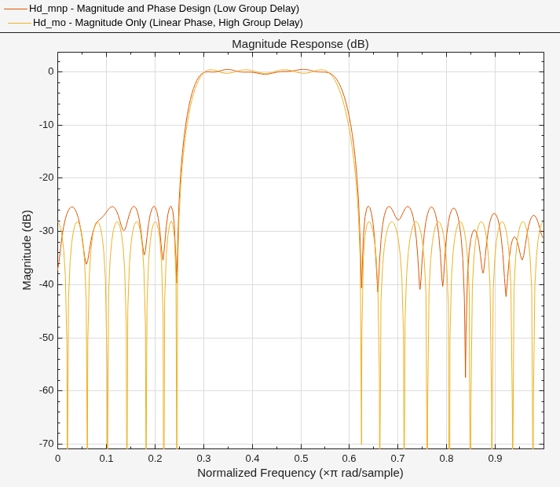

Compare the two designs. Note that they have a very similar bandpass magnitude response.

close(hfvt(1)); close(hfvt(2)); hfvt = fvtool(Hd_mnp,Hd_mo, 'Color', 'w'); legend(hfvt,'Magnitude and Phase Design (Low Group Delay)', 'Magnitude Only (Linear Phase, High Group Delay)', 'Location', 'NorthEast')

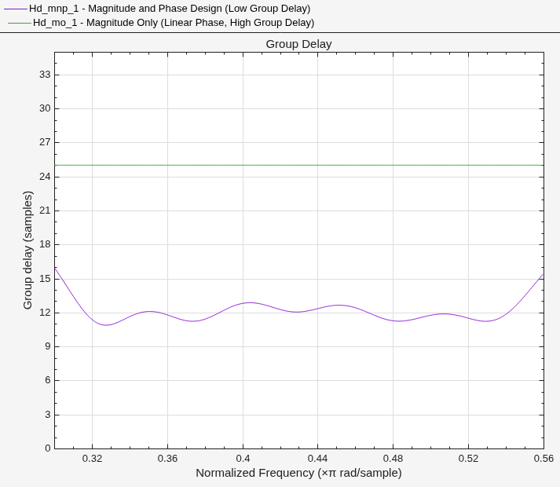

Plot the group delay. The arbitrary magnitude and phase design has a slightly varying group delay. However, the variation is small and on average is 12.5 samples. This group delay is half the group delay of the magnitude only design, which is 25 samples.

hfvt(2) = fvtool(Hd_mnp,Hd_mo,'Analysis','grpdelay','Color','w'); legend(hfvt(2),'Magnitude and Phase Design (Low Group Delay)', 'Magnitude Only (Linear Phase, High Group Delay)', 'Location', 'NorthEast') axis([.3 .56 0 35])

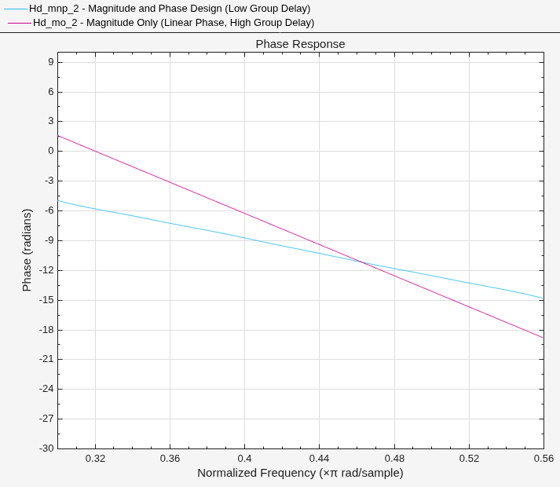

The difference in group delays can also be seen in the phase response. The shallower slope indicates a smaller group delay.

hfvt(2).Analysis = 'phase'; hfvt(2).Color = 'w'; axis([.3 .56 -30 10])

### Passband Equalization of a Chebyshev Lowpass Filter

Another common application of arbitrary magnitue-phase designs is the equalization of nonlinear-phase responses of IIR filters. Consider a third order Chebyshev Type I lowpass filter with a normalized passband frequency of 1/16 and passband ripples of 0.5 dB.

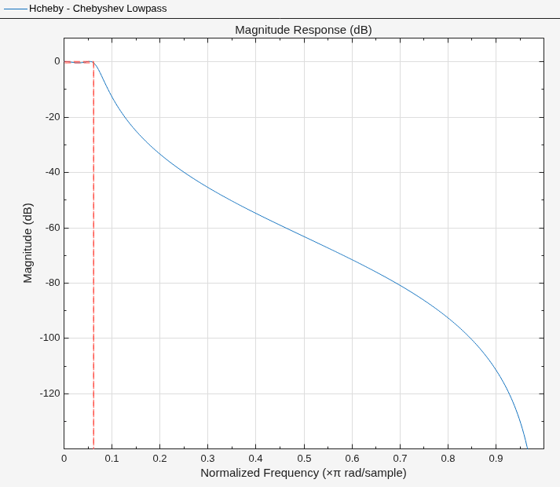

Fp = 1/16; % Passband frequency Ap = .5; % Passband ripples f = fdesign.lowpass('N,Fp,Ap',3,Fp,Ap); Hcheby = design(f,'cheby1'); close(hfvt(1)); close(hfvt(2)); hfvt = fvtool(Hcheby,'Color','w'); legend(hfvt, 'Chebyshev Lowpass');

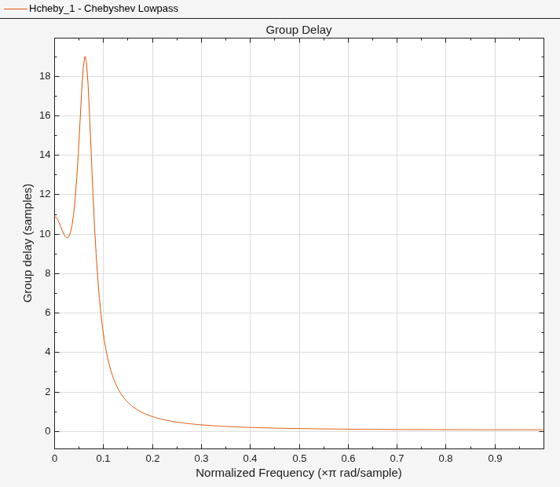

Plot the group delay. There is a significant group delay distorition on the passband with group delays ranging from 10 to 20 samples.

hfvt(2) = fvtool(Hcheby,'Color','w','Analysis','grpdelay'); legend(hfvt(2), 'Chebyshev Lowpass');

To mitigate the distortion in the group delay, an FIR equalizer ${\mathit{H}}_{\mathrm{eq}}\left(\omega \right)$can be used after the IIR filter. Ideally, the combined filter is an ideal lowpass. The combined filter has the passband response $\mathit{G}\left(\omega \right)={\mathit{H}}_{\mathrm{ch}}\left(\omega \right){\mathit{H}}_{\mathrm{eq}}\left(\omega \right)={\mathit{e}}^{-\mathit{j}{\mathit{g}}_{\mathit{d}}\omega}$, eliminating the magnitude ripples to a flat magnitude response and a constant group delay of ${\mathit{g}}_{\mathit{d}}$ samples. The target group ${\mathit{g}}_{\mathit{d}}$ is tied to the allotted FIR length for causal filter designs. In this example, ${\mathit{g}}_{\mathit{d}}=35$ makes a reasonable choice.

To summarize, the equalizer design has two bands:

On the passband, the desired frequency response of the equalizer should be ${\mathit{H}}_{\mathrm{eq}}\left(\omega \right)={\mathit{e}}^{-\mathit{j}{\mathrm{g}}_{\mathit{d}}\omega}/{\mathit{H}}_{\mathrm{ch}}\left(\omega \right)$.

On the stopband, the desired response is ${\mathit{H}}_{\mathrm{eq}}\left(\omega \right)=0$, consistent with ${\mathit{H}}_{\mathrm{ch}}$.

This two-band design specification ensures that the FIR approximation of the equalizer focuses on the passband and the stopband only. The remaining parts of the frequency domain are considered don't-care regions.

gd = 35; % Passband Group Delay of the equalized filter (linear phase) F1 = 0:5e-4:Fp; % Passband D1 = exp(-1j*gd*pi*F1)./freqz(Hcheby,F1*pi); Fst = 3/16; % Stopband F2 = linspace(Fst,1,100); D2 = zeros(1,length(F2));

There are several FIR design methods that can be used to implement this equalizer FIR specification. Compare the performance using two design methods: a least squares design, and an equiripple design.

feq = fdesign.arbmagnphase('N,B,F,H',51,2,F1,D1,F2,D2); Heq_ls = design(feq,'firls'); % Least-Squares design Heq_er = design(feq,'equiripple'); % Equiripple design % Create the cascaded filters Gls = cascade(Hcheby,Heq_ls); Geq = cascade(Hcheby,Heq_er);

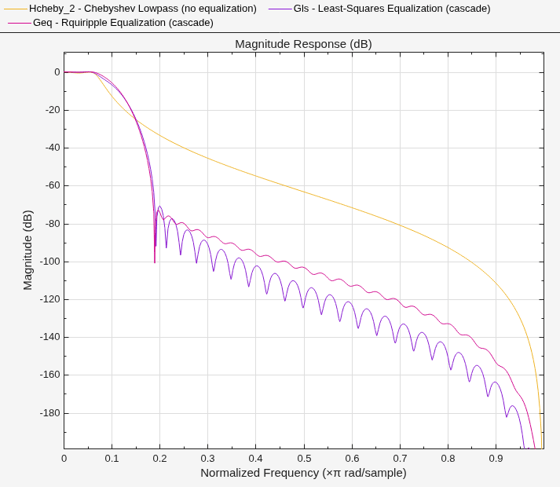

Plot the magnitude responses of the cascaded systems for both filters.

close(hfvt(1)); close(hfvt(2)); hfvt = fvtool(Hcheby,Gls, Geq, 'Color','w'); legend(hfvt,'Chebyshev Lowpass (no equalization)','Least-Squares Equalization (cascade)', ... 'Equiripple Equalization (cascade)', 'Location', 'NorthEast')

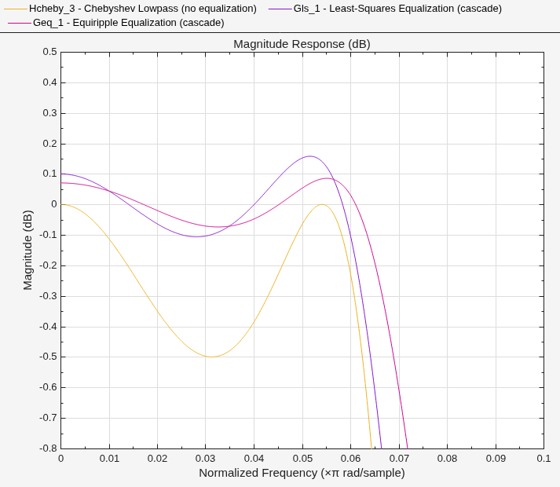

Zoom in around the passband. The passband ripples are attenuated after equalization from 0.5 dB in the original filter to 0.27 dB with the least-squares designed equalizer, and to 0.16 dB with the equiripple designed equalizer.

hfvt(2) = fvtool(Hcheby,Gls,Geq, 'Color','w'); legend(hfvt(2),'Chebyshev Lowpass (no equalization)', ... 'Least-Squares Equalization (cascade)', ... 'Equiripple Equalization (cascade)', 'Location', 'NorthEast') axis([0 .1 -0.8 .5])

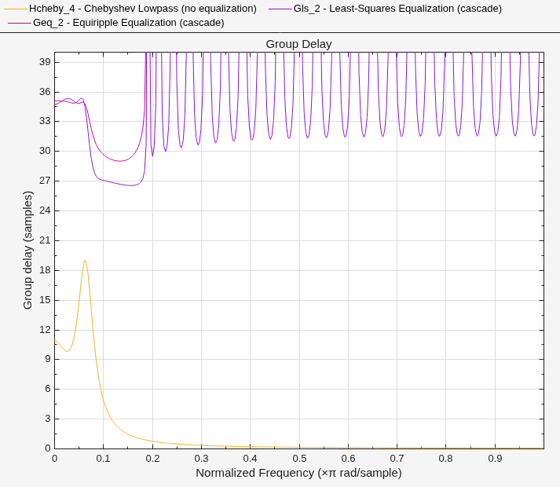

We now turn to the phase (and group delay) equalization. The combined group delay is nearly constant around 35 samples (the target group delay) on the passband. Outside the passband, the combined group delay is seemingly divergent, but this is insignificant as the gain of the filter vanishes on that region.

```
hfvt(2).Analysis = 'grpdelay';
axis([0 1 0 40])
```

Zoom in around the passband. The group delay in the passband is equalized from a peak-to-peak difference of 8.8 samples to 0.51 samples with the least-squares equalizer, and to 0.62 samples with the equiripple equalizer. Both equalizers perform equally well.

hfvt(3) = fvtool(Hcheby,Gls,Geq, 'Analysis', 'grpdelay','Color','w'); legend(hfvt(3),'Chebyshev Lowpass (no equalization)', ... 'Least-Squares Equalization (cascade)', ... 'Equiripple Equalization (cascade)', 'Location', 'NorthEast') axis([0 Fp 34 36])

close(hfvt(1)); close(hfvt(2)); close(hfvt(3));
