Filter Visualizer
Libraries:
DSP System Toolbox /
Sinks
Description
The Filter Visualizer block displays the magnitude response and phase response of time-varying digital filters or time-varying filter coefficients. You can visualize the frequency response of up to 20 filters at a time using this visualizer.
You can use the visualizer to configure the plot settings, find the peak values, enable
cursor measurements, and even copy the scope display to the clipboard For more information,
see Configure Filter Visualizer. To access the filter
visualizer programmatically, use the dsp.DynamicFilterVisualizer
object.
Examples
Design and Implement Lowpass Filter with Tunable Frequency Specifications in Simulink
Vary the order and the cutoff frequency of the lowpass FIR filter during simulation. Design the filter every time the frequency specifications update. Visualize the magnitude response of this varying filter.
Pass a noisy sinusoidal signal through the lowpass FIR filter. Visualize the frequency spectra of the input and the output signals.
Open and Inspect Model

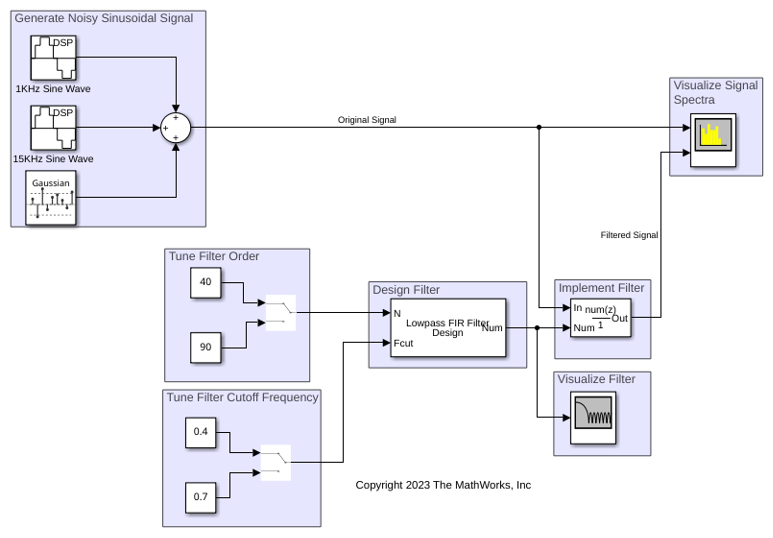

Open the tunable_lowpass_filter
model.
The input signal in the model is a sum of two sine waves with the frequencies of 1 kHz and 15 kHz. The Random Source block adds zero-mean white Gaussian noise with a variance of 0.05 to the sum of sine waves.

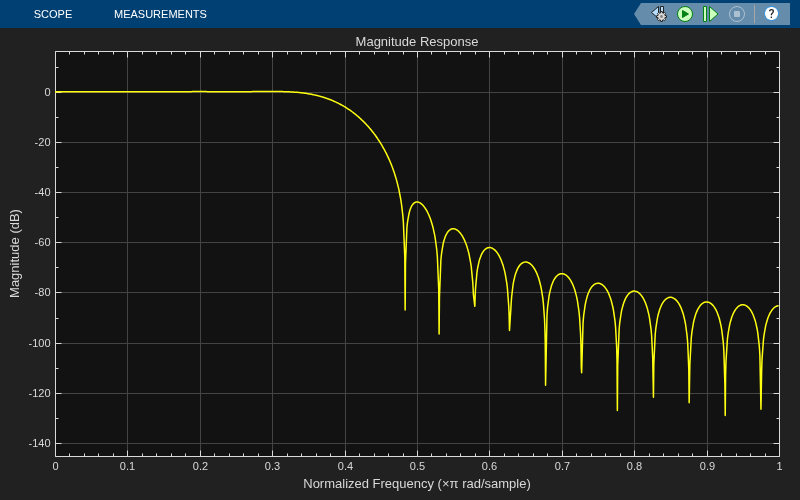

The Lowpass FIR Filter Design block designs the filter and the Discrete FIR Filter block implements the filter. The filter order and the filter cutoff frequency specifications are input through the input ports of the Lowpass FIR Filter Design block.
Run Model

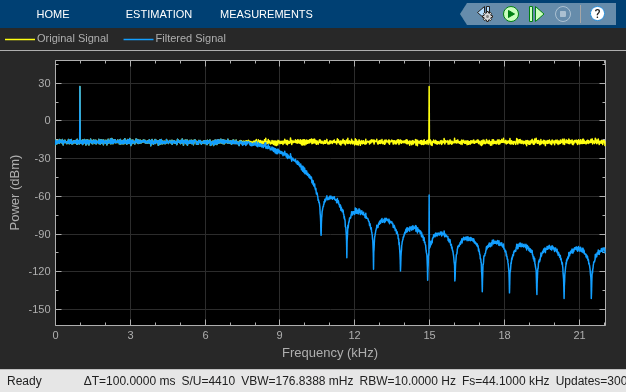

Visualize the spectra of the original signal and the filtered signal in the Spectrum Analyzer. The second tone at 15 kHz is attenuated since it falls in the stopband region of the filter.
Tune the Filter Order and Filter Cutoff Frequency

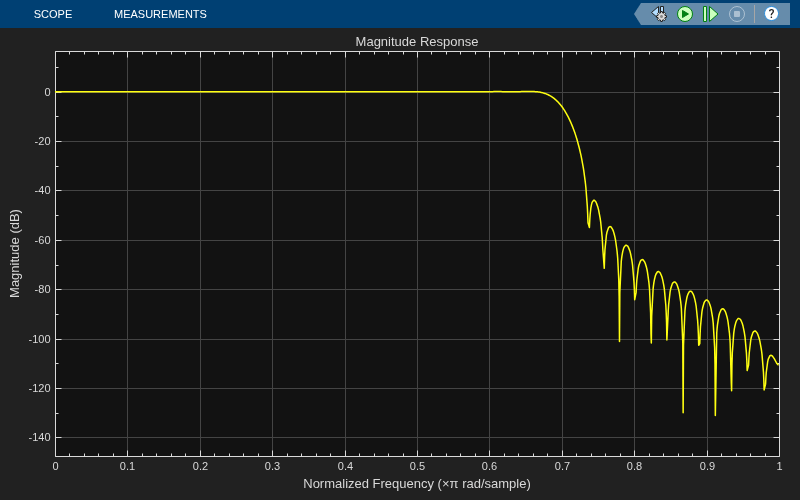

Change the filter order to 90 and the filter cutoff frequency to 0.7 during simulation. To change the parameter values more gradually during simulation, select the Smooth tuned filter parameters check box and specify a smoothing factor in the Lowpass FIR Filter Design block dialog box. The smoothing factor determines the speed at which the parameter values change until they match the desired new value. If you specify a smoothing factor of 0, the block does not smooth the parameter and immediately sets the parameter to the new value. As the smoothing factor approaches 1, the number of smoothing operations, and consequently, the number of filter redesigns increase. This example uses a smoothing factor of 0.6.

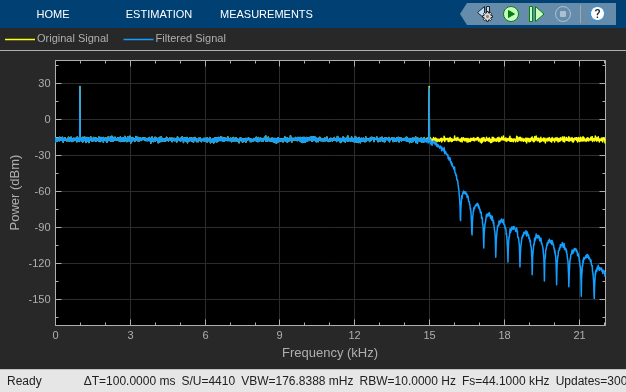

When you change the filter order and the filter cutoff frequency, you can see the magnitude response of the filter change in the Filter Visualizer output. The second tone at 15 kHz is now unaffected as it falls in the passband region of the filter.
Filter Noisy Signal Using Fourth-Order Section (FOS) Filter in Simulink
Filter a noisy sinusoidal signal using the Fourth-Order Section Filter block. Obtain the numerator and denominator coefficients of the FOS filter using the Bandpass IIR Filter Design block.
Tune the frequency specifications of the FOS filter during simulation.
Open and Run Model

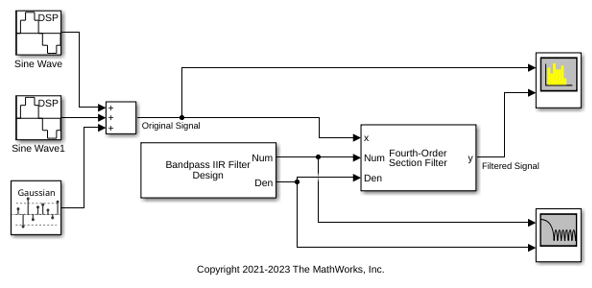

Open the fourthordersectionfilter.slx
model.
The input signal in the model is a sum of two sine waves with frequencies of 100 Hz and 350 Hz. The sample rate is 1000 Hz and the number of samples in each frame is 1024. The Random Source block adds zero-mean white Gaussian noise with a variance of 1e-4 to the sum of the sine waves.
The Bandpass IIR Filter Design block designs a sixth-order bandpass IIR filter with the first and second 3-dB cutoff frequencies of 0.25 rad/sample and 0.75 rad/sample, respectively. The block generates coefficients as a cascade of fourth-order sections. Visualize the frequency response of the filter using the Filter Visualizer.
Run the model.

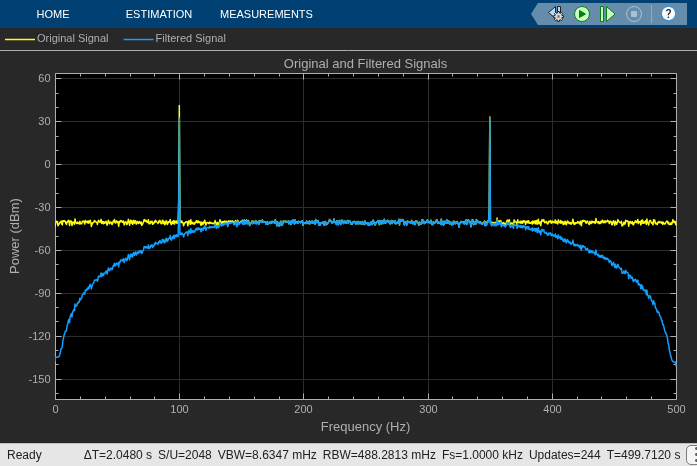

The Fourth-Order Section Filter block filters the noisy sinusoidal signal. Visualize the original sinusoidal signal and the filtered signal using the Spectrum Analyzer.
Tune Frequency Specification of FOS Filter
During simulation, you can tune the frequency specifications of the FOS filter by tuning the frequency parameters in the Bandpass IIR Filter Design block. The frequency response of the FOS filter updates accordingly.
Change the first 3-dB cutoff frequency to 0.65 rad/sample in the Bandpass IIR Filter Design block. The first tone of the sinusoidal signal is attenuated as it no longer falls in the passband region of the filter.
Filter Noisy Signal Using Second-Order Section (SOS) Bandstop Filter in Simulink
Filter a noisy sinusoidal signal using the Second-Order Section Filter block. Obtain the numerator and denominator coefficients of the SOS filter using the Bandstop IIR Filter Design block.
Tune the frequency specifications of the SOS filter during simulation.
Open and Run Model

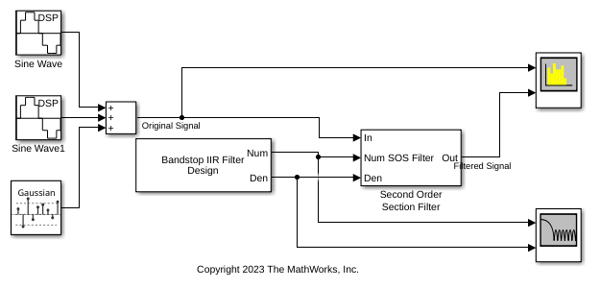

Open the secondordersection_bandstopfilter
model.
The input signal in the model is a sum of two sine waves with the frequencies of 200 Hz and 400 Hz. The sample rate is 1000 Hz and the number of samples in each frame is 1024. The Random Source block adds zero-mean white Gaussian noise with a variance of 1e-4 to the sum of the sine waves.
The Bandstop IIR Filter Design block designs a sixth-order bandstop IIR filter with the first and second 3-dB cutoff frequencies of 0.2 rad/sample and 0.75 rad/sample, respectively. The block generates coefficients as a cascade of second-order sections. Visualize the frequency response of the filter using Filter Visualizer.
Run the model.

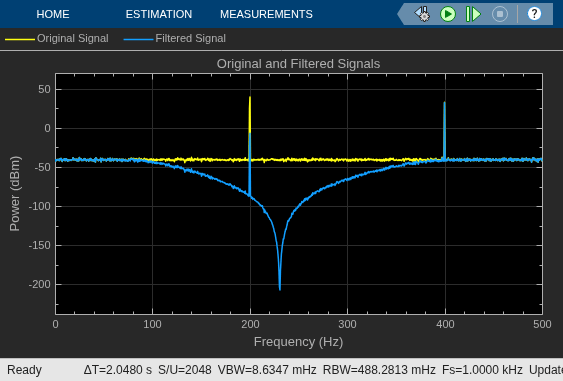

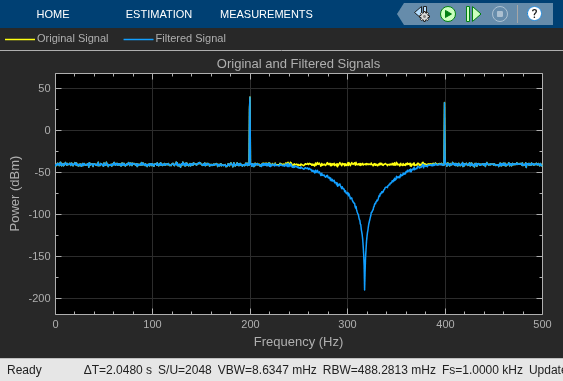

The Second-Order Section Filter block filters the noisy sinusoidal signal. Visualize the original sinusoidal signal and the filtered signal using the Spectrum Analyzer. The first tone is attenuated as it falls in the stopband region of the filter while the second tone remains unaffected as it falls in the passband region of the filter.
Tune Frequency Specification of SOS Filter
During simulation, you can tune the frequency specifications of the SOS filter by tuning the frequency parameters in the Bandstop IIR Filter Design block. The frequency response of the SOS filter updates accordingly.
Change the first 3-dB cutoff frequency to 0.5 rad/sample in the Bandstop IIR Filter Design block. The first tone of the sinusoidal signal now falls in the passband region and is therefore unattenuated.
Extended Examples
Parametric Audio Equalizer
Model an algorithm specification for a three band parametric equalizer
System Identification Using RLS Adaptive Filtering
Use a recursive least-squares (RLS) filter to identify an unknown system modeled with a lowpass FIR filter. Use the dynamic filter visualizer to compare the frequency response of the unknown and estimated systems. This example allows you to dynamically tune key simulation parameters using a user interface (UI). The example also shows you how to use MATLAB Coder™ to generate code for the algorithm and accelerate the speed of its execution.
Ports
Input
Num — Numerator coefficients
column vector | row vector | L-by-3 matrix | L-by-5 matrix
Specify the numerator coefficients of the filter as a row vector, column vector, L-by-3 matrix corresponding to a cascade of second-order sections, or an L-by-5 matrix corresponding to a cascade of fourth-order sections, where L is the number of filter sections.
If you set Num Filters to a value greater than 1, then the block displays a Num port for each filter.
When you set Filter Type to FIR
,
inputs on all Num ports must be column or row vectors.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
| enumerated
Den — Denominator coefficients
column vector | row vector | L-by-3 matrix | L-by-5 matrix
Specify the denominator coefficients of the filter as a row vector, column vector, L-by-3 matrix corresponding to a cascade of second-order sections, or an L-by-5 matrix corresponding to a cascade of fourth-order sections, where L is the number of filter sections.
If you set Num Filters to a value greater than 1, then the block displays a Den port for each filter.
Dependency
To enable this port, set Filter Type to
IIR
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
| enumerated
Parameters
Scope Tab
ConfigurationNum Filters — Number of filters to display
1
(default) | positive integer in the range [1 20]
Specify the number of filters to display as a positive integer in the range [1 20]. The value of this parameter determines the number of input ports on the block.
Programmatic Use
Block Parameter:
NumFilters |
Type: character vector or string scalar |
Values: scalar in the range [1 20] |
Filter Type — Type of filter response
FIR
(default) | IIR
Specify the filter response type as one of these options:
FIR
–– The block displays one input port per filter. You input the numerator coefficients of the filter(s) through the port(s).IIR
–– The block displays two input ports per filter. You input the numerator and the denominator coefficients of the filter(s) through the ports.
Programmatic Use
Block Parameter:
FilterType |
Type: character vector or string scalar |
Values:
'FIR' , 'IIR' |
Legend — Display signal legend
off
(default) | on
Select this option to display the legend on the plot. The legend contains the
filter names in the format
Filter:
. If you are visualizing
only one filter, the legend displays Number
Filter
. If you are visualizing
the magnitude and phase responses of multiple filters, the visualizer displays a
separate legend for each response in the format
mag(Filter:
and
Number
)phase(Filter:
, respectively.
If you are visualizing the responses of only one filter, the legend displays
Number
)mag(Filter)
and phase(Filter)
.
You can control which filters are visible in the scope using the legend. Click a filter name in the legend to hide the frequency response of that filter in the scope. To display the filter response, click the filter name again. To display only one filter response, right-click the name of that filter, which hides all other filter responses. To show all filter responses, press Esc. This setting is equivalent to changing the Visible parameter in the Scope tab > Settings () > Color and Styling.
Tunable: Yes
Programmatic Use
Block Parameter:
ShowLegend |
Type:boolean |
Magnitude Phase — Plot magnitude and phase response of filter
button
Click the button to plot the magnitude and phase response of the filter on two separate axes. Click the button again to plot only the magnitude response.
Tunable: Yes
Programmatic Use
Block Parameter:
PlotAsMagnitudePhase |
Type:boolean |
FFT Length — FFT length
2048
(default) | positive integer
Specify the FFT length that the filter visualizer uses to compute the spectral estimates as a positive integer.
Tunable: Yes
Programmatic Use
Block Parameter:
FFTLength |
Type: character vector or string scalar |
Values: scalar |
Normalized Frequency — Display the frequency response in normalized units
on
(default) | off
Select this parameter to display the frequency response of the filter in normalized frequency units.
When you select this parameter, the frequency range is [0,1] and the frequency
axis (x-axis) units switch to Normalized Frequency (×π
rad/sample)
.
When you clear this parameter, the frequency range is [0 Fs/2] and the frequency axis (x-axis) units are in Hz.
Tunable: Yes
Programmatic Use
Block Parameter:
NormalizedFrequency |
Type:boolean |
Sample Rate (Hz) — Sample rate in Hz
44100
(default) | positive scalar
Enter the sample rate as a positive scalar in Hz.
Tunable: Yes
Dependencies
To enable this parameter, clear the Normalized Frequency parameter.
Programmatic Use
Block Parameter:
SampleRate |
Type: character vector or string scalar |
Values: scalar |
Range — Frequency range
[0,1]
(default) | two-element numeric vector
Specify the frequency range as a two-element numeric vector that is monotonically increasing and of the form [fmin, fmax].
When you select the Normalized Frequency parameter, fmax is in normalized frequency units and must be a positive scalar that is less than or equal to 1. When you clear the Normalized Frequency parameter, fmax is in Hz and must be less than or equal to Fs/2, where Fs is the value you specify in the Sample Rate (Hz) parameter.
Tunable: Yes
Programmatic Use
Block Parameter:
FrequencyRange |
Type: character vector or string |
Value: two-element numeric vector |
Display Unit — Magnitude units
Magnitude (dB)
(default) | Magnitude
| Magnitude squared
Specify the magnitude units in the display as one of these:
Magnitude
Magnitude (dB)
Magnitude squared
Tunable: Yes
Programmatic Use
Block Parameter:
MagnitudeDisplay |
Type: character vector or string scalar |
Values:
'Magnitude (dB)' , 'Magnitude' ,
'Magnitude squared' |
Display Precision — Precision of data in scope display
4
(default) | positive integer ≤ 15
Since R2024b
Specify the precision of numeric values in the scope display as a positive integer in the range [1, 15].
Tunable: Yes
Title — Display title
character vector | string
Specify the display title as a character vector or a string.
Tunable: Yes
Programmatic Use
Block Parameter:
Title |
Type: character vector or string |
X-Scale — Scale of frequency axis
Linear
(default) | Log
Specify the scale of the frequency axis as 'Linear'
or
'Log'
.
Tunable: Yes
Programmatic Use
Block Parameter:
XScale |
Type: character vector or string |
Values:
'Linear' , 'Log' |
Y-Limits — y-axis limits
[−25
25
] | [ymin ymax
]
Specify the y-axis limits of the magnitude display in the
Filter Visualizer as a two-element numeric vector of the form [ymin
ymax
]. The units of the y-axis limits depend on the
Display Unit parameter.
Tunable: Yes
Programmatic Use
Block Parameter:
YLimits |
Type: character vector or string |
Value: two-element numeric vector |
Show Grid — Show internal grid lines
on
(default) | off
Select this check box to show the grid in the Filter Visualizer display.
Tunable: Yes
Programmatic Use
Block Parameter:
ShowGrid |
Type:
logical |
Plot Type — Type of plot
Line
(default) | Stairs
| Stem
Specify the type of plot to use in the filter visualizer window as one of these:
Line
–– The filter visualizer connects each point on the magnitude and phase response plot with a line.Stairs
–– The filter visualizer displays the filter response (magnitude, phase, or both) as a stair-step graph. A stair-step graph is made up of only horizontal lines and vertical lines. Each horizontal line represents the filter response over a frequency value and is connected to two vertical lines. Each vertical line represents a change in values occurring at a frequency.Stem
–– The filter visualizer displays the frequency response as circles with vertical lines extending down to the x-axis at each of the frequency values.
Tunable: Yes
Programmatic Use
Block Parameter:
PlotType |
Type: character vector or string scalar |
Values:
'Stem' , 'Line' ,
'Stairs' |
Font Size — Font size of labels
8.5
(default) | scalar in the range [1,100]
Specify the font size as a positive scalar in the range [1,100].
Tunable: Yes
Programmatic Use
Block Parameter:
- |
Type: double |
Background — Window background
black (default) | color picker
Specify the color that you want to apply to the background of the scope figure.
Tunable: Yes
Axes — Axes background color
black (default) | color picker
Specify the color that you want to apply to the background of the axes.
Tunable: Yes
Labels — Color of labels
gray (default) | color picker
Specify the color of the labels, grid, and the channel names in the legend.
Tunable: Yes
Line — Filter for line property settings
filter names
Select the filter for which you want to modify the visibility, line color, style, width, and marker properties.
Tunable: Yes
Visible — Filter visibility
on
(default) | off
Specify whether the selected filter is visible. If you clear this check box, the frequency response line disappears in the display.
You can control this parameter directly from the legend. Click a filter name in the legend to hide the frequency response of the filter in the scope. To show the filter response, click the filter name again. To show only one filter response, right-click the filter name, which hides all other filter responses. To show all filter responses, press Esc.
Tunable: Yes
Programmatic Use
Block Parameter:
Visible |
Type:
logical |
Style — Line style
-
(default) | :
| -
. | --
| None
Specify the line style for the selected filter response.
Tunable: Yes
Width — Line width
1.5
(default) | 0.5
| 1
| 2
| ...
Specify the line width for the selected filter response.
Tunable: Yes
Marker — Data point markers
None
(default) | +
| x
| ...
Specify markers for the selected filter response to show at its data points. This parameter is similar to the Marker property for plots. You can choose any of the marker symbols from the drop-down list.
Tunable: Yes
Color — Line color
yellow (default) | color picker
Specify the line color for the selected filter response.
Tunable: Yes
Copy Display — Send display to clipboard
button
Click this button to copy the scope display to the clipboard. You can preserve the color in the display by selecting Preserve Colors in the Copy Display drop down.
Preserve Colors — Preserve colors when copying to clipboard
off
(default) | on
When you copy the display to the clipboard using the Copy Display and the Print options in the Scope tab > Share section, select this parameter for the scope to preserve the colors.
To access Preserve Colors, click the drop-down arrow for Copy Display.
Tunable: Yes
Print — Print display
button
Click this button to save the scope display as an image or a PDF or to print the display.
Measurements Tab
ChannelChannel — Filter for which to obtain measurements
Filter
(default) | filter name
Choose the filter response for which you need to obtain measurements. The filter
names are in the format Filter:
.
If you are visualizing only one filter, the legend displays Number
Filter
.
If you are visualizing the magnitude and phase responses of multiple filters, the
visualizer displays a separate name for each response in the format
mag(Filter:
and
Number
)phase(Filter:
, respectively.
If you are visualizing the responses of only one filter, the legend becomes
Number
)mag(Filter)
and phase(Filter)
.
Tunable: Yes
Dependency
To enable this parameter, pass some data through the scope.
Data Cursors — Enable cursor measurements
button
Click the Data Cursors button to enable data cursor measurements. Each cursor tracks a vertical line along the frequency response. The scope displays the difference between frequency(x) values and frequency response (y) values of the filter at the two cursors in the box between the cursors.
Tunable: Yes
Snap to data — Snap cursors to data
off
(default) | on
Select this parameter to position the cursors on the signal data points.
Tunable: Yes
Lock cursor spacing — Lock cursor spacing
off
(default) | on
Select this parameter to lock the frequency difference between the two cursors.
Tunable: Yes
Peak Finder — Enable peak finder measurements
button
Select Peak Finder to enable peak finder measurements. An arrow appears on the plot at each maxima and a Peaks panel appears at the bottom of the scope window.
Tunable: Yes
Num Peaks — Maximum number of peaks to show
3
(default) | positive integer less than 100
Specify the maximum number of peaks to show as a positive integer less than 100.
Tunable: Yes
Min Height — Level above which scope detects peaks
-Inf
(default) | real scalar value
Specify the level above which the scope detects peaks as a real scalar.
Tunable: Yes
Min Distance — Minimum number of samples between adjacent peaks
1
(default) | positive integer
Specify the minimum number of samples between adjacent peaks as a positive integer.
Tunable: Yes
Threshold — Minimum difference in height of peak and its neighboring samples
0
(default) | nonnegative scalar
Specify the minimum difference in the height of the peak and its neighboring samples as a nonnegative scalar.
Tunable: Yes
Label Peaks — Label peaks
button
Select Label Peaks to label the peaks. The scope displays the labels (P1, P2, …) above the arrows in the plot.
Tunable: Yes
Property Inspector Only
Filter Names — Input filter names
[]
(default) | character vector | string | array of strings or character vectors.
Input filter names, specified as a character vector, string, or array of either.
The names appear in the legend, Filter Visualizer Settings, and
Measurements panels. If you do not specify filter names, the
block displays the filter names as Filter: 1
, Filter:
2
, etc.
Dependency
To see the filter names, select Legend in the Scope tab.
Programmatic Use
Block Parameter:
FilterNames |
Type: cell array of character vectors or string array |
Maximize Axes — Maximize size of plots
Auto
(default) | Off
| On
Auto
— If you do not specify Title and y-label, maximize all plots by default.On
— Maximize all plots and hide Title and y-label.Off
— Do not maximize plots.
Point anywhere in the Filter Visualizer to see the maximize axes button .
Tunable: Yes
Programmatic Use
Block Parameter:
MaximizeAxes |
Type: character vector or string scalar |
Axes Scaling — Y-axis scaling mode
Auto
(default) | Manual
| Updates
| OnceAtStop
Auto
— The filter visualizer scales the axes as needed to fit the data, both during and after simulation.Manual
— The filter visualizer does not scale the axes automatically.Updates
— The filter visualizer scales the axes limits once after completing the number of visual updates specified in the Number of Updates text box (100
by default). Scaling occurs only once during each run.OnceAtStop
— The filter visualizer scales the axes when the simulation stops.
Tunable: Yes
Programmatic Use
Block Parameter:
AxesScaling |
Type: character vector or string scalar |
Number of Updates — Number of updates before scaling
100
(default) | integer
Set this property to delay auto scaling the y-axis.
Tunable: Yes
Dependency
To enable this property, set Axes Scaling to
Updates
.
Programmatic Use
Block Parameter:
AxesScalingNumUpdates |
Type: character vector or string scalar |
Values: scalar |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
More About
Cursor Measurements
Measure signal values using vertical waveform cursors that track along the signal.
When you click the Data Cursors button in the Measurements tab of the Filter Visualizer, the display shows vertical cursors on the filter response curve that you choose in the Channel section. Each cursor tracks a vertical line along the curve. The scope displays the difference between x- and y-values of the curve at the two cursors in the box between the cursors.
To enable cursor measurements, you must select the Data Cursors button in the Measurements tab. The cursors appear only when the Filter Visualizer has at least one frequency response in its display.
You can use the mouse to move the vertical cursors to the left or to the right.
On the Measurements tab, click the Data Cursors drop-down list and you can select:
Snap to Data — To position the cursors on frequency response data points.
Lock Cursor Spacing — To lock the frequency difference between the two cursors.
For modifying the cursor measurements programmatically, see the dsp.DynamicFilterVisualizer
object. For more information on cursor measurements,
see the CursorMeasurementsConfiguration
object.
Peak Finder Measurements
Compute and display peak values on the scope display.
When you click on the Peak Finder button in the Measurements tab of the Filter Visualizer, an arrow appears on the plot at each maxima and a Peaks panel appears at the bottom of the scope window. The Filter Visualizer computes peaks from the portion of the filter response that is currently on display in the scope, and the Peaks panel shows the peak values and the frequencies at which these peaks occur.
The Peaks section in the Measurements tab allows you to specify the number of peaks you want the scope to display, the minimum height above which you want the scope to detect peaks, the minimum distance between peaks, and label the peaks.
The Filter Visualizer algorithm defines a peak as a local maximum with lower values
present on either side of the peak. It does not consider end points as peaks. For more
information on the algorithm, see the findpeaks
function.
For modifying the peak finder measurements programmatically, use the dsp.DynamicFilterVisualizer
object. For more information on peak finder
measurements, see the PeakFinderConfiguration
object. For more information on these settings in the
UI, see Peaks.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block can be used for simulation visibility in systems that generate code, but is not included in the generated code.
Version History
Introduced in R2023aR2024b: Higher display precision in scope UI
You can now increase the display precision to 15 digits using the Display Precision property in the scope settings under Display and Labels. This precision affects all the measurements and data that the scope displays on its status bar.
R2024b: Preserve Colors is now available in scope toolstrip
The Preserve colors for copy to clipboard property has been renamed to Preserve Colors and is now available in the scope toolstrip under Copy Display.
See Also
Objects
Blocks
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
