Delete Logic Analyzer cursor
deleteCursor(scope,tag)
example
deleteCursor(scope,tag) deletes the Logic Analyzer cursor specified by the input tag.
scope
tag
collapse all
This example shows how to use functions to create, manipulate, and delete cursors in a dsp.LogicAnalyzer object.
dsp.LogicAnalyzer
Create Logic Analyzer and Signals
scope = dsp.LogicAnalyzer('NumInputPorts',3); for ii = 1:20 scope(ii,10*ii,20*ii); end
Add Cursor

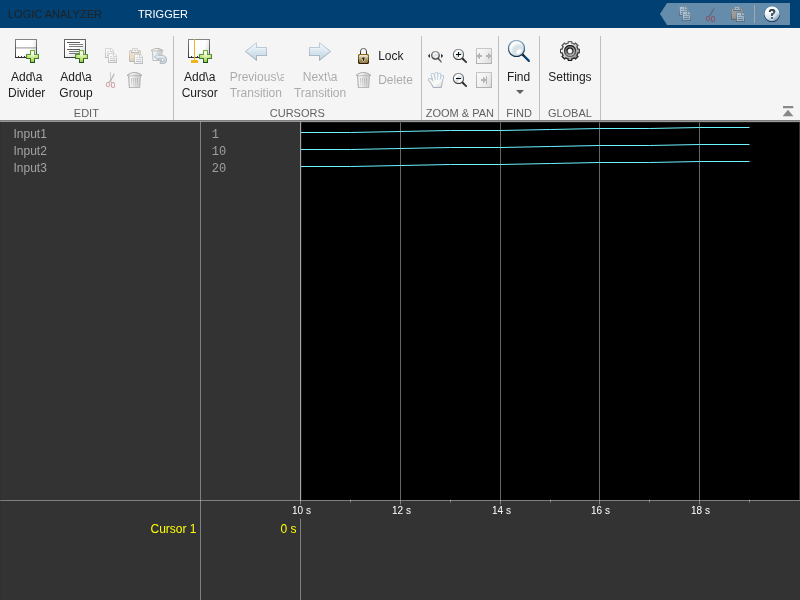

cursor = addCursor(scope,'Location',15,'Color','Cyan'); getCursorInfo(scope,cursor)
ans = struct with fields: Location: 15 Color: [0 1 1] Locked: 0 Tag: 'C2'
Modify Cursor

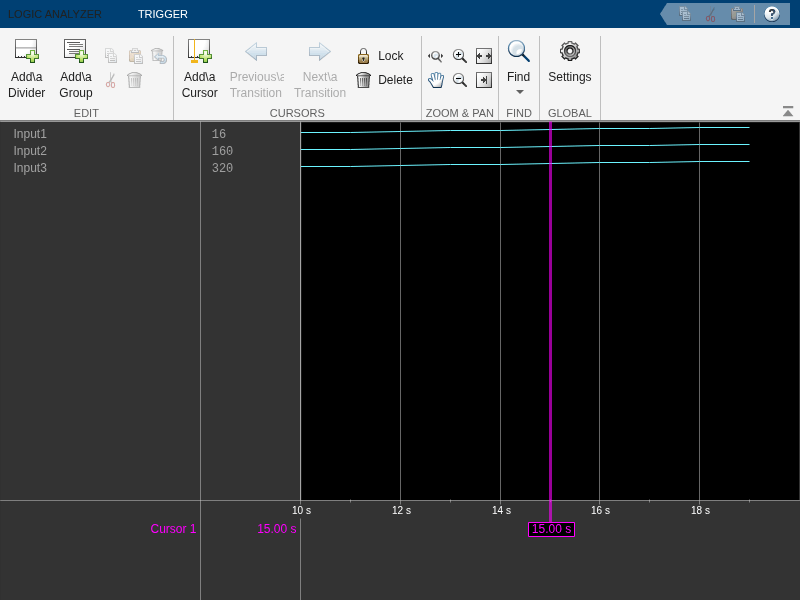

modifyCursor(scope,cursor,'Color','Magenta')
Remove Cursor
tags = getCursorTags(scope); deleteCursor(scope,tags{1});
The Logic Analyzer object from which you want to delete a cursor, specified as a handle to the dsp.LogicAnalyzer object.
The tag identifying which cursor to delete, specified as a randomly assigned character vector.
Example: deleteCursor(scope,tag) deletes a cursor from Logic Analyzer.
Data Types: char | string
char
string
addCursor | deleteDisplayChannel | dsp.LogicAnalyzer | getCursorInfo | getCursorTags | modifyCursor
addCursor
deleteDisplayChannel
getCursorInfo
getCursorTags
modifyCursor
