step
Display time-varying magnitude response
Description
Examples
Plot Time-Varying Magnitude and Phase Response of FIR Filter
Design an FIR filter with a time-varying magnitude and phase response. Plot this varying response on a dynamic filter visualizer in normalized frequency units.
Create a dsp.DynamicFilterVisualizer
object. Set the PlotAsMagnitudePhase
and the NormalizedFrequency
properties to true
.
dfv = dsp.DynamicFilterVisualizer(PlotAsMagnitudePhase=1,... NormalizedFrequency=true,ShowLegend=true,... Title='Magnitude and Phase Response',... FilterNames="FIR Filter")
dfv = dsp.DynamicFilterVisualizer handle with properties: FFTLength: 2048 NormalizedFrequency: 1 FrequencyRange: [0 1] XScale: 'Linear' MagnitudeDisplay: 'Magnitude (dB)' PlotAsMagnitudePhase: 1 PlotType: 'Line' AxesScaling: 'Auto' Show all properties
Vary the cutoff frequency of the FIR filter k from 0.1
to 0.5
in increments of 0.001

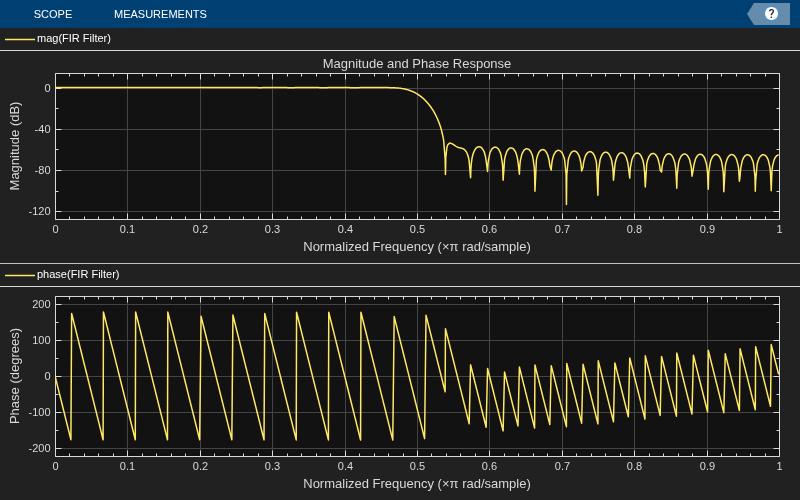

. View the varying magnitude and phase response using the dynamic filter visualizer.
for k = 0.1:0.001:0.5 b = designLowpassFIR(FilterOrder=90,CutoffFrequency=k); dfv(b,1); end
Plot Time-Varying Magnitude Response of Variable Bandwidth FIR Filter
Visualize the varying magnitude response of the variable bandwidth FIR filter using the dynamic filter visualizer.
Create a dsp.DynamicFilterVisualizer
object.
dfv = dsp.DynamicFilterVisualizer(YLimits=[-160 10],... FilterNames="Variable Bandwidth FIR Filter")
dfv = dsp.DynamicFilterVisualizer handle with properties: FFTLength: 2048 NormalizedFrequency: 0 SampleRate: 44100 FrequencyRange: [0 22050] XScale: 'Linear' MagnitudeDisplay: 'Magnitude (dB)' PlotAsMagnitudePhase: 0 PlotType: 'Line' AxesScaling: 'Manual' Show all properties
Design a bandpass variable bandwidth FIR filter with a center frequency of 5 kHz and a bandwidth of 4 kHz.
Fs = 44100; vbw = dsp.VariableBandwidthFIRFilter(FilterType='Bandpass',... FilterOrder=100,... SampleRate=Fs,... CenterFrequency=5e3,... Bandwidth=4e3);

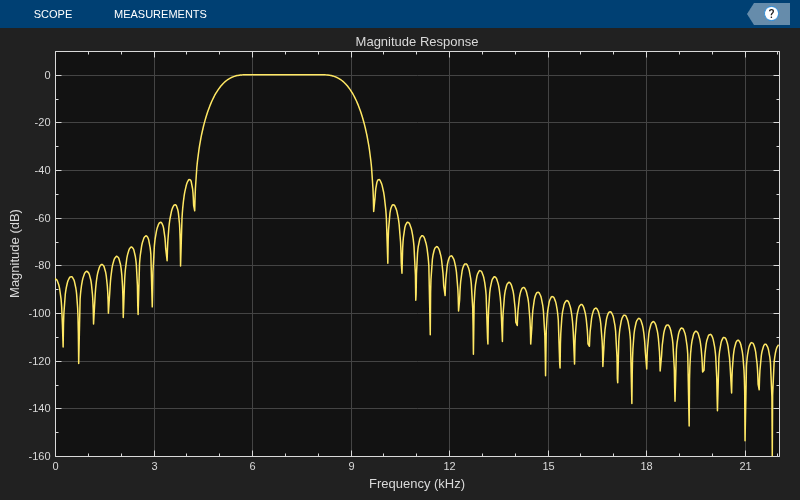

Vary the center frequency of the filter. Visualize the varying magnitude response of the filter using the dsp.DynamicFilterVisualizer
object.
for idx = 1:100 dfv(vbw); vbw.CenterFrequency = vbw.CenterFrequency + 20; end
Input Arguments
dfv
— Dynamic filter visualizer
dsp.DynamicFilterVisualizer
object
dsp.DynamicFilterVisualizer
Dynamic filter visualizer, specified as a dsp.DynamicFilterVisualizer
object.
filt
— Filter
filter System object™
Filter System object with a valid freqz()
implementation.
B
— Numerator polynomial coefficients
row vector
Numerator polynomial coefficients, specified as a row vector.
Data Types: single
| double
A
— Denominator polynomial coefficients
scalar | row vector
Denominator polynomial coefficients, specified as a:
scalar –– The filter is an FIR filter.
row vector –– The filter is an IIR filter.
Data Types: single
| double
Version History
Introduced in R2018b
