Allpole Filter
Model allpole filters
Libraries:
DSP System Toolbox /
Filtering /
Filter Implementations
Description
The Allpole Filter block independently filters each channel of the input signal with the specified allpole filter. The block can implement static filters with fixed coefficients and timevarying filters with coefficients that change over time. You can tune the coefficients of a static filter during simulation.
This block filters each channel of the input signal independently over time. The Input processing parameter allows you to specify whether the block treats each element of the input as an independent channel (samplebased processing), or each column of the input as an independent channel (framebased processing).
This block supports the Simulink^{®} state logging feature. See State (Simulink) for more information.
Examples

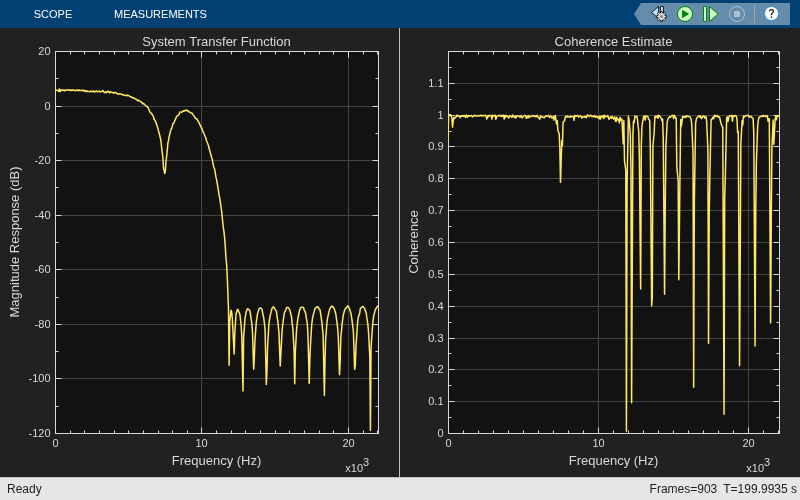

Estimate Transfer Function in Simulink
To estimate the transfer function of a system in Simulink®, use the Discrete Transfer Function Estimator block. The block implements the Welch's average modified periodogram method and uses the measured input and output data for estimation.
Ports
Input
In — Data input
vector  matrix
Specify the data input as a vector or a matrix. The block accepts variablesize inputs. During simulation, you can change the size of each input channel, but the number of channels must remain the same.
The data input and the filter coefficients must have the same data type.
If the input is fixed point, it must be a signed integer or a signed fixed point value with a poweroftwo slope and zero bias.
This port is unnamed until you set Coefficient
source to Input port
.
Data Types: single
 double
 int8
 int16
 int32
 fixed point
Complex Number Support: Yes
Den — Filter denominator coefficients
scalar  row vector
Specify the denominator coefficients of the filter transfer function as a scalar or a row vector. The data input and the filter coefficients must have the same data type.
Dependencies
To enable this port, set Coefficient source
to Input port
.
Data Types: single
 double
 int8
 int16
 int32
 fixed point
Complex Number Support: Yes
Output
Out — Filtered output
vector  matrix
Filtered output, returned as a vector or a matrix. The size, data type, and complexity of the output signal matches that of the input signal.
This port is unnamed until you set Coefficient
source to Input port
.
Data Types: single
 double
 int8
 int16
 int32
 fixed point
Complex Number Support: Yes
Parameters
Main Tab
Coefficient source — Coefficient source
Dialog parameters
(default)  Input port
Select whether you want to specify the filter coefficients in the block mask or through an input port.
Filter structure — Specify filter structure
Direct form
(default)  Direct form transposed
 Lattice AR
Specify the filter structure as one of these:
Direct form
Direct form transposed
Lattice AR
The block does not support analysis methods for fixedpoint processing if you specify
the structure as Direct form
or
Direct form transposed
.
Coefficients — Filter denominator coefficients
[1 0.1] (default)  scalar  row vector
Specify the denominator coefficients of the filter transfer function as a scalar or a row vector.
Tunable: Yes
Dependencies
To enable this parameter, set Coefficient
source to Dialog
parameters
.
Input processing — Input processing
Columns as channels (frame
based)
(default)  Elements as channels (sample
based)
Specify whether the block performs sample or framebased processing. You can select one of the following options:
Columns as channels (frame based)
— Treat each column of the input as an independent channel (framebased processing).Elements as channels (sample based)
— Treat each element of the input as an independent channel (samplebased processing).
Initial states — Initial conditions of filter states
0
(default)  scalar  vector  matrix
Specify the initial conditions of the filter states as a scalar, vector, or a matrix.
The Allpole Filter block initializes the internal filter states to zero by default, which has the same effect as assuming that past inputs and outputs are zero. You can optionally use this parameter to specify nonzero initial conditions for the filter delays.
To determine the number of initial states you must specify and how to specify them, see the table on valid initial states. The Initial states parameter can take one of the forms described in this table.
Valid Initial States
Initial Condition  Description

Scalar  The block initializes all delay elements in the filter to the scalar value.
Vector or matrix  Each vector or matrix element specifies a unique initial condition for a corresponding delay element in a corresponding channel:

Data Types Tab
Coefficients — Coefficient data type
Inherit: Same word length as
input
(default)  int8
 uint8
 int16
 uint16
 int32
 uint32
 int64
 uint64
 fixdt(1,16)
 fixdt(1,16,0)
Specify the coefficient data type. You can set it to:
A rule that inherits a data type, for example,
Inherit: Same word length as input
A builtin integer, for example,
int8
A data type object, for example, a
Simulink.NumericType
objectAn expression that evaluates to a data type, for example,
fixdt(1,16,0)
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the Coefficients parameter.
See Specify Data Types Using Data Type Assistant (Simulink) for more information.
Coefficients Minimum — Minimum value of filter coefficients
[]
(default)  scalar
Specify the minimum value of the filter coefficients. The default value is
[]
(unspecified). Simulink software uses this value to perform:
Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters (Simulink))
Automatic scaling of fixedpoint data types
Coefficients Maximum — Maximum value of filter coefficients
[]
(default)  scalar
Specify the maximum value of the filter coefficients. The default value is
[]
(unspecified). Simulink software uses this value to perform:
Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters (Simulink))
Automatic scaling of fixedpoint data types
Product output — Product output data type
Inherit: Inherit via internal
rule
(default)  Inherit: Same as input
 int8
 uint8
 int16
 uint16
 int32
 uint32
 int64
 uint64
 fixdt(1,16,0)
Specify the product output data type. You can set it to:
A rule that inherits a data type, for example,
Inherit: Inherit via internal rule
. For more information on this rule, see Inherit via Internal Rule.A builtin data type, for example,
int8
A data type object, for example, a
Simulink.NumericType
objectAn expression that evaluates to a data type, for example,
fixdt(1,16,0)
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the Product output parameter.
See Specify Data Types Using Data Type Assistant (Simulink) for more information.
Accumulator — Accumulator data type
Inherit: Inherit via internal
rule
(default)  Inherit: Same as input
 Inherit: Same as product output
 int8
 uint8
 int16
 uint16
 int32
 uint32
 int64
 uint64
 fixdt(1,16,0)
Specify the accumulator data type. You can set it to:
A rule that inherits a data type, for example,
Inherit: Inherit via internal rule
. For more information on this rule, see Inherit via Internal Rule.A builtin data type, for example,
int8
A data type object, for example, a
Simulink.NumericType
objectAn expression that evaluates to a data type, for example,
fixdt(1,16,0)
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the Accumulator parameter.
See Specify Data Types Using Data Type Assistant (Simulink) for more information.
State — State data type
Inherit: Same as
accumulator
(default)  Inherit: Same as input
 int8
 uint8
 int16
 uint16
 int32
 uint32
 int64
 uint64
 fixdt(1,16,0)
Specify the state data type. You can set it to:
A rule that inherits a data type, for example,
Inherit: Same as accumulator
A builtin integer, for example,
int8
A data type object, for example, a
Simulink.NumericType
objectAn expression that evaluates to a data type, for example,
fixdt(1,16,0)
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the State parameter.
See Specify Data Types Using Data Type Assistant (Simulink) for more information.
Dependencies
To enable this parameter, set Filter
structure to Lattice
AR
.
Output — Output data type
Inherit: Same as
input
(default)  Inherit: Same as accumulator
 int8
 uint8
 int16
 uint16
 int32
 uint32
 int64
 uint64
 fixdt(1,16)
 fixdt(1,16,0)
Specify the output data type. You can set it to:
A rule that inherits a data type, for example,
Inherit: Same as accumulator
A builtin data type, for example,
int8
A data type object, for example, a
Simulink.NumericType
objectAn expression that evaluates to a data type, for example,
fixdt(1,16,0)
Click the Show data type assistant button to display the Data Type Assistant, which helps you set the Output parameter.
See Control Data Types of Signals (Simulink) for more information.
Output Minimum — Output minimum
[]
(default)  scalar
Specify the minimum value that the block must output. The default value is
[]
(unspecified). Simulink software uses this value to perform:
Simulation range checking (see Specify Signal Ranges (Simulink))
Automatic scaling of fixedpoint data types
Output Maximum — Output maximum
[]
(default)  scalar
Specify the maximum value that the block must output. The default value is
[]
(unspecified). Simulink software uses this value to perform:
Simulation range checking (see Specify Signal Ranges (Simulink))
Automatic scaling of fixedpoint data types
Lock data type settings against changes by the fixedpoint tools — Prevent fixedpoint tools from overriding data types
off
(default)  on
Select this parameter to prevent the fixedpoint tools from overriding the data types you specify in the block dialog box.
Integer rounding mode — Integer rounding mode
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Simplest
 Zero
Specify the rounding mode for fixedpoint operations.
Saturate on integer overflow — Saturate on integer overflow
off
(default)  on
When you select this check box, the block applies saturation to every internal operation and not just the output or result. In general, the code generation process can detect when overflow is not possible. In this case, the code generator does not produce saturation code.
Action  Reasons for Taking This Action  What Happens for Overflows  Example

Select this check box.  Your model has possible overflow and you want explicit saturation protection in the generated code.  Overflows saturate to either the minimum or maximum value that the data type can represent.  An overflow associated with a signed 8bit integer can saturate to 128 or 127.
Do not select this check box.  You want to optimize efficiency of your generated code. You want to avoid overspecifying how a block handles outofrange signals. For more information, see Troubleshoot Signal Range Errors (Simulink).  Overflows wrap to the appropriate value that is representable by the data type.  The number 130 does not fit in a signed 8bit integer and wraps to 126.
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

^{a} This block only supports signed fixedpoint data types.
More About

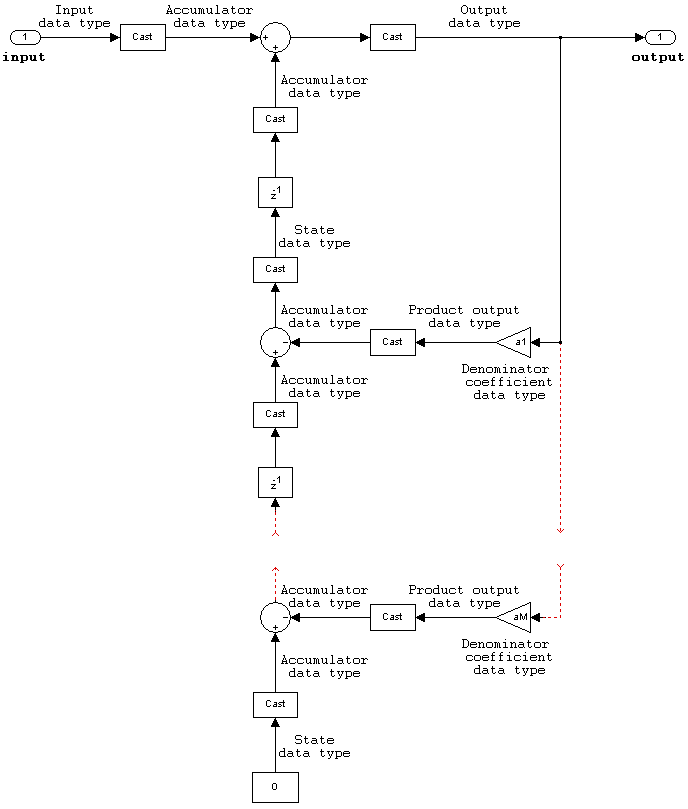

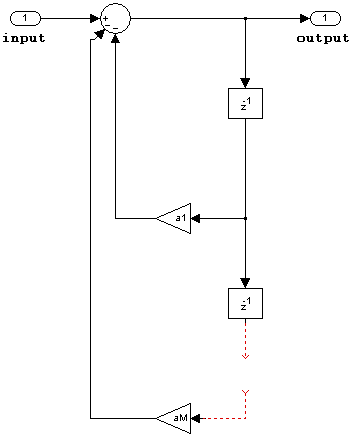

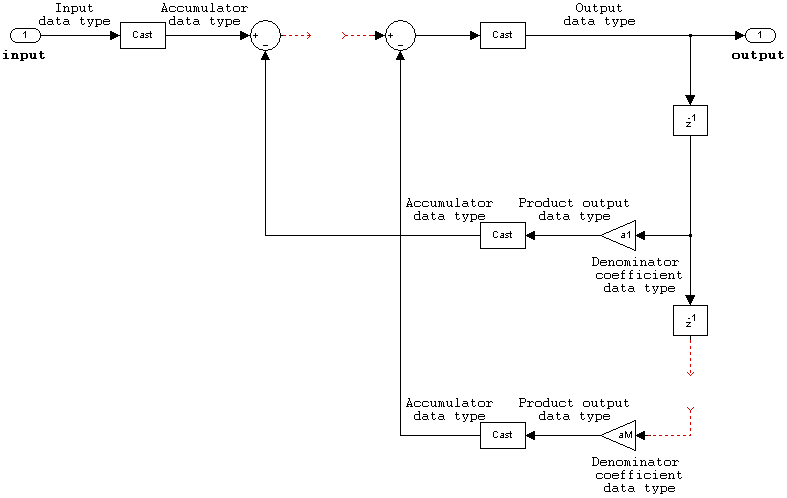

Filter Structure Diagrams
These diagrams show the filter structure and the data types used within the Allpole Filter block for fixedpoint signals.
You cannot specify the state data type on the block mask for this structure because the output states have the same data types as the output.
States are complex when either the inputs or the coefficients are complex.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
FixedPoint Conversion
Design and simulate fixedpoint systems using FixedPoint Designer™.
Version History
Introduced in R2011b
