Pole and Zero Locations
This example shows how to examine the pole and zero locations of dynamic systems both graphically using
pzplot and numerically using
Examining the pole and zero locations can be useful for tasks such as stability analysis or identifying near-canceling pole-zero pairs for model simplification. This example compares two closed-loop systems that have the same plant and different controllers.
Create dynamic system models representing the two closed-loop systems.
G = zpk(,[-5 -5 -10],100); C1 = pid(2.9,7.1); CL1 = feedback(G*C1,1); C2 = pid(29,7.1); CL2 = feedback(G*C2,1);
C2 has a much higher proportional gain. Otherwise, the two closed-loop systems
CL2 are the same.
Graphically examine the pole and zero locations of

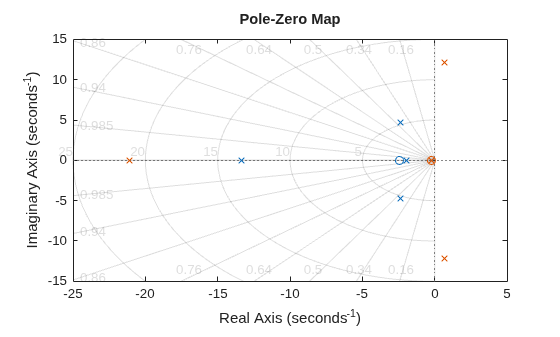

pzplot plots pole and zero locations on the complex plane as
o marks, respectively. When you provide multiple models,
pzplot plots the poles and zeros of each model in a different color. Here, there poles and zeros of
CL1 are blue, and those of
CL2 are green.
The plot shows that all poles of
CL1 are in the left half-plane, and therefore
CL1 is stable. From the radial grid markings on the plot, you can read that the damping of the oscillating (complex) poles is approximately 0.45. The plot also shows that
CL2 contains poles in the right half-plane and is therefore unstable.
Compute numerical values of the pole and zero locations of
z = zero(CL2); p = pole(CL2);
pole return column vectors containing the zero and pole locations of the system.
