# GSM TDMA Frame Parameterization for Waveform Generation

This example shows how to parameterize and generate different GSM TDMA frames and multiframe structures.

### Introduction

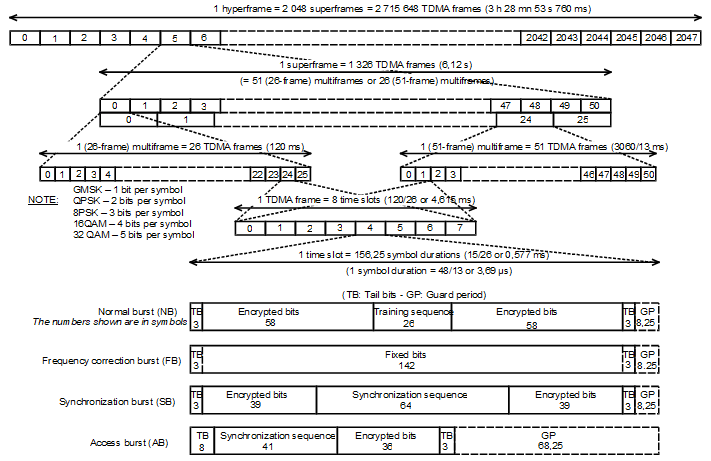

The GSM standard [1] specifies a TDMA frame as a combination of 8 time slots. Each time slot has a duration of 3/5200 seconds (about 0.577 ms) and a time slot number (TN) from 0 to 7. GSM frames use GMSK modulation, where one symbol is equivalent to one bit. Each time slot is 156.25 bits long. The content of a time slot is called a burst. The transmission timing of a burst within a time slot is defined in terms of the bit number. The bit number (BN) refers to a particular bit period within a time slot. The bit with the lowest bit number is transmitted first. BN0 is the first bit period and BN156 is the last quarter-bit period. This figure shows time frames, time slots, and bursts for a GSM system [1].

A TDMA contains eight time slots with each timeslot separated by a guard period. Each time slot can carry only one type of burst. Available burst type are: normal burst (NB), frequency correction burst (FB), synchronization burst (SB), access burst (AB), or dummy burst [2]. The different burst types and the guard period are described in these next sections.

#### Normal Burst (NB)

The normal burst consists of these bit fields and can appear in uplink or downlink frames. All tail bits are zero. Based on the specified training sequence code (TSC), the training sequence field contains one of eight possible training sequences.

`normalBurstDescription()`
```ans=6×3 table BitNumber LengthOfField ContentsOfField ___________ _____________ ________________________ "0 - 2" {[ 3]} "tail bits" "3 - 60" {[ 58]} "encrypted bits" "61 - 86" {[ 26]} "training sequence bits" "87 - 144" {[ 58]} "encrypted bits" "145 - 147" {[ 3]} "tail bits" "148 - 156" {[8.2500]} "guard period (bits)" ```

#### Access Burst (AB)

The access burst consists of these bit fields and can appear in uplink frames only. All tail bits are zero.

`accessBurstDescription()`
```ans=5×3 table BitNumber LengthOfField ContentsOfField __________ _____________ ______________________ "0 - 7" {[ 8]} "extended tail bits" "8 - 48" {[ 41]} "synch. sequence bits" "49 - 84" {[ 36]} "encrypted bits" "85 - 87" {[ 3]} "tail bits" "88 - 156" {[68.2500]} "guard period (bits)" ```

#### Frequency Correction Burst (FB)

The frequency correction burst consists of these bit fields and can appear in downlink frames only. All tail bits and fixed bits are zero. Modulating all zeros with the GMSK modulator results in a constant phase rotation of -90 degrees for each symbol duration. Therefore, this burst generates an unmodulated carrier with a positive frequency offset of 1625/24 kHz.

`frequencyCorrectionBurstDescription()`
```ans=4×3 table BitNumber LengthOfField ContentsOfField ___________ _____________ _____________________ "0 - 2" {[ 3]} "tail bits" "3 - 144" {[ 142]} "fixed bits" "145 - 147" {[ 3]} "tail bits" "148 - 156" {[8.2500]} "guard period (bits)" ```

#### Synchronization Burst (SB)

The synchronization burst consists of these bit fields and can appear in downlink frames only. All tail bits are zero.

`synchronizationBurstDescription()`
```ans=6×3 table BitNumber LengthOfField ContentsOfField ___________ _____________ _________________________________ "0 - 2" {[ 3]} "tail bits" "3 - 41" {[ 39]} "encrypted bits" "42 - 105" {[ 64]} "extended training sequence bits" "106 - 144" {[ 39]} "encrypted bits" "145 - 147" {[ 3]} "tail bits" "148 - 156" {[8.2500]} "guard period (bits)" ```

#### Dummy Burst

The dummy burst burst consists of these bit fields and can appear in downlink frames only. All tail bits are zero. Mixed bits contain a predetermined sequence of ones and zeros.

`dummyBurstDescription()`
```ans=4×3 table BitNumber LengthOfField ContentsOfField ___________ _____________ _____________________ "0 - 2" {[ 3]} "tail bits" "3 - 144" {[ 142]} "mixed bits" "145 - 147" {[ 3]} "tail bits" "148 - 156" {[8.2500]} "guard period (bits)" ```

#### Guard Period

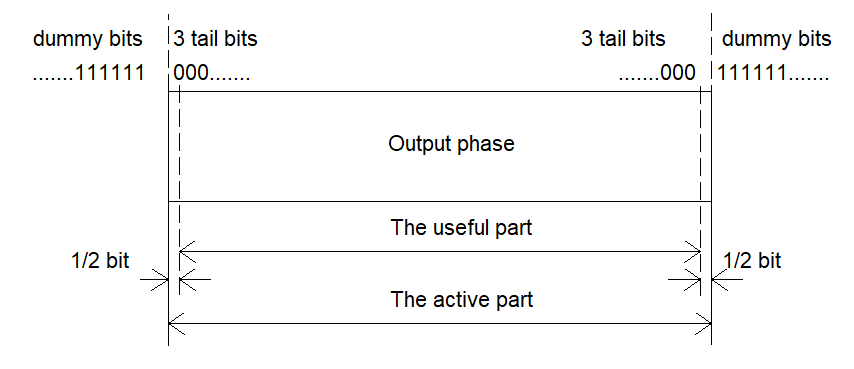

The GSM standard, [3], requires mobile stations to attenuate their transmission during the period between bursts. The ramp-up and ramp-down of the signal power level occurs during the guard periods. The useful part of a burst starts half way through the bit number 0. The useful part ends halfway through BN87 for ABs and BN147 for NBs, FBs, SBs,and dummy bursts. This figure shows the useful and active parts of a burst.

Configure an uplink GSM TDMA frame using the `gsmUplinkConfig` object.

`cfg = gsmUplinkConfig()`
```cfg = gsmUplinkConfig with properties: BurstType: [NB NB NB NB NB NB NB NB] SamplesPerSymbol: 16 TSC: [0 1 2 3 4 5 6 7] Attenuation: [0 0 0 0 0 0 0 0] RiseTime: 2 RiseDelay: 0 FallTime: 2 FallDelay: 0 Read-only properties: No properties. ```

Set time slots 2 and 5 to carry access bursts. Since MATLAB array indices start from 1, but time slots start from 0, set the third and sixth elements of the `BurstType` to `"AB"`.

`cfg.BurstType([2 5] +1) = "AB"`
```cfg = gsmUplinkConfig with properties: BurstType: [NB NB AB NB NB AB NB NB] SamplesPerSymbol: 16 TSC: [0 1 2 3 4 5 6 7] Attenuation: [0 0 0 0 0 0 0 0] RiseTime: 2 RiseDelay: 0 FallTime: 2 FallDelay: 0 Read-only properties: No properties. ```

Assign training sequence codes 3, 5, 1, 7, 0, and 2 to time slots 0, 1, 3, 4, 6, and 7, respectively.

`cfg.TSC([0 1 3 4 6 7] +1) = [3 5 1 7 0 2]`
```cfg = gsmUplinkConfig with properties: BurstType: [NB NB AB NB NB AB NB NB] SamplesPerSymbol: 16 TSC: [3 5 2 1 7 5 0 2] Attenuation: [0 0 0 0 0 0 0 0] RiseTime: 2 RiseDelay: 0 FallTime: 2 FallDelay: 0 Read-only properties: No properties. ```

Generate the baseband samples of the frame using the `gsmFrame` function.

`x = gsmFrame(cfg);`

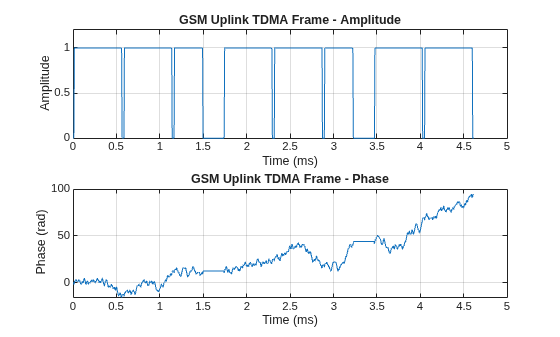

Plot the frame. Get the sample rate of the generated waveform by using the `gsmInfo` function, and then calculate the time axis values in ms. The plot shows 8 bursts in the frame, with guard periods between each burst. As described in the Access Burst (AB) section, ABs are short burst and have a wider guard period than other bursts.

```wfInfo = gsmInfo(cfg); Rs = wfInfo.SampleRate; t = (0:length(x) - 1)/Rs*1e3; subplot(2,1,1) plot(t,abs(x)) grid on axis([0 5 0 1.2]) title('GSM Uplink TDMA Frame - Amplitude') xlabel('Time (ms)') ylabel('Amplitude') subplot(2,1,2) plot(t,unwrap(angle(x))) grid on title('GSM Uplink TDMA Frame - Phase') xlabel('Time (ms)') ylabel('Phase (rad)')```

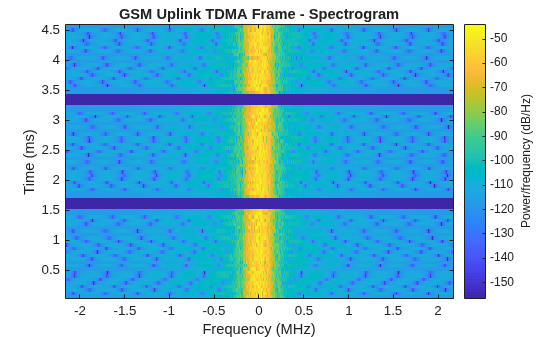

Plot the spectrogram of the frame.

```figure spectrogram(x,500,[],[],Rs,'centered') title('GSM Uplink TDMA Frame - Spectrogram')```

Configure a downlink GSM TDMA frame using the `gsmDownlinkConfig` object.

`cfg = gsmDownlinkConfig`
```cfg = gsmDownlinkConfig with properties: BurstType: [NB NB NB NB NB NB NB NB] SamplesPerSymbol: 16 TSC: [0 1 2 3 4 5 6 7] Attenuation: [0 0 0 0 0 0 0 0] RiseTime: 2 RiseDelay: 0 FallTime: 2 FallDelay: 0 Read-only properties: No properties. ```

Set time slots 0 to carry a frequency correction burst, set time slots 4 and 6 to carry dummy bursts, and set time slot 2 to be empty.

```cfg.BurstType(0 +1) = "FB"; cfg.BurstType([4 6] +1) = "Dummy"; cfg.BurstType(2 +1) = "Off"```
```cfg = gsmDownlinkConfig with properties: BurstType: [FB NB Off NB Dummy NB Dummy NB] SamplesPerSymbol: 16 TSC: [0 1 2 3 4 5 6 7] Attenuation: [0 0 0 0 0 0 0 0] RiseTime: 2 RiseDelay: 0 FallTime: 2 FallDelay: 0 Read-only properties: No properties. ```

Generate the baseband samples of the frame using the `gsmFrame` function. This function inserts random bits instead of encrypted bits.

`x = gsmFrame(cfg);`

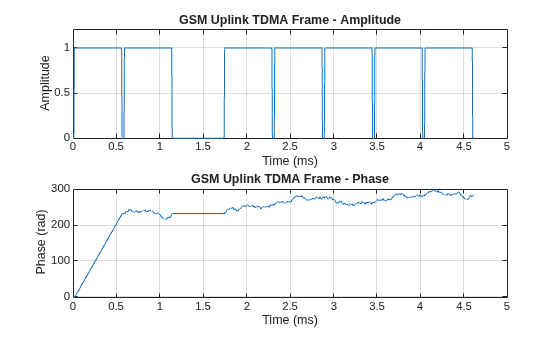

Plot the frame.

```wfInfo = gsmInfo(cfg); Rs = wfInfo.SampleRate; t = (0:length(x) - 1)/Rs*1e3; subplot(2,1,1) plot(t,abs(x)) grid on axis([0 5 0 1.2]) title('GSM Uplink TDMA Frame - Amplitude') xlabel('Time (ms)');ylabel('Amplitude') subplot(2,1,2) plot(t,unwrap(angle(x))) grid on title('GSM Uplink TDMA Frame - Phase') xlabel('Time (ms)') ylabel('Phase (rad)')```

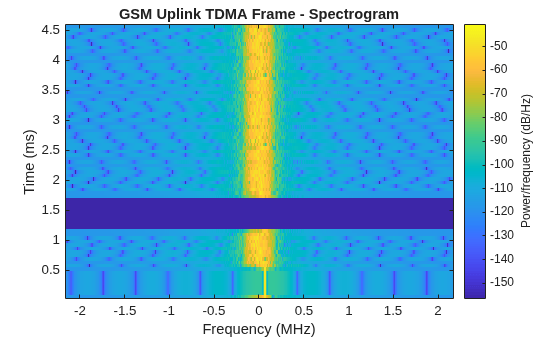

Plot the spectrogram of the frame. This plot shows the single tone during time slot 0 due to the FB.

```figure spectrogram(x,500,[],[],Rs,'centered') title('GSM Uplink TDMA Frame - Spectrogram')```

### Generate Multiframe Structure

Create a 51-frame multiframe structure, as shown in the figure in the Introduction section. Create three `gsmDownlinkConfig` objects with specified burst configurations. To assembly the 51-frame multiframe, use the first and second `gsmDownlinkConfig` objects once and repeat the third `gsmDownlinkConfig` objects for the next 49 frames. Repeat the multiframe structure 3 times.

```cfg1 = gsmDownlinkConfig('BurstType',["FB" "NB" "NB" "NB" "NB" "Dummy" "NB" "NB"]); cfg2 = gsmDownlinkConfig('BurstType',["SB" "NB" "NB" "NB" "NB" "Dummy" "NB" "NB"]); cfg3 = gsmDownlinkConfig('BurstType',["NB" "NB" "NB" "NB" "NB" "Dummy" "NB" "NB"]); wfInfo = gsmInfo(cfg); frameLength = wfInfo.FrameLengthInSamples; x = zeros(frameLength*51*3,1); for p=1:3 x1 = gsmFrame(cfg1); x2 = gsmFrame(cfg2); x3 = gsmFrame(cfg3,49); x((p-1)*frameLength*51+1:p*frameLength*51) = [x1;x2;x3]; end```

### Simulate Power Control and Propagation Loss Effects

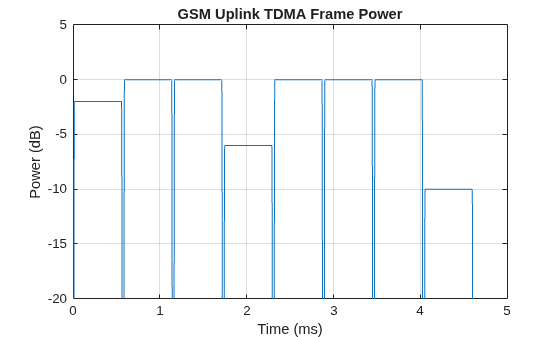

Due to power control and unique propagation loss for each user, the power of each time slot within a frame might be different. Set the power attenuation for time slots 0, 3, and 7 to 2, 6, and 10 dB, respectively.

```cfg = gsmUplinkConfig; cfg.Attenuation([0 3 7] +1) = [2 6 10]```
```cfg = gsmUplinkConfig with properties: BurstType: [NB NB NB NB NB NB NB NB] SamplesPerSymbol: 16 TSC: [0 1 2 3 4 5 6 7] Attenuation: [2 0 0 6 0 0 0 10] RiseTime: 2 RiseDelay: 0 FallTime: 2 FallDelay: 0 Read-only properties: No properties. ```
```x = gsmFrame(cfg); wfInfo = gsmInfo(cfg); Rs = wfInfo.SampleRate; t = (0:length(x) - 1)/Rs*1e3; plot(t, 20*log10(abs(x))) axis([0 5 -20 5]) grid on title('GSM Uplink TDMA Frame Power') xlabel('Time (ms)') ylabel('Power (dB)')```

### Adjust Ramp-Up and Ramp-Down Behavior

GSM bursts must ramp up and ramp down during guard periods [2]. The `gsmFrame` function implements the rise and fall characteristics of the bursts as a sinusoid. The burst ramps up from zero to full amplitude in the number of symbol durations specified by the `RiseTime` property value. The resolution of `RiseTime` is 1/${\mathit{N}}_{\mathrm{sps}}$, where ${\mathit{N}}_{\mathrm{sps}}$ represents the `SamplesPerSymbol` property value of the `gsmDownlinkConfig` object.

Adjust the ramp-up characteristics of the bursts. Since `SamplesPerFrame` is 16, you can specify `RiseTime` with a symbol duration resolution of 0.0625. Set `RiseTime` to a duration of 3.125 symbols.

```cfg = gsmDownlinkConfig; cfg.RiseTime = 3.125;```

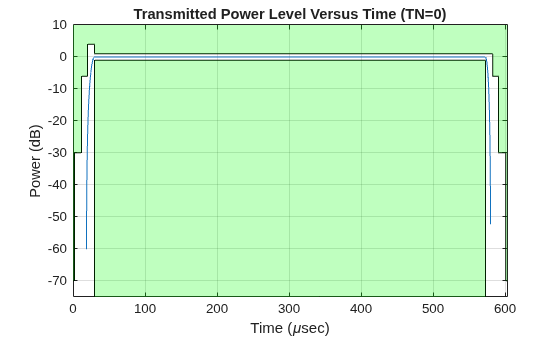

Visualize and check if the rise-time characteristics are within the GSM specifications by using the `gsmCheckTimeMask` function.

`gsmCheckTimeMask(cfg)`

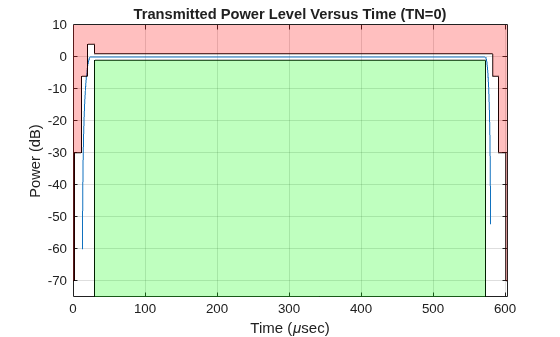

Move the start of the rise time duration to the left by 1.5 symbols by setting the `RiseDelay` to `-1.5`. When `RiseDelay` is `0`, the burst reaches full amplitude at the start of the useful part of the burst.

```cfg.RiseDelay = -1.5; gsmCheckTimeMask(cfg)```

The burst ramps down from full amplitude to zero in the number of symbol durations specified by the Fall`Time` property. The resolution of `FallTime` is 1/${\mathit{N}}_{\mathrm{sps}}$, where ${\mathit{N}}_{\mathrm{sps}}$ represents the `SamplesPerSymbol` property value of the `gsmDownlinkConfig` object. Set `FallTime` to a duration of 2.75 symbols.

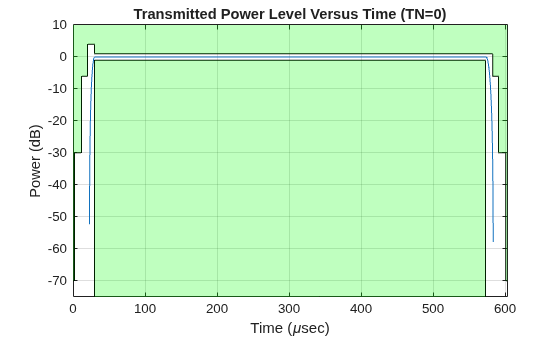

Move the start of the fall time to the right by 0.25 symbols durations by setting the `FallDelay` to `0.25`. When Fall`Delay` is `0`, the burst starts to ramp down from full amplitude at the end of the useful part of the burst.

```cfg = gsmDownlinkConfig; cfg.FallTime = 2.75; cfg.FallDelay = 0.25; gsmCheckTimeMask(cfg)```

### References

[1] 3GPP TS 45.001. "GSM/EDGE Physical layer on the radio path. General description." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[2] 3GPP TS 45.002, "GSM/EDGE Multiplexing and multiple access on the radio path." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network

[3] 3GPP TS 45.004, "GSM/EDGE Modulation." General description." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network

### Helper Functions

normalBurstDescription

This function formats a table to show information about normal burst fields.

```function d = normalBurstDescription() BitNumber = ["0 - 2";"3 - 60";"61 - 86";... "87 - 144";"145 - 147";"148 - 156"]; LengthOfField = {3;58;26;58;3;8.25}; ContentsOfField = [... "tail bits";... "encrypted bits";... "training sequence bits";... "encrypted bits";... "tail bits";... "guard period (bits)"... ]; d = table(BitNumber,LengthOfField,ContentsOfField); end```

frequencyCorrectionBurstDescription

This function formats a table to show information about frequency correction burst fields.

```function d = frequencyCorrectionBurstDescription() BitNumber = ["0 - 2";"3 - 144";"145 - 147";"148 - 156"]; LengthOfField = {3;142;3;8.25}; ContentsOfField = [... "tail bits";... "fixed bits";... "tail bits";... "guard period (bits)"... ]; d = table(BitNumber,LengthOfField,ContentsOfField); end```

synchronizationBurstDescription

This function formats a table to show information about synchronization burst fields.

```function d = synchronizationBurstDescription() BitNumber = ["0 - 2";"3 - 41";"42 - 105";... "106 - 144";"145 - 147";"148 - 156"]; LengthOfField = {3;39;64;39;3;8.25}; ContentsOfField = [... "tail bits";... "encrypted bits";... "extended training sequence bits";... "encrypted bits";... "tail bits";... "guard period (bits)"... ]; d = table(BitNumber,LengthOfField,ContentsOfField); end```

dummyBurstDescription

This function formats a table to show information about dummy burst fields.

```function d = dummyBurstDescription() BitNumber = ["0 - 2";"3 - 144";"145 - 147";"148 - 156"]; LengthOfField = {3;142;3;8.25}; ContentsOfField = [... "tail bits";... "mixed bits";... "tail bits";... "guard period (bits)"... ]; d = table(BitNumber,LengthOfField,ContentsOfField); end```

accessBurstDescription

This function formats a table to show information about access burst fields.

```function d = accessBurstDescription() BitNumber = ["0 - 7";"8 - 48";"49 - 84";... "85 - 87";"88 - 156"]; LengthOfField = {8;41;36;3;68.25}; ContentsOfField = [... "extended tail bits";... "synch. sequence bits";... "encrypted bits";... "tail bits";... "guard period (bits)"... ]; d = table(BitNumber,LengthOfField,ContentsOfField); end```
