# Unipolar to Bipolar Converter

Map unipolar signal in range [0, M-1] into bipolar signal

## Library

Utility Blocks

## Description

The Unipolar to Bipolar Converter block maps the unipolar input signal to a bipolar
output signal. If the input consists of integers between 0 and M-1, where M is the
**M-ary number** parameter, then the output consists of integers
between -(M-1) and M-1. If M is even, then the output is odd. If M is odd, then the
output is even. This block is only designed to work when the input value is within the
set {0,1,2...(M-1)}, where M is the **M-ary number** parameter. If the
input value is outside of this set of integers the output may not be valid.

The table below shows how the block's mapping depends on the
**Polarity** parameter.

Polarity Parameter Value | Output Corresponding to Input Value of k |
---|---|

`Positive`
| 2k-(M-1) |

`Negative`
| -2k+(M-1) |

## Parameters

**M-ary number**The number of symbols in the bipolar or unipolar alphabet.

**Polarity**A value of

`Positive`

causes the block to maintain the relative ordering of symbols in the alphabets. A value of`Negative`

causes the block to reverse the relative ordering of symbols in the alphabets.**Output Data Type**The type of bipolar signal produced at the block's output.

The block supports the following output data types:

`Inherit via internal rule`

`Same as input`

`double`

`int8`

`int16`

`int32`

When the parameter is set to its default setting,

`Inherit via internal rule`

, the block determines the output data type based on the input data type.If the input signal is floating-point (either

`single`

or`double`

), the output data type is the same as the input data type.If the input data type is not floating-point:

Based on the

**M-ary**number parameter, an ideal signed integer output word length required to contain the range [-(M-1)M-1] is computed as follows:ideal word length = ceil(log2(M))+1

**Note**The +1 is associated with the need for the sign bit.

The block sets the output data type to be a signed integer, based on the smallest word length (in bits) that can fit best the computed ideal word length.

**Note**The selections in the Hardware Implementation Pane (Simulink) pertaining to word length constraints do not affect how this block determines output data types.

## Examples

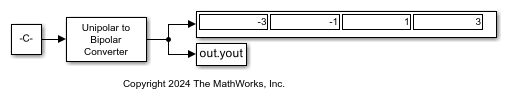

If the input is [0; 1; 2; 3], the **M-ary number** parameter is
`4`

, and the **Polarity** parameter is
`Positive`

, then the output is [-3; -1; 1; 3]. Changing the
**Polarity** parameter to `Negative`

changes the output to [3; 1; -1; -3].

If the value for the **M-ary number** is
2^{7} the block gives an output of int8.

If the value for the **M-ary number** is
2^{7}+1 the block gives an output of int16.

## Extended Capabilities

## Version History

**Introduced before R2006a**
