comm.TurboEncoder

Encode input signal using turbo encoder parallel concatenated encoding scheme

Description

The comm.TurboEncoder System object™ applies a parallel concatenated encoding scheme to a binary input message. This coding scheme uses two convolutional encoders and appends the termination bits at the end of the encoded data bit stream. For more information, see Parallel Concatenated Convolutional Encoding Scheme.

To encode a binary input message using a parallel concatenated encoding scheme:

1. Create the comm.TurboEncoder object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

turboenc = comm.TurboEncoder

turboenc = comm.TurboEncoder(Name,Value)

turboenc = comm.TurboEncoder(trellis,interlvrindices)

Description

turboenc = comm.TurboEncoder creates a turbo encoder System object. This object performs turbo encoding using the default object configuration.

turboenc = comm.TurboEncoder(Name,Value) sets properties using one or more name-value pairs. For example, comm.TurboEncoder('InterleaverIndicesSource','Input port') configures a turbo encoder System object with the interleaver indices to be supplied as an input argument to the System object when it is called. Enclose each property name in quotes.

turboenc = comm.TurboEncoder(trellis,interlvrindices) creates a turbo encoder System object with the TrellisStructure and InterleaverIndices properties set to trellis and interlvrindices, respectively. The trellis input must be specified as described by the TrellisStructure property. The interlvrindices input must be specified as described by the InterleaverIndices property.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

TrellisStructure — Trellis description of constituent convolutional code

poly2trellis(4,[13 15],13) (default) | structure

Trellis description of the constituent convolutional code, specified as a structure that contains the trellis description for a rate K ∕ N code. K is the number of input bit streams, and N is the number of output bit streams.

Note

K must be 1 for the turbo coder. For more information, see Coding Rate.

You can either use the poly2trellis function to create the trellis structure or create it manually. For more about this structure, see Trellis Description of a Convolutional Code and the istrellis function.

The trellis structure contains these fields.

numInputSymbols — Number of symbols input to encoder

2^K

Number of symbols input to the encoder, specified as an integer equal to 2^K, where K is the number of input bit streams.

numOutputSymbols — Number of symbols output from encoder

2^N

Number of symbols output from the encoder, specified as an integer equal to 2^N, where N is the number of output bit streams.

numStates — Number of states in encoder

power of 2

Number of states in the encoder, specified as a power of 2.

nextStates — Next states

matrix of integers

Next states for all combinations of current states and current inputs, specified as a matrix of integers. The matrix size must be numStates by 2^K.

outputs — Outputs

matrix of octal numbers

Outputs for all combinations of current states and current inputs, specified as a matrix of octal numbers. The matrix size must be numStates by 2^K.

Data Types: struct

InterleaverIndicesSource — Source of interleaver indices

'Property' (default) | 'Input port'

Source of interleaver indices, specified as 'Property' or 'Input port'.

• When you set this property to 'Property', the object executes using the interleaver indices that you specified with the InterleaverIndices property when configuring the object.

• When you set this property to 'Input port', the object executes using the input argument interlvrindices when you call the object. The vector length and values for the interleaver indices and binary input message can change with each call to the object.

Data Types: char | string

InterleaverIndices — Interleaver indices

(64:-1:1).' (default) | column vector of integers

Interleaver indices, specified as a column vector of integers. The vector must be of length L, where L is the length of the binary input message. Each element of the vector must be an integer in the range [1, L] and must be unique. The interleaver indices define the mapping used to permute the input bits at the encoder.

Tunable: Yes

Dependencies

To enable this property, set the InterleaverIndicesSource property to 'Property'.

Data Types: double

OutputIndicesSource — Source of output indices

'Auto' (default) | 'Property' | 'Input port'

Source of output indices, specified as 'Auto', 'Property', or 'Input port'.

• When you set this property to 'Auto', the object computes output indices that puncture the second systematic stream and include all tail bits.

• When you set this property to 'Property', the object uses the output indices that you specify for the OutputIndices property.

• When you set this property to 'Input port', the object executes using the output indices specified by the input argument outindices. The vector length and values for the output indices, and the coded output signal can change with each call to the object.

Data Types: char | string

OutputIndices — Output indices

getTurboIOIndices(64,2,3) (default) | column vector of integers

Output indices for the bit ordering and puncturing used on the fully encoded data, specified as a column vector of integers. The number of bits output from the encoder equals the length of this property. The maximum length must not exceed the fully encoded length of (L+mLen) × N × 2, where L is the input block length, mLen is the memory length, and N is the number of encoded streams for the constituent coder.

Dependencies

To enable this property, set the OutputIndicesSource property to 'Property'.

Data Types: double

Usage

Syntax

codeword = turboenc(message)

codeword = turboenc(message,interlvrindices)

codeword = turboenc(message,interlvrindices,outindices)

Description

codeword = turboenc(message) encodes the input message using the parallel concatenated convolutional encoding scheme specified by the trellis structure and interleaver indices. turboenc returns the binary encoded codeword. message and codeword are column vectors of numeric, logical, or unsigned fixed-point values with word length 1 (fi (Fixed-Point Designer) object). For more information, see Parallel Concatenated Convolutional Encoding Scheme.

codeword = turboenc(message,interlvrindices) additionally specifies the interleaver indices. interlvrindices must be a column vector containing integers in the range [1, L] with no repeated values. L is the length of the binary input message, message. This syntax applies when the InterleaverIndicesSource property is set to 'Input port'. The interleaver indices define the mapping used to permute the input bits at the encoder.

codeword = turboenc(message,interlvrindices,outindices) additionally specifies the bit ordering and puncturing used when encoding the message data. To enable this syntax, set the OutputIndicesSource property to 'Input port'. The output indices vector values must be relative to the fully encoded data for the coding scheme, including the tail bits for all streams.

Input Arguments

message — Input message

binary column vector

Input message, specified as a binary column vector of length L, where L is the length of the uncoded input message.

When you set InterleaverIndicesSource to 'Input port', this object accepts variable-size inputs. After the object is locked, you can change the size of each input channel, but you cannot change the number of channels. For more information, see Variable-Size Signal Support with System Objects.

Data Types: double | int8 | fi(data,0,1)

interlvrindices — Interleaver indices

column vector of integers

Interleaver indices, specified as a column vector of integers. The vector must be of length L, where L is the length of the binary input message. Each element of the vector must be an integer in the range [1, L] and must be unique. The interleaver indices define the mapping used to permute the input bits at the encoder.

Dependencies

To enable this argument, set the InterleaverIndicesSource property to 'Input port'.

Data Types: double

outindices — Output indices

column vector of integers

Output indices for the bit ordering and puncturing used on the fully encoded data, specified as a column vector of integers. Element values in the outindices vector must be relative to the fully encoded data for the coding scheme, including the tail bits for all streams.

Dependencies

To enable this argument, set the OutputIndicesSource property to 'Input port'.

Data Types: double

Output Arguments

codeword — Parallel concatenated codeword

binary column vector

Parallel concatenated codeword, returned as a binary column vector of length M, where M is the number of bits in the parallel concatenated codeword. This output inherits its data type from the message input.

Data Types: double | int8 | fi(data,0,1)

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Examples

Perform Rate 1/3 Turbo Code Encoding

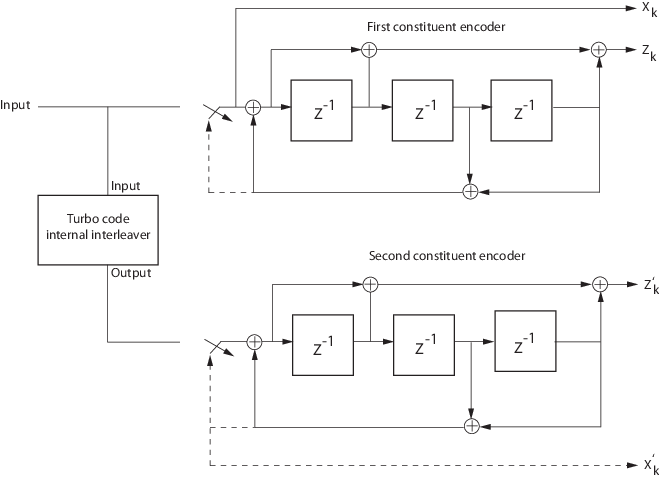

Encode an input message by using a rate 1/3 turbo encoder configuration with the default trellis structure, poly2trellis(4,[13 15],13), as represented in this figure.

For an input message with 64 bits, the codeword output from the encoder is 204 bits. The first 192 bits output correspond to the three 64 bit streams, interlaced as ${\mathit{X}}_{\mathit{k}}$, ${\mathit{Z}}_{\mathit{k}}$, and ${\mathit{Z}}_{\mathit{k}}^{\prime }$. The systematic bit stream, ${\mathit{X}}_{\mathit{k}}$, and parity bit stream, ${\mathit{Z}}_{\mathit{k}}$, are from the first encoder and the parity bit stream, ${\mathit{Z}}_{\mathit{k}}^{\prime }$, is from the second encoder. When the switches are in the lower position, signals follow the dashed lines and the last 12 bits correspond to the tail bits from the two encoders. The first group of six bits (three systematic bits and three parity bits) are the output tail bits from the first constituent encoder. The second group of six bits (three systematic bits and three parity bits) are the output tail bits from the second constituent encoder.

Create a turbo encoder using the default settings. Generate a frame of binary message data, and then encode the message data.

rng default
turboenc = comm.TurboEncoder;
frameLen = 64; % Frame length
data = randi([0 1],frameLen,1);
encData = turboenc(data);
codewordLen = length(encData);

Compute the coding rate. Due to the tail bits, the encoder output code rate is slightly less than 1/3.

codingrate = frameLen/codewordLen

codingrate =
0.3137

Define Output Indices for Full-Length and Punctured Turbo Coding

Define output indices by using the OutputIndices property. Show full-length encoded output and punctured encoded output for a rate 1/2 code and 10-bit block length.

Initialize Parameters

Define parameters to initialize the encoder.

blkLen = 10;
trellis = poly2trellis(4,[13 15],13);
n = log2(trellis.numOutputSymbols);
mLen = log2(trellis.numStates);

Full-Length Encoded Output

Initialize variables and a turbo encoder System object for full-length coding. Display the turbo coding rate. Check the length of the coded output versus the length of the output indices vector.

fullOut = (1:(mLen+blkLen)*2*n)';
outLen = length(fullOut);
netRate = blkLen/outLen;
data = randi([0 1],blkLen,1);
intIndices  = randperm(blkLen);

turboEnc = comm.TurboEncoder('TrellisStructure',trellis);
turboEnc.InterleaverIndices = intIndices;
turboEnc.OutputIndicesSource = 'Property';
turboEnc.OutputIndices = fullOut;

encMsg = turboEnc(data);   % Encode

disp(['Turbo coding rate: ' num2str(netRate)])

Turbo coding rate: 0.19231

encOutLen = length(encMsg) % Display encoded length

encOutLen =
52

isequal(encOutLen,outLen)  % Check lengths

ans = logical
   1

Punctured Encoded Output

Specify the output indices for puncturing of the second systematic stream by using the getTurboIOIndices function. Initialize variables and a turbo encoder System object for punctured coding. Display the turbo coding rate. Check the length of the coded output versus the length of the output indices vector.

puncOut = getTurboIOIndices(blkLen,n,mLen);
outLen = length(puncOut);
netRate = blkLen/outLen;
data = randi([0 1],blkLen,1);
intIndices  = randperm(blkLen);

turboEnc = comm.TurboEncoder('TrellisStructure',trellis);
turboEnc.InterleaverIndices = intIndices;
turboEnc.OutputIndicesSource = 'Property';
turboEnc.OutputIndices = puncOut;

encMsg = turboEnc(data);   % Encode

disp(['Turbo coding rate: ' num2str(netRate)])

Turbo coding rate: 0.25641

encOutLen = length(encMsg) % Display encoded length

encOutLen =
39

isequal(encOutLen, outLen) % Check lengths

ans = logical
   1

Compare Full and Punctured Outputs

The output of the encoder interlaces the individual bit streams. The third bit of every 4-bit tuple is removed from the full-length code to produce the punctured code. This third output bit stream corresponds to the second systematic bit stream. Display the indices of the full-length code and the indices of the punctured code to show that the third bit of every 4-bit tuple is punctured.

fullOut'

ans = 1×52

     1     2     3     4     5     6     7     8     9    10    11    12    13    14    15    16    17    18    19    20    21    22    23    24    25    26    27    28    29    30    31    32    33    34    35    36    37    38    39    40    41    42    43    44    45    46    47    48    49    50

puncOut'

ans = 1×39

     1     2     4     5     6     8     9    10    12    13    14    16    17    18    20    21    22    24    25    26    28    29    30    32    33    34    36    37    38    40    41    42    44    45    46    48    49    50    52

Transmit and Receive Turbo-Encoded Data over BPSK-Modulated AWGN Channel

Simulate the transmission and reception of BPSK data over an AWGN channel by using turbo encoding and decoding.

Specify simulation parameters, and then compute the effective coding rate and noise variance. For BPSK modulation, ${\mathit{E}}_{\mathrm{S}}/{\mathit{N}}_0$ equals ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_0$ because the number of bits per symbol (bps) is 1. To ease reuse of this code for other modulation schemes, calculations in this example include the bps terms. Define the packet length, trellis structure, and number of iterations. Calculate the noise variance using ${\mathit{E}}_{\mathrm{S}}/{\mathit{N}}_0$ and the code rate. Set the random number generator to its default state to ensure that the results are repeatable.

modOrd = 2; % Modulation order
bps = log2(modOrd); % Bits per symbol
EbNo = 1; % Energy per bit to noise power spectral density ratio in dB
EsNo = EbNo + 10*log10(bps); % Energy per symbol to noise power spectral density ratio in dB

L = 256; % Input packet length in bits
trellis = poly2trellis(4,[13 15 17],13);
numiter = 4;
n = log2(trellis.numOutputSymbols);
numTails = log2(trellis.numStates)*n;
M = L*(2*n - 1) + 2*numTails; % Output codeword packet length
rate = L/M; % Coding rate

snrdB = EsNo + 10*log10(rate); % Signal to noise ratio in dB
noiseVar = 1./(10.^(snrdB/10)); % Noise variance

rng default

Generate random interleaver indices.

intrlvrIndices = randperm(L);

Create a turbo encoder and decoder pair. Use the defined trellis structure and random interleaver indices. Configure the decoder to run a maximum of four iterations.

turboenc = comm.TurboEncoder(trellis,intrlvrIndices);
turbodec = comm.TurboDecoder(trellis,intrlvrIndices,numiter);

Create a BPSK modulator and demodulator pair, where the demodulator outputs soft bits determined using an LLR method.

bpskmod = comm.BPSKModulator;
bpskdemod = comm.BPSKDemodulator('DecisionMethod','Log-likelihood ratio', ...
    'Variance',noiseVar);

Create an AWGN channel object and an error rate object.

awgnchan = comm.AWGNChannel('NoiseMethod','Variance','Variance',noiseVar);
errrate = comm.ErrorRate;

The main processing loop performs these steps.

1. Generate binary data.

2. Turbo encode the data.

3. Modulate the encoded data.

4. Pass the modulated signal through an AWGN channel.

5. Demodulate the noisy signal by using LLR to output soft bits.

6. Turbo decode the demodulated data. Because the bit mapping from the demodulator is opposite of the mapping expected by the turbo decoder, the decoder input must use the inverse of the demodulated signal.

7. Calculate the error statistics.

for frmIdx = 1:100
    data = randi([0 1],L,1);
    encodedData = turboenc(data);
    modSignal = bpskmod(encodedData);
    receivedSignal = awgnchan(modSignal);
    demodSignal = bpskdemod(receivedSignal);
    receivedBits = turbodec(-demodSignal);
    errorStats = errrate(data,receivedBits);
end

Display the error data.

fprintf('Bit error rate = %5.2e\nNumber of errors = %d\nTotal bits = %d\n', errorStats)

Bit error rate = 2.34e-04
Number of errors = 6
Total bits = 25600

Perform Turbo Coding on 16-QAM Signal in AWGN Channel

Simulate an end-to-end communication link by using a 16-QAM signal and turbo codes in an AWGN channel. Inside a frame processing loop, packet sizes are randomly selected to be 500, 1000, or 1500 bits. Because the packet size varies, the interleaver indices are provided to the turbo encoder and decoder as an input argument of their associated System object. Compare turbo coded bit error rate results to uncoded bit error rate results.

Initialize Simulation

Set the modulation order and range of ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_0$ values. Compute the number of bits per symbol and the energy per symbol to noise ratio (${\mathit{E}}_{\mathrm{S}}/{\mathit{N}}_0$) based on the modulation order and ${\mathit{E}}_{\mathrm{b}}/{\mathit{N}}_0$. To get repeatable results, seed the random number.

modOrder = 16;               % Modulation order
bps = log2(modOrder);        % Bits per symbol
EbNo = (2:0.5:4);            % Energy per bit to noise power spectral density ratio in dB
EsNo = EbNo + 10*log10(bps); % Energy per symbol to noise power spectral density ratio in dB
rng(1963);

Create a turbo encoder and decoder pair. Because the packet length varies for each frame, specify that the interleaver indices be supplied by an input argument of the System object when executed. Specify that the decoder perform four iterations.

turboEnc = comm.TurboEncoder('InterleaverIndicesSource','Input port');
turboDec = comm.TurboDecoder('InterleaverIndicesSource','Input port','NumIterations',4);
trellis = poly2trellis(4,[13 15 17],13);
n = log2(turboEnc.TrellisStructure.numOutputSymbols);
numTails = log2(turboEnc.TrellisStructure.numStates)*n;

Create an error rate object.

errRate = comm.ErrorRate;

Main Processing Loop

The frame processing loop performs these steps.

1. Select a random packet length, and generate random binary data.

2. Compute the output codeword length and coding rate.

3. Compute the signal to noise ratio (SNR) and noise variance.

4. Generate interleaver indices.

5. Turbo encode the data.

6. Apply 16-QAM modulation, and normalize the average signal power.

7. Pass the modulated signal through an AWGN channel.

8. Demodulate the noisy signal by using an LLR method, output soft bits, and normalize the average signal power.

9. Turbo decode the data. Because the bit mapping order from the demodulator is opposite the mapping order expected by the turbo decoder, the decoder input must use the inverse of the demodulated signal.

10. Calculate the error statistics.

ber = zeros(1,length(EbNo));
for k = 1:length(EbNo)
    % numFrames = 100;
    errorStats = zeros(1,3);
    %for pktIdx = 1:numFrames
    L = 500*randi([1 3],1,1);         % Packet length in bits
    M = L*(2*n - 1) + 2*numTails;     % Output codeword packet length
    rate = L/M;                       % Coding rate for current packet
    snrdB = EsNo(k) + 10*log10(rate); % Signal to noise ratio in dB
    noiseVar = 1./(10.^(snrdB/10));   % Noise variance

    while errorStats(2) < 100 && errorStats(3) < 1e7
        data = randi([0 1],L,1);
        intrlvrIndices = randperm(L);
        encodedData = turboEnc(data,intrlvrIndices);
        modSignal = qammod(encodedData,modOrder, ...
            'InputType','bit','UnitAveragePower',true);
        rxSignal = awgn(modSignal,snrdB);
        demodSignal = qamdemod(rxSignal,modOrder,'OutputType','llr', ...
            'UnitAveragePower',true,'NoiseVariance',noiseVar);
        rxBits = turboDec(-demodSignal,intrlvrIndices); % Demodulated signal is negated
        errorStats = errRate(data,rxBits);
    end
    % Save the BER data and reset the bit error rate object
    ber(k) = errorStats(1);
    reset(errRate)
end

Plot Results

Plot the bit error rate and compare it to the uncoded bit error rate.

semilogy(EbNo,ber,'-o')
grid
xlabel('Eb/No (dB)')
ylabel('Bit Error Rate')
uncodedBER = berawgn(EbNo,'qam',modOrder); % Estimate of uncoded BER
hold on
semilogy(EbNo,uncodedBER)
legend('Turbo','Uncoded','location','sw')

More About

Parallel Concatenated Convolutional Encoding Scheme

The turbo encoder uses a parallel concatenated convolutional encoding scheme to encode a binary input signal. The coding scheme uses two constituent encoders and one internal interleaver as shown in this figure. Each constituent encoder is terminated independently by tail bits.

The OutputIndicesSource property specifies the source for the output indices used for symbol puncturing and repetition.

• When you set the OutputIndicesSource property to 'Auto', the object computes the output indices. In this case, the constituent encoders a have rate 1 ∕ N code, and the number of bits output from the turbo encoder is L × (2 × N – 1) + (2 × numTails). L is the input vector length, and numTails is given by log2(TrellisStructure.numStates) × N. The tail bits due to the termination are appended at the end after the encoded input bits.

  The coding scheme uses two identical constituent encoders and one internal interleaver. Each constituent encoder is terminated independently by tail bits. The output of the turbo encoder consists of the systematic (X) and parity (Z) bit streams of the first encoder and only the parity (Z^’) bit streams of the second encoder. Tail bits are appended at the end for all streams.

• When you set the OutputIndicesSource property to 'Input port' or 'Property', you specify the output indices with the outindices input argument or the OutputIndices property, respectively. In this case, the object runs using the output indices you specify. The output indices are specified relative to the fully encoded output for all streams.

  The output of the turbo encoder consists of the systematic (X and X^’) and parity (Z and Z^’) bit streams of first and second constituent encoders. The number of bits output equals the vector length of the output indices you provide.

For more information, see Coding Rate and Tail bits.

Coding Rate

In general, the coding rate of a constituent convolutional code is represented as a rate K ∕ N code. K is the number of input bit streams. N is the number of output bit streams.

Note

K must be 1 to use the comm.TurboEncoder and comm.TurboDecoder System objects. Alternatively, the High Rate Convolutional Codes for Turbo Coding example performs turbo coding for K greater than 1 by using the comm.ConvolutionalEncoder and comm.APPDecoder System objects.

The encoder accepts an L-element column vector input signal and returns an M-element column vector output signal. The effective code rate of the turbo encoder is L ∕ M. L is the length of the binary input message, and M is the number of bits output in the parallel concatenated codeword.

• When you set the OutputIndicesSource property to 'Auto', systematic bits from the second encoder (X^’, shown in the figure found in Parallel Concatenated Convolutional Encoding Scheme) are not output to the parallel concatenated codeword. For a given trellis, M and L are related by M = L × (2 × N – 1) + 2 × numTails, where numTails is the number of tail bits. For more information, see Tail bits.

• When you set the OutputIndicesSource property to 'Input port' or 'Property', M equals the length of the output indices vector specified by the outindices input argument or the OutputIndices property, respectively.

Tail bits

The turbo encoder treats each input independently. For each input message, extra bits are used to set the encoder states to an all-zeros state. Each constituent encoder is terminated independently by tail bits. The turbo encoder output consists of the interlaced systematic and parity streams, with the tail bits multiplexed to the end of the encoded data streams.

The number of tail bits, numTails, output by each constituent encoder depends on values in the trellis structure used by each coder.

• numTails = log₂(trellis.numStates) × N

• N = log₂(trellis.numOutputSymbols). For a rate 1 ∕ 2 trellis, N = 2.

For more information about trellis structures, see poly2trellis. For more information about the constituent encoders, see Parallel Concatenated Convolutional Encoding Scheme.

References

[1] Berrou, C., A. Glavieux, and P. Thitimajshima. “Near Shannon Limit Error-Correcting Coding and Decoding: Turbo-Codes.” Proceedings of ICC 93 - IEEE^® International Conference on Communications, 2: 1064–70. Geneva, Switzerland: IEEE, 1993. https://doi.org/10.1109/icc.1993.397441.

[2] Benedetto, S., G. Montorsi, D. Divsalar, and F. Pollara. "A Soft-Input Soft-Output Maximum A Posterior (MAP) Module to Decode Parallel and Serial Concatenated Codes." Jet Propulsion Lab TDA Progress Report (November 1996): 42–127.

[3] Schlegel, Christian, and Lance Perez. Trellis and Turbo Coding. IEEE Press Series on Digital & Mobile Communication. Piscataway, NJ; Hoboken, NJ: IEEE Press; Wiley-Interscience, 2004.

[4] 3GPP TS 36.212. "Multiplexing and channel coding." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA).

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

Version History

Introduced in R2012a
