comm.ConstellationDiagram

Display constellation diagram for input signals

Description

The comm.ConstellationDiagram System object™ displays real and complex-valued floating and fixed-point signals in the IQ plane. Use this System object to perform qualitative and quantitative analysis on modulated single-carrier signals.

In the constellation diagram window you can:

• Input and plot multiple signals on a single constellation diagram. You can define one reference constellation for each input signal. For more information, see ReferenceConstellation.

• Choose which channels are displayed by selecting signals in the legend. Use the ShowLegend property to display the legend. For a multichannel signal, specify the input as a matrix with individual signals defined in the columns of the matrix.

• Display the EVM / MER Measurements panel, which displays calculated error vector magnitude (EVM) and modulation error ratio (MER) measurements. When multiple signals are input to a comm.ConstellationDiagram System object, use the Trace Selection pane to choose the signal being measured.

To display constellation diagrams:

1. Create the comm.ConstellationDiagram object and set its properties.

2. Call the object with arguments, as if it were a function.

Creation

Description

example

constdiag = comm.ConstellationDiagram returns a comm.ConstellationDiagram System object that displays real and complex-valued floating and fixed-point signals in the IQ plane.

example

constdiag = comm.ConstellationDiagram(Name,Value) set the properties of the System object using one or more name-value pair arguments in any order as (Name1,Value1,...,NameN,ValueN).

Example: constdiag = comm.ConstellationDiagram('SampleOffset',1e3) specifies that the first 1000 samples received will not be displayed.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

Title of the Constellation Diagram window, specified as a character vector.

Number of samples used to represent each symbol, specified as a positive integer. When the SamplesPerSymbol property is greater than 1, the signal is downsampled before it is plotted.

Tunable: Yes

Number of samples to skip before plotting points, specified as a nonnegative integer less than SamplesPerSymbol. This property specifies the number of samples to skip when downsampling the input signal.

Tunable: Yes

Source of symbols to display, specified as:

• 'Input frame length' — The number of symbols to display is equal to the input frame length divided by SamplesPerSymbol.

• 'Property'SymbolsToDisplay specifies the maximum number of symbols to display.

Tunable: Yes

Maximum number of symbols to display, specified as a positive integer. Use SymbolsToDisplay to limit the maximum number of symbols displayed when long signals are input. Symbols plotted are the most recent symbols received.

Tunable: Yes

Dependencies

This property applies when SymbolsToDisplaySource is set to 'Property'.

Reference constellations for the input signals, specified as a row vector or cell array of vectors defining the ideal constellation points for each input signal. Input signals can be single channel or multichannel. You can define one reference constellation for each input signal. For multichannel input signals, one reference constellation specification applies to all the individual signals in that input signal. To obtain the EVM / MER Measurements, you must set the ReferenceConstellation property.

Tunable: Yes

Data Types: double
Complex Number Support: Yes

Specify the marker for the reference display as a string or cell array of strings. Select the marker symbol as one of the markers in this table.

ValueDescription
'o'Circle
'+'Plus sign
'*'Asterisk
'.'Point
'x'Cross
'_'Horizontal line
'|'Vertical line
'square' or 's'Square
'diamond' or 'd'Diamond
'^'Upward-pointing triangle
'v'Downward-pointing triangle
'>'Right-pointing triangle
'<'Left-pointing triangle
'pentagram' or 'p'Five-pointed star (pentagram)
'hexagram' or 'h'Six-pointed star (hexagram)
'none'No markers

Tunable: Yes

Data Types: string

Color for reference display constellation, specified as a three-element row vector indicating RGB component colors or as a cell array containing RGB component colors for each input signal.

Data Types: double

Display the reference constellation, specified as true or false.

Tunable: Yes

Data Types: logical

Turn on signal trajectory plot, specified as false or true. The signal trajectory is a plot of the in-phase component versus the quadrature component of a modulated signal. See the Show Signal Trajectory button on the toolbar in the Signal Display.

Tunable: Yes

Data Types: logical

Scope window position and size in pixels, specified as a four-element vector of the form [left bottom width height]. The first two elements in the vector indicate the location of the lower left corner and the last two specify the size of the window. The default value for the location depends on the screen resolution. By default, the window is positioned in the center of the screen with a width and height of 410 and 300 pixels, respectively.

Tunable: Yes

Data Types: double

Specify the number of input ports, as an integer in the range [1, 20]. Each input signal, whether it is a multichannel signal or a single channel signal, becomes a separate input port in the scope.

When multichannel input signals are specified, the maximum number of input ports is limited by the total number of input signals defined. The total number of input signals cannot exceed 20.

Turn on the grid, specified as true or false.

Tunable: Yes

Data Types: logical

Names for input channels, specified as a cell array of strings or character vectors. If you do not specify names, the channels are labeled as Channel 1, Channel 2, etc.

The names assigned to input channels appear in the legend and the Measurements > Trace Selection pane.

To show the legend, set ShowLegend to true. The legend displays after you provide an input signal to the comm.ConstellationDiagram System object.

To show the Trace Selection pane, select Measurements > Trace Selection. To enable the Trace Selection pane, you must first provide an input signal to the comm.ConstellationDiagram System object.

Example: constDiag = comm.ConstellationDiagram('ChannelNames',{'8-QAM','8-PSK'}) assigns names for two input channels to 8-QAM and 8-PSK.

Tunable: Yes

Display the legend, specified as false or true. The names listed in the legend are the signal names specified by the ChannelNames property.

From the legend, you can control which signals to plot. In the scope legend, click a signal name to hide the signal in the scope. To show the signal, click the signal name again. To show only one signal and hide all other signals, right-click the signal name. To show all signals, press Esc.

Tunable: Yes

Data Types: logical

Add color fading effect, specified as false or true. When you set this property to true, the points in the display fade as the interval of time after they are first plotted increases. This animation resembles an oscilloscope display.

Data Types: logical

Plot title, specified as a character vector or string.

Tunable: Yes

x-axis limits, specified as a two-element numeric vector of the form [xmin xmax].

Tunable: Yes

y-axis limits, specified as a two-element numeric vector of the form [ymin ymax].

Tunable: Yes

x-axis label, specified as a character vector or string.

Tunable: Yes

y-axis label, specified as a character vector or string.

Tunable: Yes

Display measurements pane, specified as false or true. To compute and display EVM or MER measurements, activate this pane.

Tunable: Yes

Data Types: logical

Measurement interval, specified as 'Current Display', 'All displays', or a positive integer in the range [2 SymbolsToDisplay]. This property specifies the window length for the EVM and MER measurements.

When the input signal contains one sample per symbol and the reference constellation is provided, the constellation diagram display can measure the signal quality in terms of EVM and MER. The EVM / MER Measurements pane can be displayed by clicking the Signal Quality button. See the toolbar in the Signal Display. After the number of input data samples is greater than MeasurementInterval, the EVM and MER measurements are computed.

Tunable: Yes

EVM normalization method, specified as 'Average constellation power' or 'Peak constellation power'. For more information, see EVM / MER Measurements.

Tunable: Yes

Usage

Description

example

constdiag(signal1,signal2,...,signalN) displays up to NumInputPorts signals in one constellation diagram.

Input Arguments

expand all

Specify one or more signals to be plotted in the comm.ConstellationDiagram. Signals can have different data types and dimensions. To create a multichannel signal, specify a matrix with individual signals defined in the columns of the matrix.

Example: constDiag([siganl1_1,signal1_2],signal2) displays the multichannel and multi-input constellation diagram. First input is two concatenated column vectors of length N to make an N-by-2 matrix input signal and the second input is a single channel signal.

Data Types: double
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

 show Show scope window hide Hide scope window isVisible Determine visibility of scope window
 step Run System object algorithm release Release resources and allow changes to System object property values and input characteristics reset Reset internal states of System object

Examples

collapse all

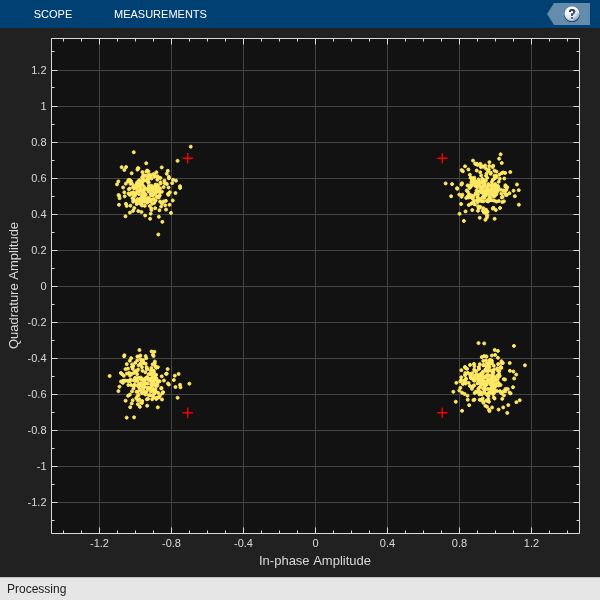

QPSK modulate random data symbols and apply an amplitude imbalance to the signal. Pass the signal through a noisy channel. Plot the resultant constellation.

Create a constellation diagram object. Because the default reference constellation for the comm.ConstellationDiagram System object is QPSK, it is not necessary to set additional properties.

constDiagram = comm.ConstellationDiagram;

Generate random data symbols and apply QPSK modulation.

data = randi([0 3],1000,1);
modData = pskmod(data,4,pi/4);

Apply an amplitude imbalance to the modulated signal.

txSig = iqimbal(modData,5);

Pass the transmitted signal through an AWGN channel and display the constellation diagram. Observe that the data points have shifted from their ideal locations.

rxSig = awgn(txSig,20);
constDiagram(rxSig)

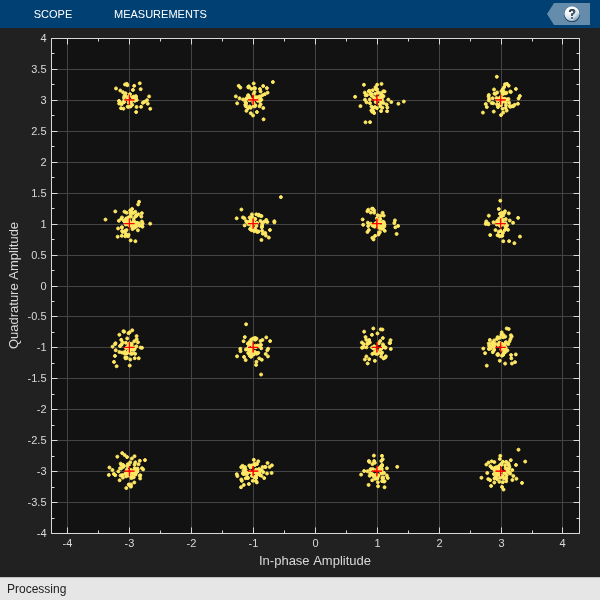

Apply 16-QAM modulation, transmit data using an AWGN channel, and plot the signal constellation.

Create a 16-QAM reference constellation.

M = 16;
refC = qammod(0:M-1,M);

Create a comm.ConstellationDiagram System object. Specify the constellation reference points and axes limits using name-value pairs.

constDiagram = comm.ConstellationDiagram('ReferenceConstellation',refC, ...
'XLimits',[-4 4],'YLimits',[-4 4]);

Generate random, 16-ary data symbols.

data = randi([0 M-1],1000,1);

Apply 16-QAM modulation.

sym = qammod(data,M);

Pass the modulated signal through an AWGN channel.

rcv = awgn(sym,15);

Display the constellation diagram.

constDiagram(rcv)

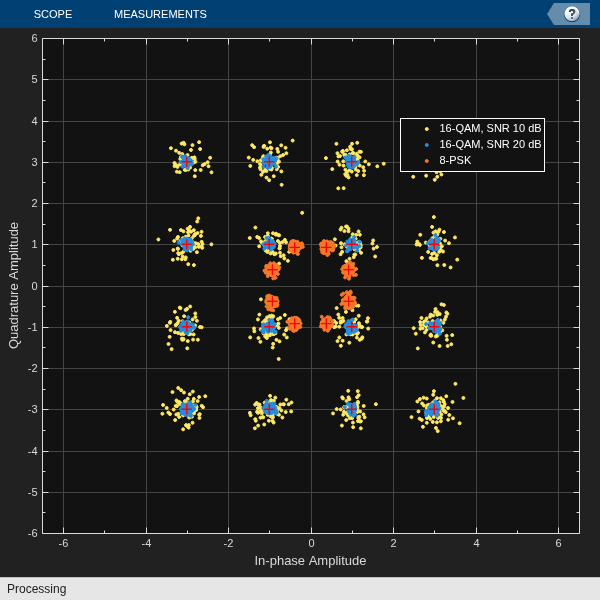

Use the comm.ConstellationDiagram System object to visualize the constellation of multi-input and multichannel modulated signals. Plot a multichannel signal with two 16-QAM signals with SNR 10 and 20 for the first input, and one 8-PSK signal for the second input.

Create a 16-QAM and a 8-PSK reference constellation.

M = 16;
refQAM = qammod(0:M-1,M);
S = 8;
refPSK = pskmod(0:S-1,S,pi/8);

Create a comm.ConstellationDiagram object™.

constDiag = comm.ConstellationDiagram(2,...
'ReferenceConstellation',{refQAM,refPSK},'ShowLegend',true,...
'XLimits',[-6 6],'YLimits',[-6 6], ...
'ChannelNames',{'16-QAM , SNR 10 dB','16-QAM , SNR 20 dB','8-PSK'});

Generate random data symbols, modulate the symbols, and add AWGN with two different SNRs to yield two received signals.

d = randi([0 M-1],1000,1);
dQAM = qammod(d,M);
rcv1_1 = awgn(dQAM,10);
rcv1_2 = awgn(dQAM,20);
d = randi([0 S-1],1000,1);
dPSK = pskmod(d,S,pi/8);
rcv2 = awgn(dPSK,20);

For the first input, create a multichannel signal by concatenating the two received 16-QAM signals. A single reference constellation is applied for all the multichannel signals of one input. Second input uses a single channel 8-PSK signal. This input has a separate reference constellation.

View the multi-input and multichannel signals .

constDiag([rcv1_1,rcv1_2],rcv2);

expand all

Tips

• If you want any of these features, use a comm.ConstellationDiagram System object.

• Measurements

• Basic reference constellations

• Signal trajectory plots

• Maintaining state between calls

• If you want a simple signal constellation snapshot, use the scatterplot function.
