# acousticRoughness

Perceived roughness of acoustic signal

Since R2021a

## Syntax

``roughness = acousticRoughness(audioIn,fs)``
``roughness = acousticRoughness(audioIn,fs,calibrationFactor)``
``roughness = acousticRoughness(specificLoudnessIn)``
``roughness = acousticRoughness(___,Name,Value)``
``[roughness,specificRoughness] = acousticRoughness(___)``
``[roughness,specificRoughness,fMod] = acousticRoughness(___)``
``acousticRoughness(___)``

## Description

example

````roughness = acousticRoughness(audioIn,fs)` returns roughness strength in aspers based on Zwicker [1] and ISO 532-1 time-varying loudness [2].```

example

````roughness = acousticRoughness(audioIn,fs,calibrationFactor)` specifies a nondefault microphone calibration factor used to compute loudness.```

example

````roughness = acousticRoughness(specificLoudnessIn)` computes roughness using high-resolution time-varying specific loudness.```

example

````roughness = acousticRoughness(___,Name,Value)` specifies options using one or more Name, Value pair arguments. For example, `roughness = acousticRoughness(audioIn,fs,'SoundField','diffuse')` returns roughness assuming a diffuse sound field.```
````[roughness,specificRoughness] = acousticRoughness(___)` also returns specific roughness strength.```
````[roughness,specificRoughness,fMod] = acousticRoughness(___)` also returns the dominant modulation frequency detected by the algorithm.```

example

````acousticRoughness(___)` with no output arguments plots roughness strength and specific roughness strength and displays the modulation frequency textually. If `audioIn` is stereo, the 3-D plot shows the sum of both channels.```

## Examples

collapse all

Measure acoustic roughness based on [1] and ISO 532-1 [2]. Assume a free-field reference pressure of 20 micropascals and a recording level calibration such that a 1 kHz tone registers as 100 dB on a SPL meter.

Read in a stereo audio file and convert to mono.

```[audioInStereo,fs] = audioread('Engine-16-44p1-stereo-20sec.wav'); audioIn = (audioInStereo(:,1) + audioInStereo(:,2)) / 2;```

Compute acoustic roughness on the mono audio signal and display the average value.

```roughness = acousticRoughness(audioIn,fs); meanRoughness = mean(roughness); displayOutput = ['Average computed value of acoustic roughness is ',num2str(meanRoughness),' aspers.']; disp(displayOutput)```
```Average computed value of acoustic roughness is 0.17901 aspers. ```

References

[1] Zwicker, Eberhard, and Hugo Fastl. Psychoacoustics: Facts and Models. Vol. 22. Springer Science & Business Media, 2013.

[2] ISO 532-1:2017(E). "Acoustics – Methods for calculating loudness – Part 1: Zwicker method." International Organization for Standardization.

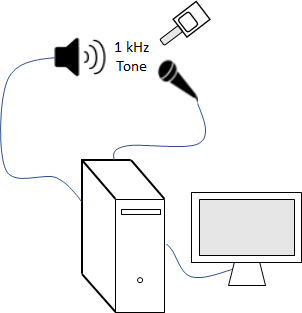

Set up an experiment as indicated by the diagram.

Create an `audioDeviceReader` object to read from the microphone and an `audioDeviceWriter` object to write to your speaker.

```fs = 48e3; deviceReader = audioDeviceReader(fs,"SamplesPerFrame",2048); deviceWriter = audioDeviceWriter(fs);```

Create an `audioOscillator` object to generate a 1 kHz sinusoid.

`osc = audioOscillator("sine",1e3,"SampleRate",fs,"SamplesPerFrame",2048);`

Create a `dsp.AsyncBuffer` object to buffer data acquired from the microphone.

```dur = 5; buff = dsp.AsyncBuffer(dur*fs);```

For 5 seconds, play the sinusoid through your speaker and record using your microphone. While the audio streams, note the loudness as reported by your SPL meter. Once complete, read the contents of the buffer object.

```numFrames = dur*(fs/osc.SamplesPerFrame); for ii = 1:numFrames audioOut = osc(); deviceWriter(audioOut); audioIn = deviceReader(); write(buff,audioIn); end SPLreading = 69.7; micRecording = read(buff);```

To compute the calibration factor for the microphone, use the `calibrateMicrophone` function.

`calibrationFactor = calibrateMicrophone(micRecording(fs+1:end),deviceReader.SampleRate,SPLreading);`

You can now use the calibration factor you determined to measure the roughness of any sound that is acquired through the same microphone recording chain.

Perform the experiment again by adding 100% amplitude modulation at 40 Hz. To create the modulation signal, use the `audioOscillator` object and specify the amplitude as `0.5` and the DC offset as `0.5` to oscillate between 0 and 1.

```mod = audioOscillator("sine",40,"SampleRate",fs, ... "Amplitude",0.5,"DCOffset",0.5,"SamplesPerFrame",2048); dur = 5; buff = dsp.AsyncBuffer(dur*fs); numFrames = dur*(fs/osc.SamplesPerFrame); for ii = 1:numFrames audioOut = osc().*mod(); deviceWriter(audioOut); audioIn = deviceReader(); write(buff,audioIn); end micRecording = read(buff);```

Call the `acousticRoughness function` with the microphone recording, sample rate, and calibration factor. The roughness reported from `acousticRoughness` uses the true acoustic loudness measurement as specified by ISO 532-1. Display the average roughness strength over the 5 seconds and plot roughness and specific roughness.

```roughness = acousticRoughness(micRecording,deviceReader.SampleRate,calibrationFactor); fprintf('Average roughness = %d (asper)',mean(roughness(2001:end,:)))```
```Average roughness = 4.992723e-01 (asper) ```

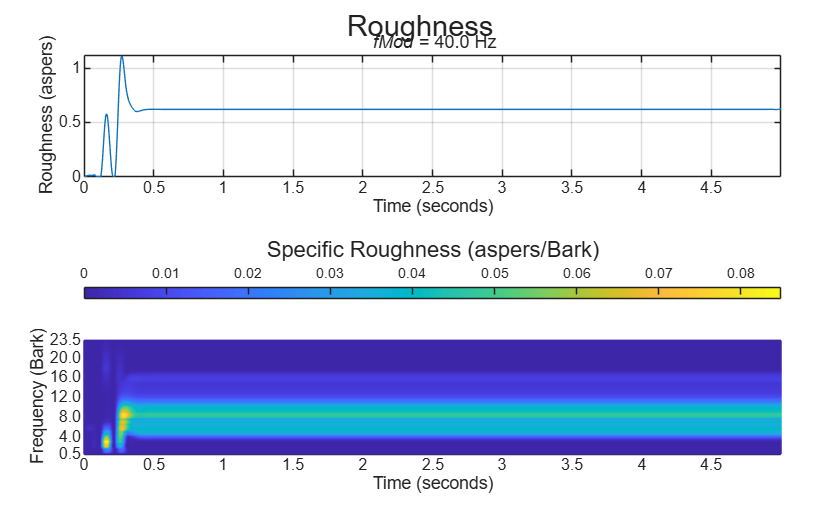

`acousticRoughness(micRecording,deviceReader.SampleRate,calibrationFactor)`

Read in an audio file.

`[audioIn,fs] = audioread("Engine-16-44p1-stereo-20sec.wav");`

Call the `acousticLoudness` function using high time resolution to calculate the specific loudness.

`[~,specificLoudnessHD] = acousticLoudness(audioIn,fs,'TimeVarying',true,'TimeResolution','high');`

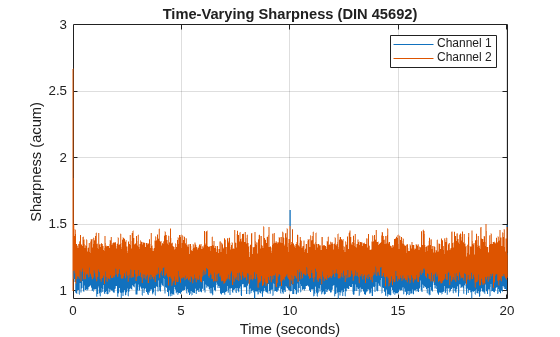

Call the `acousticSharpness` function using standard resolution specific loudness without any output arguments to plot the acoustic sharpness.

```specificLoudness = specificLoudnessHD(1:4:end,:,:); acousticSharpness(specificLoudness,'TimeVarying',true)```

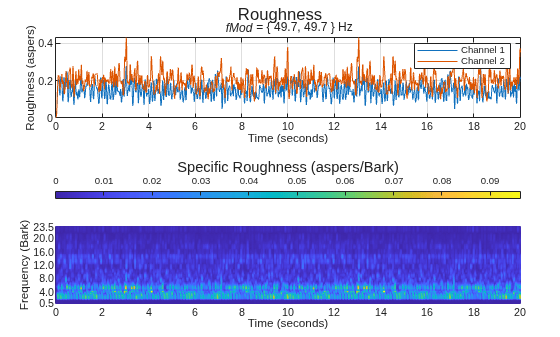

Call `acousticRoughness` without any outputs to plot the acoustic roughness.

`acousticRoughness(specificLoudnessHD)`

Generate a pure tone with a 1500 Hz center frequency and approximately 700 Hz frequency deviation at a modulation frequency of 200 Hz.

```fs = 48e3; fMod = 200; dur = 5; numSamples = dur*fs; t = (0:numSamples-1)/fs; tone = sin(2*pi*t*fMod)'; fc = 1500; excursionRatio = 0.47; excursion = 2*pi*(fc*excursionRatio/fs); audioIn = modulate(tone,fc,fs,'fm',excursion);```

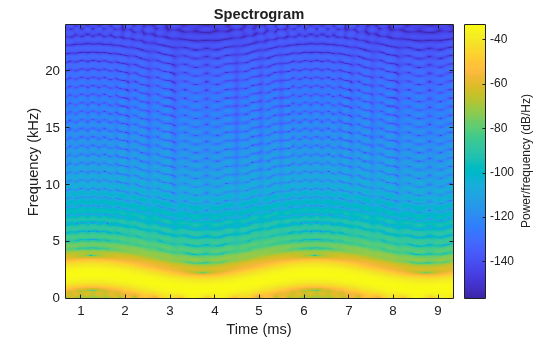

Listen to the audio and plot a spectrogram of the first 10 ms.

```sound(audioIn,fs) spectrogram(audioIn(1:0.01*fs),hann(64,'periodic'),63,1024,fs,'yaxis')```

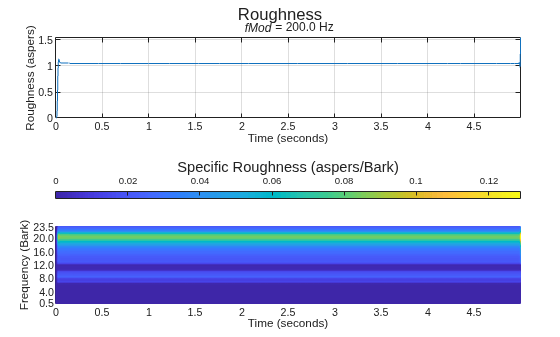

Call the `acousticRoughness` function with no output arguments to plot the acoustic roughness strength.

`acousticRoughness(audioIn,fs);`

The `acousticRoughness` function enables you to specify a known roughness frequency. If you do not specify a known roughness frequency, the function auto detects the roughness.

Create a `dsp.AudioFileReader` object to read in an audio signal frame-by-frame. Create an `audioOscillator` object to create a modulation wave. Apply the modulation wave to the audio file.

```fileReader = dsp.AudioFileReader('Engine-16-44p1-stereo-20sec.wav'); fMod = 72.41; amplitude = 0.5; osc = audioOscillator('sine',fMod, ... "DCOffset",0.5, ... "Amplitude",amplitude, ... "SampleRate",fileReader.SampleRate, ... "SamplesPerFrame",fileReader.SamplesPerFrame); testSignal = []; while ~isDone(fileReader) x = fileReader(); testSignal = [testSignal;osc().*fileReader()]; end```

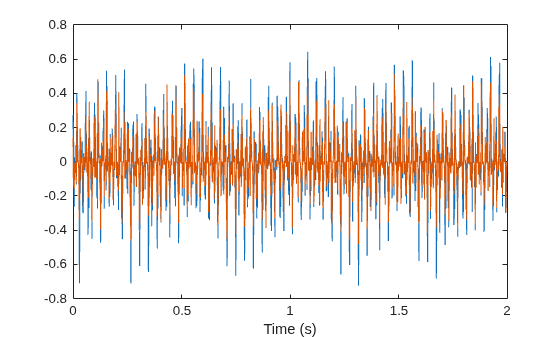

Listen to 2 seconds of the test signal and plot its waveform.

```samplesToView = 1:2*fileReader.SampleRate; sound(testSignal(samplesToView,:),fileReader.SampleRate); plot(samplesToView/fileReader.SampleRate,testSignal(samplesToView,:)) xlabel('Time (s)')```

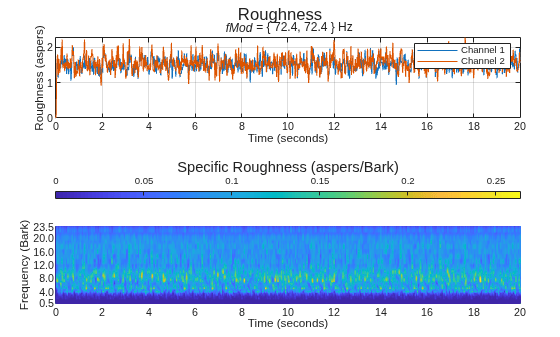

Plot the acoustic roughness. The detected frequency of the modulation is displayed textually.

`acousticRoughness(testSignal,fileReader.SampleRate);`

Specify the known modulation frequency and then plot the acoustic roughness again.

`acousticRoughness(testSignal,fileReader.SampleRate,'ModulationFrequency',fMod)`

## Input Arguments

collapse all

Audio input, specified as a column vector (mono) or matrix with two columns (stereo).

Tip

To measure roughness strength given any modulation frequency, the recommended minimum signal duration is 0.5 seconds.

Data Types: `single` | `double`

Sample rate in Hz, specified as a positive scalar. The recommended sample rate for new recordings is 48 kHz.

Note

The minimum acceptable sample rate is 8 kHz.

Data Types: `single` | `double`

Microphone calibration factor, specified as a positive scalar. The default calibration factor corresponds to a full-scale 1 kHz sine wave with a sound pressure level of 100 dB (SPL). To compute the calibration factor specific to your system, use the `calibrateMicrophone` function.

Data Types: `single` | `double`

Specific loudness in sones/Bark, specified as a T-by-240-by-C array, where:

• T is 1 per 0.5 ms of the time-varying signal (high resolution loudness).

• 240 is the number of Bark bins in the domain for specific loudness. The Bark bins are `0.1:0.1:24`.

• C is the number of channels.

You can use the `acousticLoudness` function to calculate time varying specific loudness using this syntax.

`[~,specificLoudness] = acousticLoudness(audioIn,fs,'TimeVarying',true,'TimeResolution','high');`

Data Types: `single` | `double`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `acousticRoughness(audioIn,fs,'ModulationFrequency',100)`

Known modulation frequency in Hz, specified as the comma-separated pair consisting of `'ModulationFrequency'` and a scalar or two-element vector with values in the range `[1,1000]`.

Set `ModulationFrequency` to:

• `'auto-detect'` when you want the function to detect the modulation frequency automatically. When you select this option the function limits the search range to between 10 and 400 Hz.

• a scalar if the input is mono.

• a scalar or two-element vector if the input is stereo.

Data Types: `single` | `double` | `char` | `string`

Sound field of audio recording, specified as the comma-separated pair of `'SoundField'` and `'free'` or `'diffuse'`.

Data Types: `char` | `string`

Reference pressure for dB calculation in pascals, specified as the comma-separated pair of `'PressureReference'` and a positive scalar. The default value, 20 micropascals, is the common value of air.

Data Types: `single` | `double`

## Output Arguments

collapse all

Roughness strength in asper, returned as a K-by-1 column vector or K-by-2 matrix of independent channels. K corresponds to the time dimension.

Note

Roughness is reported for each channel independently at every 0.5 ms interval.

Data Types: `single` | `double`

Specific roughness strength in asper/Bark, returned as a K-by-47 matrix or a K-by-47-by-2 array. The first dimension of `specificRoughness`, K, corresponds to the time dimension and matches the first dimension of `roughness`. The second dimension of `specificRoughness`, 47, corresponds to bands on the Bark scale, with centers in the range of [0.5, 23.5], in increments of 0.5. The third dimension of `specificRoughness` corresponds to the number of channels and matches the second dimension of `roughness`.

Data Types: `single` | `double`

Dominant modulation frequency in Hz, returned as a scalar for mono input or a 1-by-2 vector for stereo input.

Data Types: `single` | `double`

## Algorithms

Acoustic roughness strength is a perceptual measurement of modulations in amplitude or frequency that are too high to discern separately. The acoustic loudness algorithm is described in [2] and implemented in the `acousticLoudness` function. The acoustic roughness calculation is described in [1]. The algorithm for acoustic roughness defines the roughness of 1 asper as a 1 kHz tone at 60 dB with a 100% amplitude modulation at 70 Hz [3]. The algorithm is outlined as follows:

`$roughness=cal\underset{z=0}{\overset{24}{\int }}{f}_{\mathrm{mod}}\text{\hspace{0.17em}}\Delta L\text{\hspace{0.17em}}dz$`

Where fmod is the detected or known modulation frequency, cal is a constant ensuring unity roughness of the reference signal, and ΔL is the perceived modulation depth. If the modulation frequency is not specified when calling `acousticRoughness`, it is auto-detected by peak-picking a frequency-domain representation of the acoustic loudness. The perceived modulation depth ΔL is calculated by passing rectified specific loudness bands through ½ octave filters centered around fmod, followed by a lowpass filter to determine the envelope.

## References

[1] Zwicker, Eberhard, and Hugo Fastl. Psychoacoustics: Facts and Models. Vol. 22. Springer Science & Business Media, 2013.

[2] ISO 532-1:2017(E). "Acoustics – Methods for calculating loudness – Part 1: Zwicker method." International Organization for Standardization.

[3] Kalafata, Stamatina. "Sound Levels, Noise Source Identification and Perceptual Analysis in an Intensive Care Unit." Master's thesis, University of Gothenburg, 2014.

## Version History

Introduced in R2021a
