arrayFactor

Array factor in dB

collapse all in page

Syntax

arrayFactor(array,frequency)
arrayFactor(array,frequency,azimuth,elevation)
arrayFactor(___,Name=Value)
[af] = arrayFactor(array,frequency)
[af,azimuth,elevation] = arrayFactor(___)
[af,azimuth,elevation] = arrayFactor(___,Name=Value)

Description

arrayFactor(array,frequency) plots the 3-D array factor of the specified array at the specified frequency value in dB.

example

arrayFactor(array,frequency,azimuth,elevation) plots the array factor of the specified array over the specified frequency, azimuth, and elevation values.

arrayFactor(___,Name=Value) plots the array factor of the specified array using additional options specified by one or more name-value arguments. Specify name-value arguments after all other input arguments.

[af] = arrayFactor(array,frequency) returns the 3-D array factor of the specified array at the specified frequency value.

[af,azimuth,elevation] = arrayFactor(___) returns the array factor of the specified array at the specified frequency, azimuth, and elevation values.

[af,azimuth,elevation] = arrayFactor(___,Name=Value) returns the array factor using additional options specified by one or more name-value arguments. Specify name-value arguments after all other input arguments.

Examples

collapse all

Open Live Script

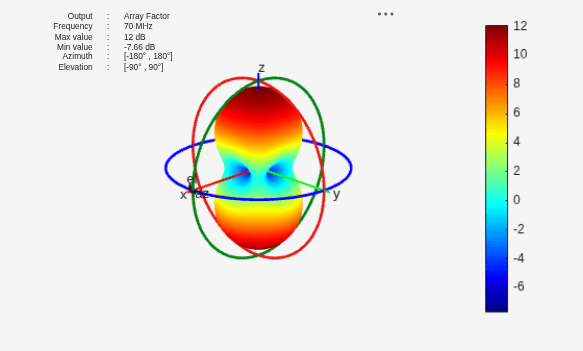

Plot the array factor of a default rectangular array at a frequency of 70 MHz.

ra = rectangularArray;
arrayFactor(ra,70e6);

Figure contains an axes object and other objects of type uicontrol. The hidden axes object contains 16 objects of type surface, line, text, patch.

Input Arguments

collapse all

Antenna array to calculate the array factor, specified as an array object from these:

Example: r = rectangularArray; arrayFactor (r,70e6). Calculates the array factor of a rectangular array.

Frequency value used to calculate array factor, specified as a scalar in Hz.

Example: 70e6

Data Types: double

Azimuth angles used to calculate the array factor, specified as a vector in degrees.

Example: –90:5:90

Data Types: double

Elevation angles used to calculate the array factor, specified as a vector in degrees.

Example: 0:1:360

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: arrayFactor(rectangularArray,70e6,CoordinateSystem="rectangular")

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: arrayFactor(rectangularArray,70e6,'CoordinateSystem','rectangular')

Coordinate system of array factor plot, specified as either "polar", "rectangular", or "uv".

Example: "rectangular"

Data Types: string

Parameter to change properties of pattern plot, specified as a PatternPlotOptions object. The PatternPlotOptions properties that you can vary are:

  • Transparency

  • MagnitudeScale

Other PatternPlotOptions properties used in the PatternOptions for the inset figure are ignored in the arrayFactor.

Example: p = PatternPlotOptions(Transparency=0.1); creates a pattern plot with a transparency of 0.1. arrayFactor(rectangularArray,70e6,PatternOptions=p) sets the pattern options for the arrayFactor.

Data Types: double

Output Arguments

collapse all

Array factor, returned as a matrix in dB. The matrix size is the product of number of elevation values and number of azimuth values.

Azimuth values used to calculate the array factor, returned as a vector in degrees.

Elevation values used to calculate the array factor, returned as a vector in degrees.

Version History

Introduced in R2017a
