C Caller
Integrate C code in Simulink
Libraries:
Simulink /
User-Defined Functions
Description
The C Caller block integrates your external C code into Simulink®. This block imports and lists the functions in your external C code, and allows you to select your resolved C functions to integrate in your Simulink models. The C Caller block standalone supports code generation. For more complex models, code generation depends on the capabilities of your Simulink model.

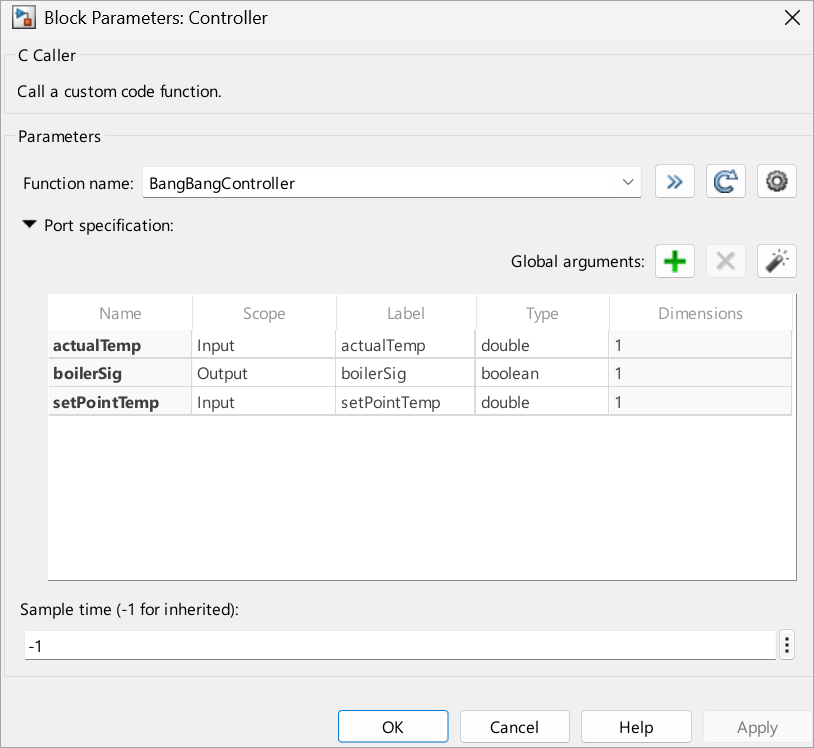

To use the C Caller block, define your source code and any supporting files using Simulation Target under Configuration Parameters. Then, bring a C Caller block to the Simulink canvas, using Library Browser > Simulink > User Defined Functions. To change the defined source code file and its dependencies, go to Simulation Target tab in Configuration Parameters by clicking the from the block dialog. After changing your source code or any of its dependencies, refresh the list of functions by clicking the on the block dialog. To browse the function definitions in your source code, use the icon to access your source files.
Ports
Input
Output
Parameters
Block Characteristics
Extended Capabilities
Version History
Introduced in R2018b
See Also
C Function | MATLAB Function | MATLAB System | S-Function | S-Function Builder
