Active Power Factor Correction

Simulink model used in the "Power Factor Correction Control" MathWorks video
5K Downloads
Updated 9 Jan 2019

View License

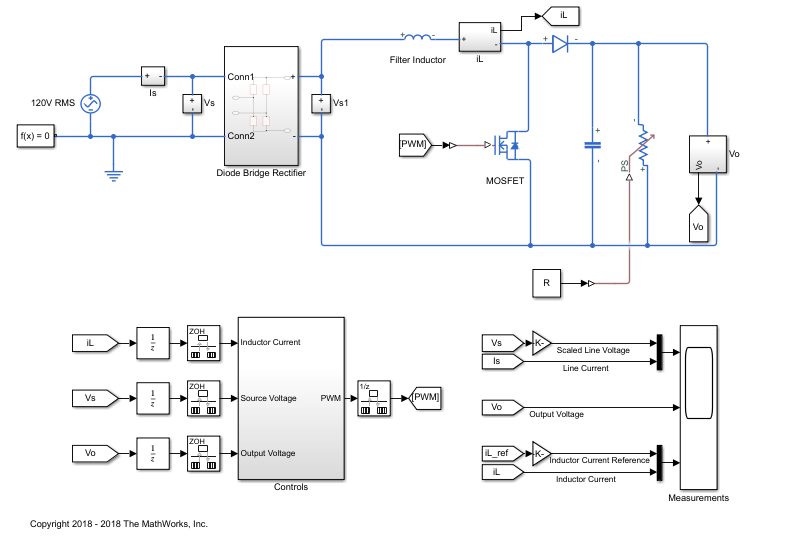

This submission contains a Simulink model and a MATLAB script that was used in the “Power Factor Correction Control” MathWorks video. The model contains a cascaded digital controller for active power factor correction implemented with a boost converter.
Gains of PI controllers in the outer voltage loop and inner current loop were tuned as shown in the video. The MATLAB scripts sets the physical properties of the passive components of the model and the design requirements.

Cite As

Siddharth Jawahar (2024). Active Power Factor Correction (https://www.mathworks.com/matlabcentral/fileexchange/69653-active-power-factor-correction), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2018b
Compatible with any release
