SDM Toolbox

A toolbox for spatial analysis and synthesis of room acoustic impulse responses.

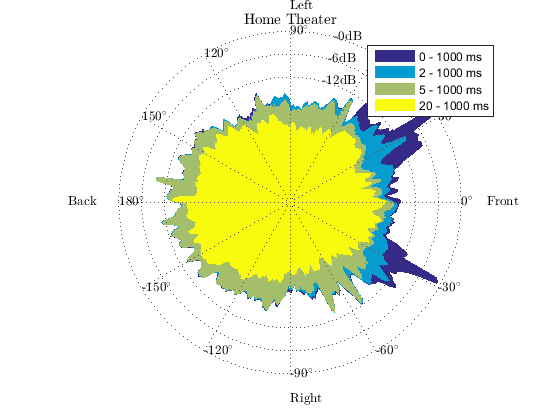

SDMtoolbox is a collection of matlab functions and scripts for spatial room impulse response analysis and synthesis using Spatial Decomposition method [1]. Visualization of the spatial room impulse response is implemented as in [2]. Other examples of the visualization have been shown for example in [3],[4] and [5]. Synthesis of the spatial room impulse response is implemented as described in [4]. Binaural synthesis follows the method in [6].
The toolbox processes spatial room impulse responses, measured with a microphone array. The microphone array has to be specified as micLocs = microphone locations in Cartesian coordinates [numberOfMics 3] and in the order [x,y,z].
The spatial impulse response should be presented in the same order as the microphone locations IR : [N numberOfMics]

For auralization, a loudspeaker array must be defined with lspLocs = loudspeaker in Spherical coordinates [numberOfLoudSpeaker 3]. The order is Azimuth in degrees, Elevation in degrees, and Radius in meters.

There are several standard default loudspeaker setups, e.g., 5.1, in createSynthesisStruct.m, which you can use directly.

Example use cases for analysis, visualization, synthesis, and reproduction with different loudspeaker arrays or binaurally with headphones are found in:

demoCustomSetups.m
demoDefaultSetups.m
demoBinauralRendering.m
To run these examples, type
> demoCustomSetups
> demoDefaultSetups
> demoBinauralRendering
> demoBformat
in your Matlab command prompt.

This version has been tested with Matlab R2015b and R2014b. Some functions used in the demos are not available in older versions. For example, parula.m and websave.m are not included before R2014b.

The demos are using examples files, which you can also directly download by copy-pasting these links to your browser
https://mediatech.aalto.fi/~tervos/IR_living_room.mat
https://mediatech.aalto.fi/~tervos/IR_another_living_room.mat
https://mediatech.aalto.fi/~tervos/IR_home_control_room.mat
https://mediatech.aalto.fi/~tervos/demoJAES/samples/Song1_CR1.mp3
http://legacy.spa.aalto.fi/projects/poririrs/wavs/sndfld.zip
