Lens Distortion Explorer

Explore a standard lens distortion model.
4.2K Downloads
Updated 1 Sep 2016

View License

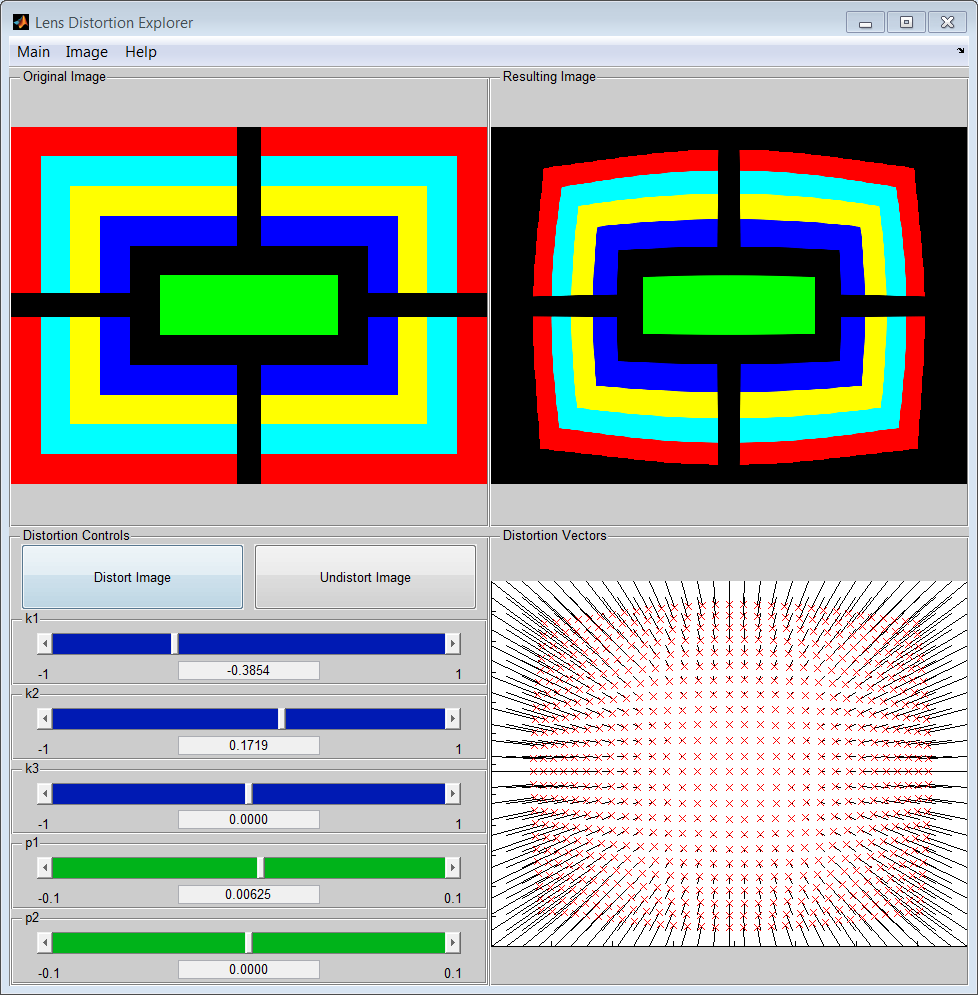

This app allows the user to explore the effects of the different lens distortion parameters (3 radial and 2 tangential) of a common camera lens distortion model.
This is model is used in the MATLAB Computer Vision System Toolbox:
http://www.mathworks.com/help/vision/ug/camera-calibration.html

and OpenCV:

This tool allows the modification of the 5 distortion parameters (k1, k2, k3, p1, p2), the 2 focal lengths (fx, fy), and the camera center (cx, cy). It allows the user to use one of two built-in images or to load a custom image.

Cite As

Michael Quinn (2024). Lens Distortion Explorer (https://www.mathworks.com/matlabcentral/fileexchange/40985-lens-distortion-explorer), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2015b
Compatible with any release
Platform Compatibility
Windows macOS Linux

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
1.2.0.1

Updated license

1.2.0.0

v1.2: Updated app to work with HG2 (introduced in R2014b). Updated references to include new product features.

1.1.0.0

Added proper copyright language in the file.

1.0.0.0
