New in R2020b: new way to return height or width of arrays

Adam Danz on 6 Oct 2020 (Edited on 29 Apr 2021)
Latest activity Reply by Rik on 30 Apr 2021

Prior to r2020b the height (number of rows) and width (number of columns) of an array or table can be determined by the size function,

array = rand(102, 16);
% Method 1
[dimensions] = size(array);
h = dimensions(1);
w = dimensions(2);
% Method 2
[h, w] = size(array); %#ok<*ASGLU>
% or
[h, ~] = size(array);
[~, w] = size(array);
% Method 3
h = size(array,1);
w = size(array,2);

In r2013b, the height(T) and width(T) functions were introduced to return the size of single dimensions for tables and timetables.

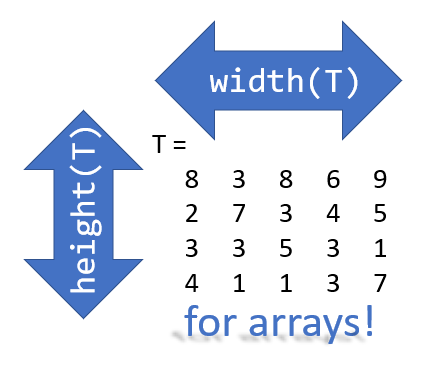

Starting in r2020b, height() and width() can be applied to arrays as an alternative to the size() function.

Continuing from the section above,

h = height(array)
% h =  102
w = width(array)
% w =  16

height() and width() can also be applied to multidimensional arrays including cell and structure arrays

mdarray = rand(4,3,20);
h = height(mdarray)
% h =  4
w = width(mdarray)
% w =  3

The expanded support of the height() and width() functions means,

  1. when reading code, you can no longer assume the variable T in height(T) or width(T) refers to a table or timetable
  2. greater flexibility in expressions such as the these, below
% C is a 1x4 cell array containing 4 matrices with different dimensions
rng('default')
C = {rand(5,2), rand(2,3), rand(3,4), rand(1,1)};
celldisp(C)
% C{1} =
%       0.81472      0.09754
%       0.90579       0.2785
%       0.12699      0.54688
%       0.91338      0.95751
%       0.63236      0.96489
% C{2} =
%       0.15761      0.95717      0.80028
%       0.97059      0.48538      0.14189
% C{3} =
%       0.42176      0.95949      0.84913      0.75774
%       0.91574      0.65574      0.93399      0.74313
%       0.79221     0.035712      0.67874      0.39223
% C{4} =
%       0.65548

What's the max number of rows in C?

maxRows1 = max(cellfun(@height,C))         % using height()
% maxRows1 =  5;
maxRows2 = max(cellfun(@(x)size(x,1),C))   % using size()
% maxRows2 =  5;

What's the total number of columns in C?

totCols1 = sum(cellfun(@width,C))          % using width()
%totCols1 =  10
totCols2 = sum(cellfun(@(x)size(x,2),C))   % using size(x,2)
% totCols2 =  10

Attached is a live script containing the content of this post.


Jan
Jan on 29 Jan 2021 (Edited on 30 Jan 2021)

A faster version of:

totCols2 = sum(cellfun(@(x)size(x,2),C))

is

totCols2 = sum(cellfun('size', C, 2))

Although 'size' appears in the section "Backward Compatibility" in the documentation, this direct commands are much faster than calling function handles: 'isempty', 'islogical', 'isreal', 'length', 'ndims', 'prodofsize', 'size', 'isclass'


1 Reply
Adam Danz
Adam Danz on 29 Jan 2021

Thanks Jan. Since the string syntax fails with some classes, I avoid using it in demos where users could try to use the same syntax with a class that causes problems. But the benefits in speed of the string syntax is definitely worth it when you know you're dealing with a class that is supported by it.

Rik posted a comment recently that summarizes this well.

For example,

>> C = {rand(2,2), string([])}
C =
  1×2 cell array
    {2×2 double}    {0×0 string}
>> totCols2 = sum(cellfun('size', C, 2))
totCols2 =
     3   % incorrect
>> totCols2 = sum(cellfun(@(x)size(x,2),C))
totCols2 =
     2   % correct

Asad (Mehrzad)  Khoddam
Asad (Mehrzad) Khoddam on 7 Oct 2020

Is any equivalent for more than 2D matrices?

Adam Danz
Adam Danz on 7 Oct 2020 (Edited on 7 Oct 2020)

Just the good old size(array, n) where n specifies the dimension.


1 Reply
Asad (Mehrzad)  Khoddam
Asad (Mehrzad) Khoddam on 7 Oct 2020

Yes, I prefer this method

Rik
Rik on 6 Oct 2020

Maybe people will finally stop teaching length. Previously my lecturing included only numel and size as alternative, but now I have two functions to provide as readable alternatives.


3 Replies
Stephen
Stephen on 25 Dec 2020

"Maybe people will finally stop teaching length."

That will be a day to celebrate!

I am yet to find a use-case for length, and much prefer numel and size for their predictability and clarity.


Mario Malic
Mario Malic on 15 Oct 2020

What's the issue with length?

Asking for a friend


3 Replies
Jan
Jan on 30 Apr 2021

I started programming in MATLAB for some analyses in the clinical motion analyses. The trajectories of the measurements have been stored a [nVariables x nTimePoints] matrices. In a subfunction I've determined the number of time points dynamically using LENGTH(), which failed after some years, when I've introduced more variables: Then the number of variables exceeded the width of the array and took some time to find the problem. An equivalent problem occurred at computing the standard deviation between persons: std([nPersons x nVariables x nTimePoints]). A specific group of patients contained one person only and STD() was applied to the 1st non-singelton dimension, which was the 2nd one. The save approach is to specify the dimension to operate on in every case: std(X, 1, 1).

Matlab's "smart" way to guess, which dimension is meant, is a source of bugs. This concerns LENGTH as well as preferring the 1st non-singelton dimension. In short hacks, this saves some seconds for typing, but in productive code for scientific applications it is a good programming practice to specify the dimensions in every case.


1 Reply
Rik
Rik on 30 Apr 2021

I wholeheartedly support your last paragraph. It is similar to my advice for GUI-design: always use specific handles for graphics calls, so the user can click on another figure while your GUI is running, without any major issues.


Rik
Rik on 15 Oct 2020

The issue with length is the unpredictable outcome. You can tell if it will use the height, width, or later dimension. The most common use case will be in a loop:

for n=1:length(A)
    SomeFunction(A(n))
end

In almost every case you want to loop over the rows or the columns or all elements of a matrix. In most cases you know in advance which you need. If you're lucky length will be equivalent to size(A,1) or size(A,2) or numel(A), but if A is not the exact shape you expected, the result will be different.

If you don't tell Matlab what you mean, it will do what ask.


Adam Danz
Adam Danz on 15 Oct 2020 (Edited on 15 Oct 2020)

Good question, Mario.

length() returns the largest array dimension and does not indicate which dimension that is. For vectors, numel() and length() will return the same value but a responsible programmer would have to include additional validation to confirm the input is a vector when using length(). Instead, you can just use size(), numel(), width(), or height() to control which dimension to reference.

For example, if you're setting up a loop to perform an operation on each element of an array and use length() to define the number of iterations, the loop will not be complete if the array has more than 1 dimension.

>> x = rand(2,5);
>> length(x)
ans =
     5
>> numel(x)
ans =
    10

Another example is if you need to know the number of columns of a matrix that's defined by x=rand(2,20), length(x) may seem like a viable choice because it returns 20 but if the variable is transposed, x=x', length(x) would still return 20 even though the number of columns is now 2.

I haven't found an example where length() is the appropriate choice unless you want to return the max dimension size.


1 Reply
Jon
Jon on 3 Dec 2020

I think it is quite common to know that a variable is a vector, but not be sure whether it is n by 1 or 1 by n The good thing about length() when applying it to a vector, x is that length(x) = length(x') so it doesn't matter if the vector is n by 1 or 1 by n. I suppose that numel() is also safe in this case. In mathematics it is common to refer to the "length" of a vector. This makes code with length() a little more readable as it maps one to one with the common mathematical usage.

So I would say it is good to use either length or numel to determine the number of elements in a vector, but I definitely would not use the new height or width on a vector as it could easily by oriented the wrong way.


1 Reply
Adam Danz
Adam Danz on 4 Dec 2020

Thanks, Jon. But I think the risks outweigh the benefits with length(). In cases where the user wants max(size(x)), they should use that instead of length(x) since the prior is readable and the latter is highly misleading. In cases where people want the length of a vector, numel() has exactly the same output but is more versatile when the variable is unexpectedly multidimensional.

True, "length" is more readable to an inexperienced user than "numel" (number of elements) but an inexperienced user is also more likely to apply length() to a variable that may not always be a vector. Perhaps a concession would be to force the variable to be a vector using length(x(:)) but still, the only benefit to length() over numel() is that it may sound better.


1 Reply
Jon
Jon on 4 Dec 2020

Agreed. I guess I'm just trying to rationalize why I'm still sometimes using length in my code instead of numel. Old habits die hard. I guess I should start consistently using numel. Thanks for all of the interesting (I guess I'm way to far into MATLAB if this is interesting) discussion. I've learned a lot from everyone's posts in MATLAB answers.


Adam Danz
Adam Danz on 6 Oct 2020

Great point, Rik. I meant to include that but forgot. Now you saved me from having to edit it.
