From Simulink Image

Unpack numeric matrix from Simulink image

• Library:

• Computer Vision Toolbox / Utilities

•

Description

The From Simulink Image block converts Simulink^® image data to matrix data.

Ports

Input

Port_1 — Input signal

Simulink.ImageType

Input signal to the From Simulink Image block. The input is a Simulink image data type.

Data Types: Simulink.ImageType

Output

Port_1 — Output signal

matrix

Output signal from the From Simulink Image block. The output is a matrix or an array, depending on the format of the input.

• M-by-N matrix — The input is a Grayscale image. M and N are the height and width of the image, in pixels.

• M-by-N-by-C matrix — The input is an RGB or BGR image. M and N are the height and width of the image, in pixels. C is the number of color channels.

Data Types: integer | single | double | Boolean

Parameters

Output dimensions — Dimensions of block output signal

[480 640 3] (default)

Specify the dimensions of the output image signal. The expression must be a three-element numeric row vector of form: [Rows Columns Channels].

Programmatic Use

Block Parameter: ImageSize

Type: character vector

Value: character vector

Default: [480 640 3]

Model Examples

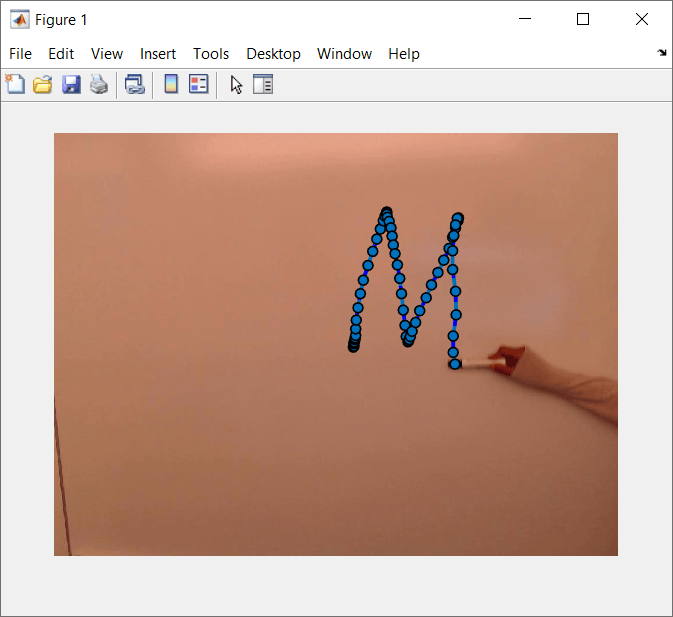

Track Marker Using Simulink Images

Track a marker on a whiteboard by using images of the Simulink.ImageType data type.

Open Script

Block Characteristics

Data Types	double | single | integer | Boolean | image
Direct Feedthrough	yes
Multidimensional Signals	yes
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Supports C++ code generation.

Version History

Introduced in R2022a
