This example shows how to acquire lidar data from a Velodyne LiDAR sensor device. A lidar sensor creates a 3D map of the surrounding environment by using scanning laser beams and time of flight distance measurements. Lidar systems are used in a variety of application areas, such as a 3D mapping, surveying, industrial automation, and autonomous vehicle navigation.
A Velodyne Puck (VLP-16) sensor is used in this example. This model has 16 scanning laser beams (channels), up to 360 degrees horizontal field of view (FOV), 30 degrees vertical FOV, and 100 meter range. The
velodyneLidar interface in MATLAB supports a variety of Velodyne LiDAR models. Choose a sensor model appropriate for your particular application by consulting the instrument specifications provided by the manufacturer.
This example requires:
MATLAB R2019a or later.
Lidar Toolbox Support Package for Velodyne LiDAR Sensors.
A supported Velodyne LiDAR sensor. A Velodyne Puck (VLP-16) is used in this example.
The Velodyne Puck (VLP-16) sensor is an Ethernet network connected device that provides an integrated web server for configuring operating parameters, such as FOV or rotation rate. Consult the VLP-16 User Manual for required network setup and sensor parameter configuration. In this example, the VLP-16 sensor is directly connected to a computer with a dedicated Ethernet adapter, and the sensor's default IP address value is used (192.168.0.201).
To configure the sensor's parameters, access the sensor's web interface by opening the sensor's web server URL (http://192.168.0.201/) in a web browser. To test the sensor network setup, configuration, and operation, use VeloView, an application provided by the manufacturer.
velodynelidar object to receive data from the VLP-16 device. MATLAB uses the default UDP port value of 2368 to receive data from the device. If your device is configured to broadcast data to a different port, you need to specify the port number as an additional name-value pair argument, for example,
lidar = velodynelidar('VLP16');
View live scan data acquired from the lidar sensor using the
preview(lidar) pause(10) closePreview(lidar)
The lidar sensor continuously streams 3D maps of the surroundings as frames of data. Each data frame represents one full scan of the FOV. The
velodynelidar interface provides a continuous buffered acquisition functionality, which can be initiated using the
start function. The processed lidar data frames are stored in an input buffer.
% Start acquisition start(lidar)
Read one data frame from the lidar sensor. Each data frame is represented in MATLAB as a
pointCloud datatype. The data values represent a distance measurement and the default units are meters (m).
read function to read data frames into MATLAB workspace. You can use the optional second argument to read the frame timestamp. The timestamp is returned as a
[frame,timestamp] = read(lidar,1)
frame = pointCloud with properties: Location: [32×1846×3 double] Color:  Normal:  Intensity: [32×1846 double] Count: 59072 XLimits: [-90.9482 83.9612] YLimits: [-103.9809 102.8859] ZLimits: [-3.2730 15.8287]
timestamp = datetime 24-Apr-2019 12:20:15:622
Display the data frame (point cloud) using
pcplayer and use the data limits as the view XYZ limits.

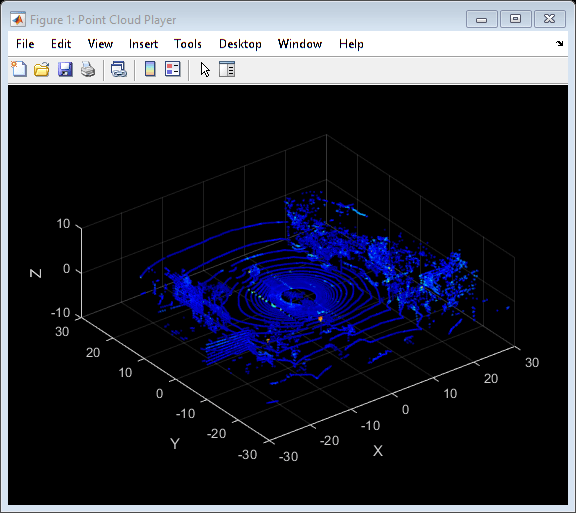

lidarViewer = pcplayer(frame.XLimits,frame.YLimits,frame.ZLimits); view(lidarViewer, frame)
Configure the viewing region of interest by setting the
pcplayer axes limits.
lidarViewer.Axes.XLim = [-30 30]; lidarViewer.Axes.YLim = [-30 30]; lidarViewer.Axes.ZLim = [-10 10];
Read a sequence of 100 frames. The acquired frames data are represented as a
pointCloud array, and the acquired timestamps as a
numFrames = 100; [frames,timestamps] = read(lidar,numFrames);
Stop acquisition and disconnect from the lidar sensor.
stop(lidar) clear lidar
Save the acquired data frames and timestamps to a MAT-file.
save lidardata.mat frames timestamps
You can use the timestamps data to determine the number of acquired lidar data frames per second (frame rate). The lidar sensor's frame rate depends on the configured motor RPM, FOV, and other sensor parameters.
fps = 1/mean(seconds(diff(timestamps)))
fps = 11.6484
Use the existing
pcplayer object (
lidarViewer) to replay acquired frames as an animation. This uses a custom helper function (
replay), which is included at the end of this example.
The following toolboxes provide specialized algorithms and tools for processing and analysis of lidar and 3D point cloud data:
Computer Vision Toolbox
Automated Driving Toolbox
function replay(lidarViewer,frames,fps) %REPLAY Replays point cloud array data in a PCPLAYER figure % LIDARVIEWER is an existing PCPLAYER object % FRAMES is a pointCloud array % FPS is the approximate playback frame rate % % Example usage: % lidar = velodynelidar('VLP16'); % start(lidar) % [frames,timestamps] = read(lidar,100); % stop(lidar) % clear lidar % fps = 1/mean(seconds(diff(timestamps))); % lidarViewer = pcplayer([-40 40], [-40 40],[-10 10]); % replay(lidarViewer,frames,fps); dt = 1/fps; for ii = 1:numel(frames) view(lidarViewer,frames(ii)) pause(dt) end end
