Three-Phase Three-Level PWM Generator

This example shows how to use the PWM Generator (Three-phase, Three-level) to control a Three-Level Converter. The upper and lower supply voltages are input to a Neutral point controller, which balances the DC-link capacitor voltages. Reference AC waveforms are used as inputs to the PWM Generator. There is one time scope for the controller waveforms.

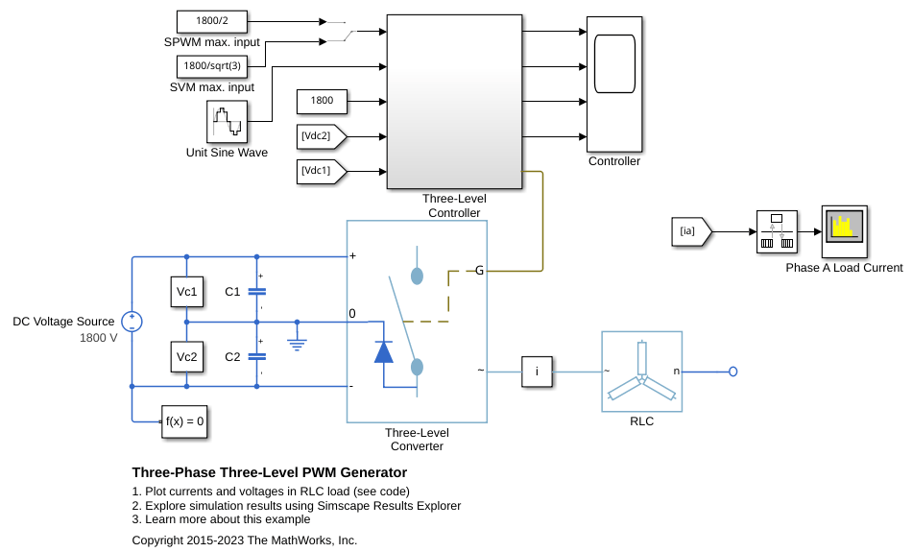

Model

Simulation Results from Simscape Logging

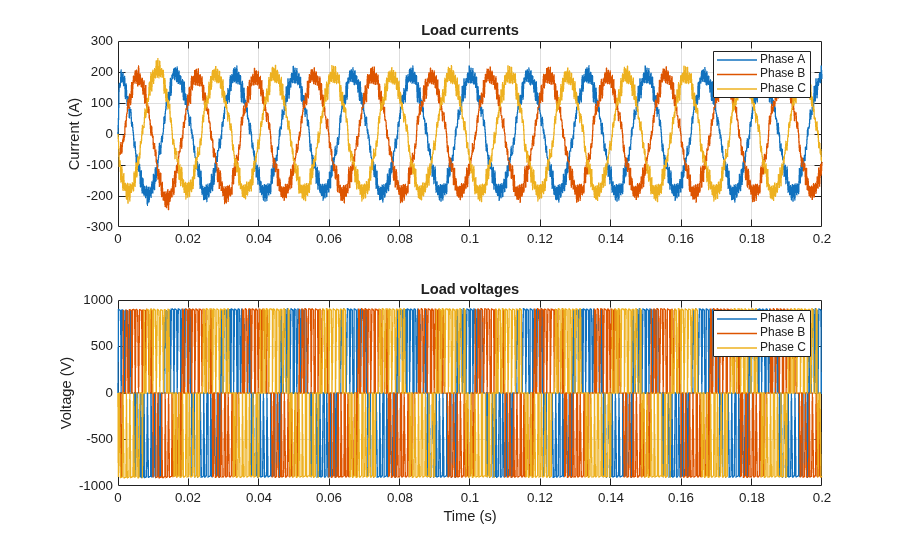

The plot below shows the load voltages and currents over time.

Simulation Results from Scopes

The spectrum plotted in the Spectrum Analyzer displays frequency data for the Phase A Load Current.
