Create simulation testing scenarios, function calls, and assessments

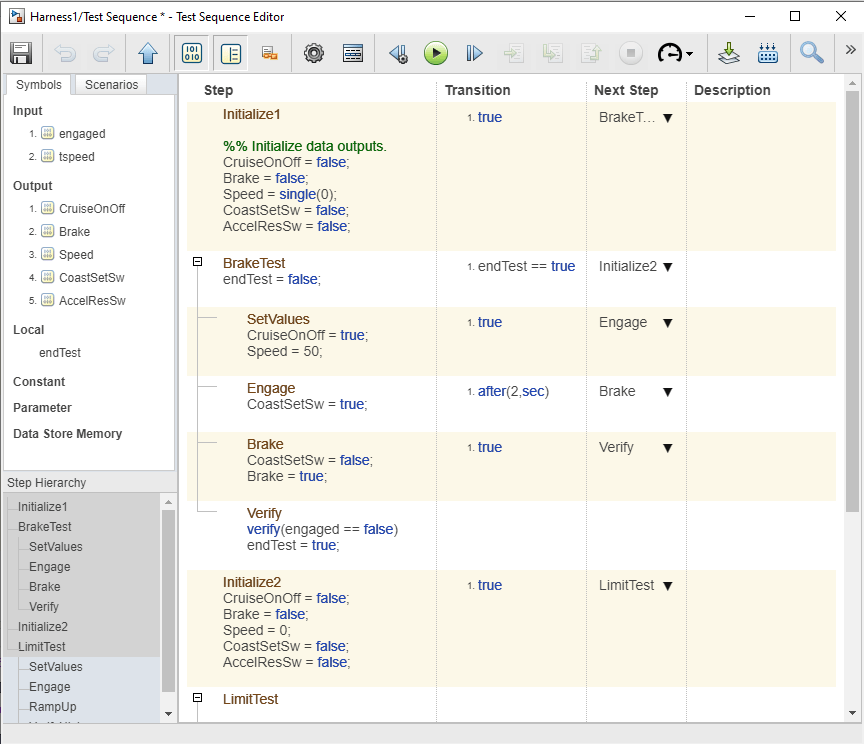

Define a test sequence using a tabular series of steps. Like the Test Assessment block, the Test Sequence block uses MATLAB® as the action language.
For inactive Test Sequence Scenarios that contain
verifystatements, the Test Manager and the Simulation Data Inspector show the results as untested.
Step names must be less than 64 characters. This limitation also applies to enumeration names for monitoring the active step.
You cannot use the Simulink® Finder to replace code in Test Sequence blocks. However, you can click Search or use Ctrl+F in the Test Sequence Editor to find and replace code.
Ports correspond to inputs and outputs defined in the Test Sequence Editor Symbols pane.
For a description of block parameters, see Subsystem.
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Introduced in R2015a
