Simulate Multiple Referenced Model Instances in Normal Mode

Multiple Model blocks can reference the same model. Each Model block that references the same model creates an instance of the referenced model in the model hierarchy.

A referenced model instance simulates in normal mode when both of these conditions apply:

  • The corresponding Model block has its Simulation Mode block parameter set to Normal.

  • The top model and any intermediate Model blocks are configured to simulate in normal mode.

For additional requirements, see Model Reference Requirements and Limitations.

When you simulate multiple referenced model instances in normal mode, only one instance has normal mode visibility.

Normal Mode Visibility

All instances of a referenced model that simulate in normal mode are part of the simulation. However, only one normal-mode instance of the referenced model supports all data visualizations. For example, scopes and port value labels display data for only the instance that has normal mode visibility enabled. To view simulation results for all instances of the referenced model, use the Simulation Data Inspector. To view instance-specific data for each instance of the model that simulates in normal mode, use Display blocks in the referenced model.

To set normal mode visibility, in the Simulink® Toolstrip, on the Simulation tab, click the down arrow on the far right of the Prepare section. In the gallery, under Signal Monitoring, click Normal Mode Visibility. This setting determines the instance that has normal mode visibility enabled. If you do not specify normal mode visibility for an instance of a referenced model, the software selects which instance of the referenced model has normal mode visibility enabled.

Examine Multiple Referenced Model Instances

Open the example model named sldemo_mdlref_basic.

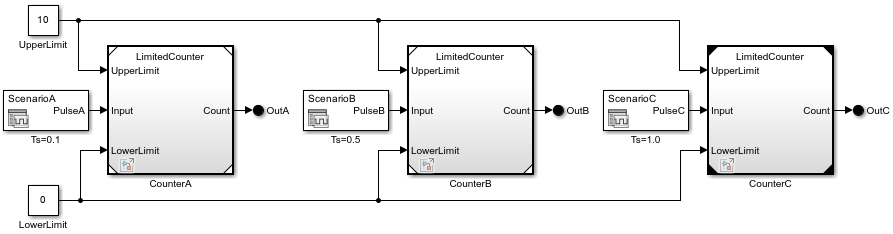

The model has Model blocks named CounterA, CounterB, and CounterC that each reference the model named sldemo_mdlref_counter.

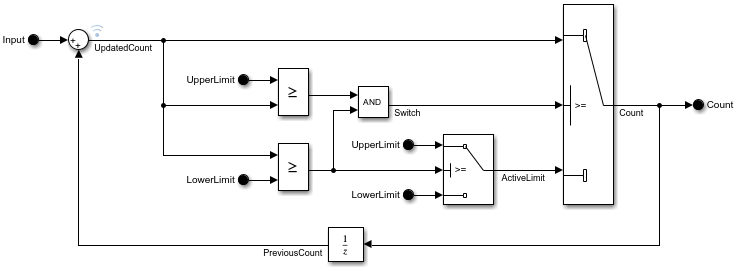

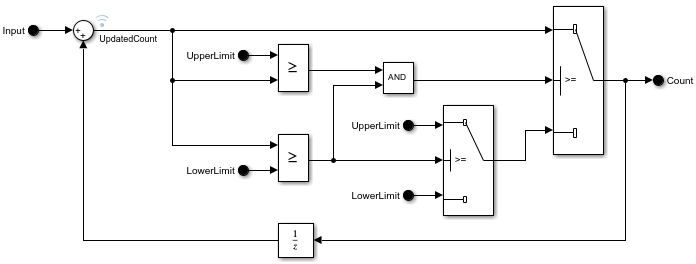

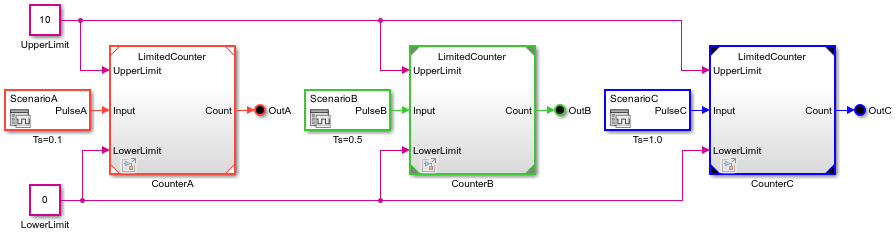

When you update the top model, each Model block icon has different colors at the corners.

  • The Model block named CounterA has white corners.

  • The Model block named CounterB has gray corners.

  • The Model block named CounterC has black corners.

The different corner colors indicate the simulation mode and normal mode visibility setting.

  • White corners — Normal mode with normal mode visibility enabled

  • Gray corners — Normal mode with normal mode visibility disabled

  • Black corners — Accelerator mode

Simulate the model hierarchy.

Double-click the Model block named CounterA or CounterB.

Open the Scope block named ScopeA.

Regardless of which Model block you open, the scope displays the data for CounterA, because CounterA has normal mode visibility enabled.

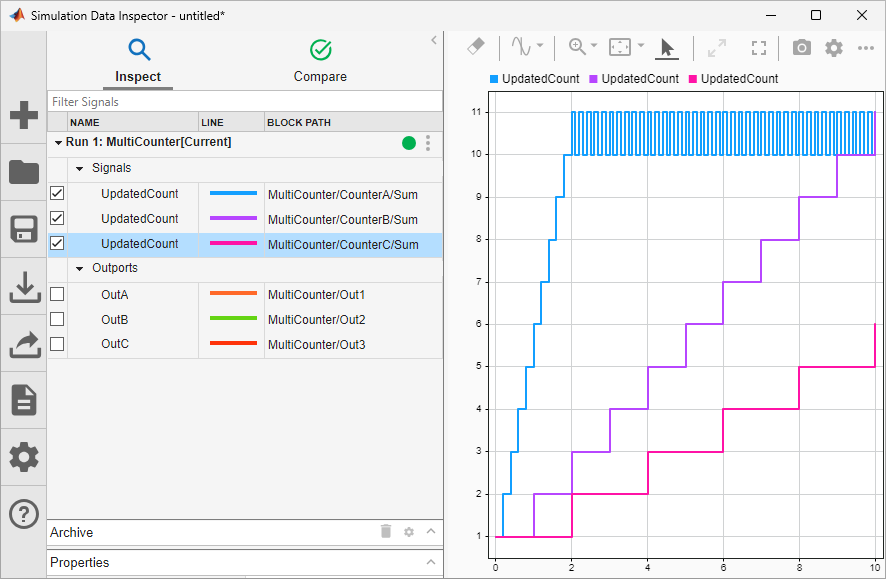

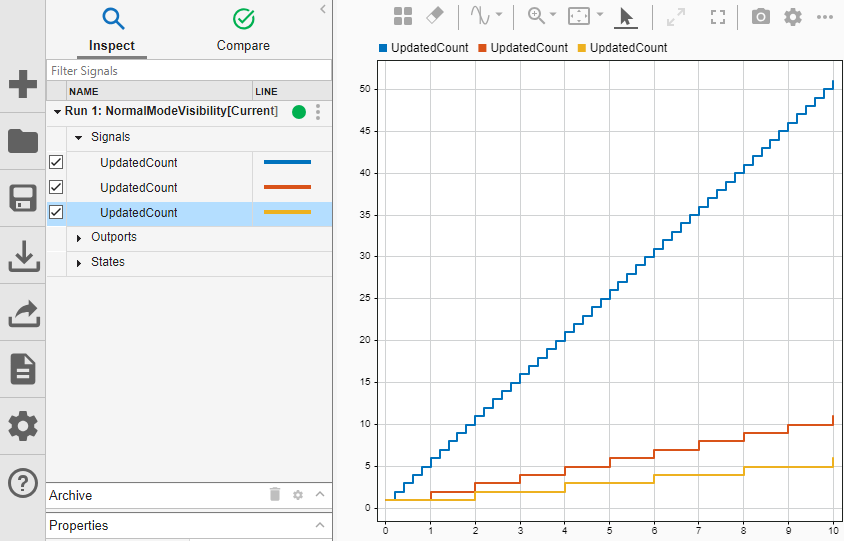

To view the data for the other instances of the referenced model, mark the signal for logging before simulation. Then, use the Simulation Data Inspector.

Determine Which Instance Has Normal Mode Visibility Enabled

After you compile a model, you can determine whether an instance has normal mode visibility enabled by inspecting the corners of the Model block icon. When the corners are white, the instance has normal mode visibility enabled. For a large model hierarchy, finding this instance based on the Model block icons can be time consuming. Instead, use these programmatic parameters:

  • ModelReferenceNormalModeVisibilityBlockPath — For a referenced model, find the Model block that has normal mode visibility enabled.

  • CompiledModelBlockNormalModeVisibility — For all referenced models in a model hierarchy, find the Model blocks that have normal mode visibility enabled.

For example, open the project named ModelReferenceHierarchy.

openProject("ModelReferenceHierarchy");

The project opens a model hierarchy with sldemo_mdlref_depgraph as the top model.

Suppose you want to find the Model block that references the sldemo_mdlref_F2C model and has normal mode visibility enabled.

Update the top model.

set_param("sldemo_mdlref_depgraph",SimulationCommand="Update");

Get the Model block path.

get_param('sldemo_mdlref_F2C',...
'ModelReferenceNormalModeVisibilityBlockPath')
ans =
  Simulink.BlockPath
  Package: Simulink

  Block Path:
    'sldemo_mdlref_depgraph/thermostat'
      'sldemo_mdlref_heater/Fahrenheit to Celsius'

  Use the getBlock method to access block path character vectors from this object.

Suppose you want to find all the Model blocks in a model hierarchy that have normal mode visibility enabled.

Execute the compilation phase of simulation by using the sldemo_mdlref_depgraph model name as a programmatic interface.

sldemo_mdlref_depgraph([],[],[],'compile');
### Searching for referenced models in model 'sldemo_mdlref_depgraph'.
### Found 5 model reference targets to update.
### Starting serial model reference simulation build.
### Model reference simulation target for sldemo_mdlref_heat2cost is up to date.
### Model reference simulation target for sldemo_mdlref_thermostat is up to date.
### Model reference simulation target for sldemo_mdlref_house is up to date.
### Model reference simulation target for sldemo_mdlref_F2C is up to date.
### Model reference simulation target for sldemo_mdlref_outdoor_temp is up to date.

Build Summary

0 of 5 models built (5 models already up to date)
Build duration: 0h 0m 1.0357s

Get the Model block paths.

blocks = get_param('sldemo_mdlref_depgraph',...
'CompiledModelBlockNormalModeVisibility')
blocks = struct with fields:
       sldemo_mdlref_F2C: [1x1 Simulink.BlockPath]
    sldemo_mdlref_heater: [1x1 Simulink.BlockPath]

Inspect the Model block paths.

blocks.sldemo_mdlref_F2C
ans =
  Simulink.BlockPath
  Package: Simulink

  Block Path:
    'sldemo_mdlref_depgraph/thermostat'
      'sldemo_mdlref_heater/Fahrenheit to Celsius'

  Use the getBlock method to access block path character vectors from this object.
blocks.sldemo_mdlref_heater
ans =
  Simulink.BlockPath
  Package: Simulink

  Block Path:
    'sldemo_mdlref_depgraph/thermostat'

  Use the getBlock method to access block path character vectors from this object.

Terminate the compilation phase.

sldemo_mdlref_depgraph([],[],[],'term');

Specify Which Instance Has Normal Mode Visibility Enabled

While you edit a model hierarchy, you can specify which instance of a referenced model has normal mode visibility enabled.

  1. In the Simulink Toolstrip, on the Simulation tab, click the down arrow on the far right of the Prepare section. Then, under Signal Monitoring, click Normal Mode Visibility.

    The Model Block Normal Mode Visibility dialog box opens. For example, this dialog box for the sldemo_mdlref_basic model has the hierarchy pane expanded.

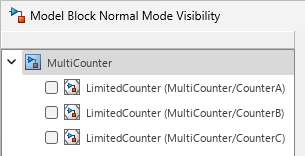

    Model Block Normal Mode Visibility dialog box with no model instance selected

    The dialog box does not display Model blocks that reference protected models, and each displayed branch of the model hierarchy stops at the first Model block that is not in normal mode. The normal mode instances of referenced models have check boxes.

    Tip

    To update the model hierarchy in the dialog box to reflect the current model hierarchy, click Refresh.

  2. Select the instance of the model that you want to have normal mode visibility.

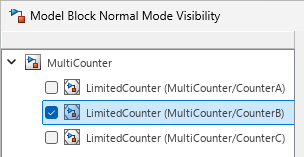

    Model Block Normal Mode Visibility dialog box with a model instance selected

    When you select an instance, you also select its parents. When you clear an instance, you also clear its children.

    Tip

    To open a model from the dialog box, right-click the model name. Then, click Open.

  3. To apply the normal mode visibility setting, simulate the model hierarchy.

Alternatively, change the instance that has normal mode visibility enabled with the ModelBlockNormalModeVisibility parameter. Set this parameter to one of these values:

  • An array of Simulink.BlockPath objects.

    bp1 = Simulink.BlockPath({'TopModel/Model',...
        'ReferencedModelA/Model'});
    bp2 = Simulink.BlockPath({'TopModel/Model1',...
        'ReferencedModelB/Model'});
    bps = [bp1, bp2];
    set_param('TopModel','ModelBlockNormalModeVisibility',bps);


    Note

    When you create a Simulink.BlockPath object for specifying normal mode visibility:

    • The first character vector must represent a block that is in the top model of the model reference hierarchy.

    • Character vectors must represent Model blocks that are in normal mode.

    • Character vectors that represent variant models or variant subsystems must refer to an active variant.

  • A cell array of cell arrays of character vectors, with the character vectors being paths to individual blocks and models.

    bp1 = {'TopModel/Model','ReferencedModelA/Model'};
    bp2 = {'TopModel/Model1','ReferencedModelB/Model'};
    bps = {bp1, bp2};
    set_param('TopModel','ModelBlockNormalModeVisibility',bps);

  • An empty array, to use the default selection of the instance that has normal mode visibility.

    set_param('TopModel','ModelBlockNormalModeVisibility',[]);

    Using an empty array is equivalent to clearing all the check boxes in the Model Block Normal Mode Visibility dialog box.
