12x8 Matrix
R2026bGraphically create a 12x8 binary matrix to define LED patterns for display
Since R2026a
Libraries:
Simulink Support Package for Arduino Hardware /
Common
Description

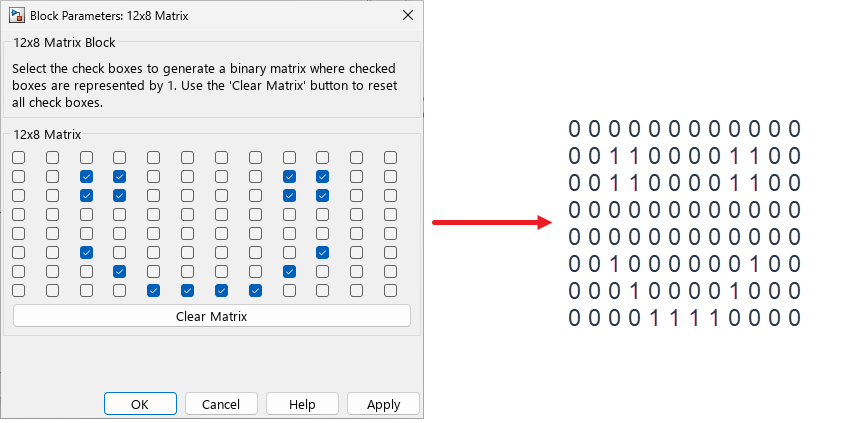

Use the 12x8 Matrix block to provide a graphical interface for specifying LED patterns for Arduino® boards. Double-click the block to use the grid of check boxes arranged in 12 columns and 8 rows, where each check box corresponds to an individual LED on the Arduino board. Select check box to set the corresponding matrix element to 1 (LED ON) and clear the check box to set the element to 0 (LED OFF).

Ports
Output
Parameters
Programmatic Use: Add Block
To add the block programmatically, use the add_block function with one of these library block paths as the source.
"arduinolib/12x8 Matrix"
Example: add_block("arduinolib/12x8 Matrix","myModel/myBlock",MakeNameUnique="on")
Version History
Introduced in R2026a
