Component-Based Modeling with Model Reference

This example walks you through simulation and code generation of a model that references another model multiple times. In this example, Simulink® generates code for accelerated simulation, and Simulink® Coder™ generates code that can be deployed in standalone applications.

Model Reference Behavior

Model Reference has several advantages over subsystems:

  • You can develop the referenced model independently from the models in which it is used.

  • You can reference a model multiple times in another model without having to make redundant copies.

  • Multiple models can reference a single model.

  • The referenced model is not loaded until it is needed. This incremental loading speeds up model load times.

  • If a model is referenced in accelerator mode, Simulink creates special binaries to be used in simulations. If the referenced model has not changed since the binaries were created, and the binaries are therefore up to date, no code generation occurs when models that use these binaries are simulated or compiled. This process is called incremental code generation. The use of binaries makes updating and simulating the model faster and increases modularity in code generation.

  • Generating code for a model with Model blocks also takes advantage of incremental code generation.

Incremental Loading

Open the example model.

open_system('sldemo_mdlref_basic')

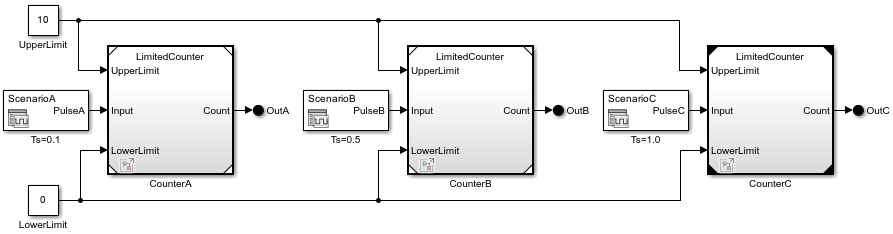

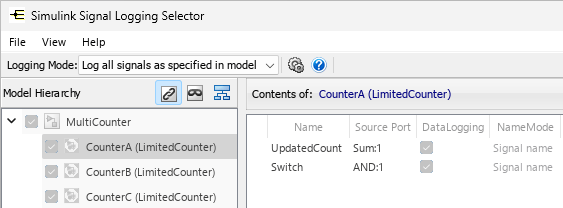

This model contains three Model blocks: CounterA, CounterB and CounterC. These blocks reference the same model, sldemo_mdlref_counter, which is a separate model and not a subsystem of sldemo_mdlref_basic.

To determine what models are loaded in memory after opening the top model in the model hierarchy, enter this command:

get_param(Simulink.allBlockDiagrams,'Name')
ans =

    'sldemo_mdlref_basic'

The referenced model is not listed because it is not loaded.

Open the referenced model by double-clicking on any Model block or by entering this command:

open_system('sldemo_mdlref_counter')

Query the models loaded in memory again.

get_param(Simulink.allBlockDiagrams,'Name')
ans =

  2x1 cell array

    {'sldemo_mdlref_counter'}
    {'sldemo_mdlref_basic'  }

The referenced model is now listed, demonstrating that models are loaded incrementally as they are needed.

Inherited Sample Times

Navigate back to the parent model sldemo_mdlref_basic.

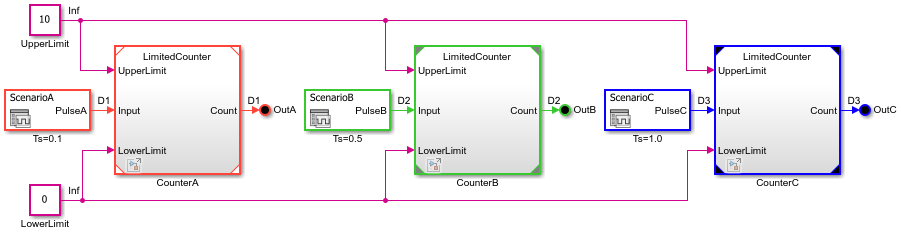

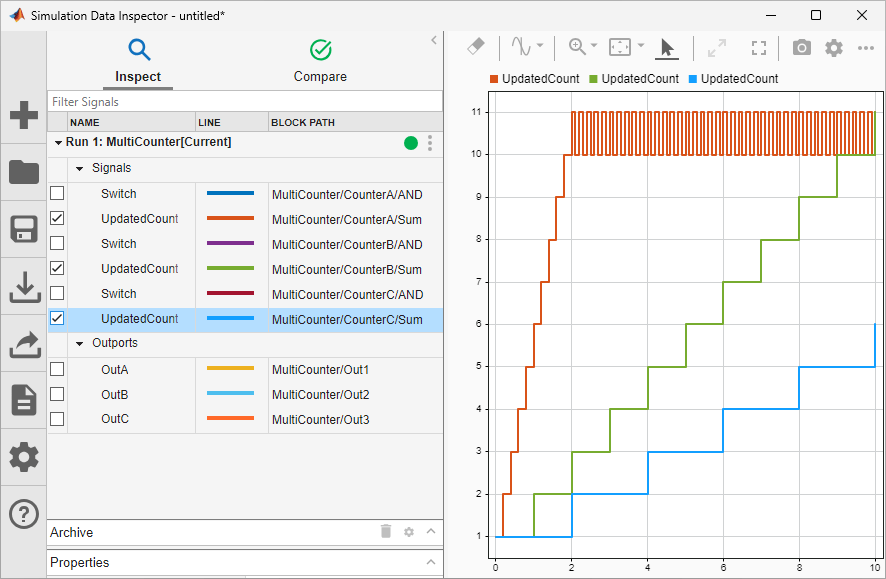

sldemo_mdlref_basic is configured to display sample time colors when it is compiled. On the Debug tab, click Update Model.

The Model blocks inherit different sample times because the referenced model sldemo_mdlref_counter does not explicitly specify a sample time.

Simulation Through Code Generation (Does Not Require Simulink Coder)

Model blocks have a Simulation mode parameter that controls how the referenced model is simulated. If the parameter is set to Normal, the referenced model is simulated in interpreted mode. If the parameter is set to Accelerator, the referenced model is simulated through code generation. This process uses a binary file called a simulation target for each unique model referenced in accelerator mode. Generating a simulation target does not require a Simulink Coder license.

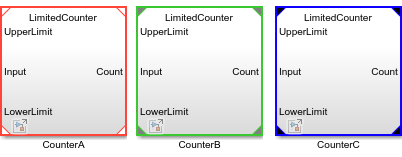

In this model, CounterA and CounterB reference sldemo_mdlref_counter in normal mode, which is indicated by the hollow corners on the Model block icons. The other instance, CounterC, references sldemo_mdlref_counter in accelerator mode, which is indicated by the filled corners on the Model block icon.

You can create the simulation target for the sldemo_mdlref_counter model by performing any of these actions:

  • Updating sldemo_mdlref_basic

  • Simulating sldemo_mdlref_basic

To build the simulation target programmatically, use this command:

slbuild('sldemo_mdlref_counter','ModelReferenceSimTarget')

Once the simulation target is built, subsequently simulating or updating sldemo_mdlref_basic does not trigger a rebuild of the simulation target unless sldemo_mdlref_counter has changed.

If all three instances of the referenced model were set to simulate in normal mode, the simulation target would not be built.

Code Generation for Standalone Applications (Requires Simulink Coder)

When creating a standalone executable for sldemo_mdlref_basic, the build first generates the code and binaries for the model reference coder target of sldemo_mdlref_counter. Generating a model reference coder target requires a Simulink Coder license.

You can build the model reference coder target for sldemo_mdlref_counter and the standalone executable for sldemo_mdlref_basic by performing any of these actions:

  • Building the standalone executable for sldemo_mdlref_basic.

  • Building the model reference coder target of sldemo_mdlref_counter, then building the standalone executable for sldemo_mdlref_basic.

To build the standalone executable programmatically, use this command:

slbuild('sldemo_mdlref_basic','StandaloneCoderTarget')

Once the model reference coder target is built, subsequently building sldemo_mdlref_basic does not trigger a rebuild of the model reference coder target unless sldemo_mdlref_counter has changed. The code generated for the referenced model sldemo_mdlref_counter is reused.

The code generation report for sldemo_mdlref_basic links to the report for sldemo_mdlref_counter in the Referenced Models section.
