FMU Importing
The FMU block lets you import your applications, contained in FMUs, into Simulink. This block has two modes to integrate FMUs that implement:
An FMI co-simulation interface. These FMUs contain local solvers.
An FMI model exchange interface. These FMUs do not contain local solvers.
For exporting your existing Simulink models as an FMU, see Create Standalone FMU (Simulink Compiler).
Blocks
| FMU | Include Functional Mockup Unit (FMU) in model |
Functions
fmudialog.compileFMUSources | Generate binary for FMU with source code on current platform (Since R2024a) |
fmudialog.createBusType | Create all FMU bus objects required for structured input or output ports in workspace |
fmudialog.createEnumType | Generate all enumeration classes required for FMU input or output ports |
fmudialog.createTypeObject | Generates enumeration and bus objects required for FMU input or output ports |
Topics
- Import FMUs
Import your FMU to Simulink.
- Implement an FMU Block
Implement a block in Simulink using your FMU.
- FMU Block Calling Sequences
Review calling sequences for Co-Simulation and Model Exchange FMU blocks.
- Debug FMU with Source Code Using External Debugger
Launch external debugger from Simulink to debug FMU with source code.
- Simulate FMU with Linux Binary on Windows (Simulink Compiler)
Simulate standalone cosimulation FMU 2.0 with Linux® binary on Windows®.
Featured Examples
Import Co-Simulation FMU into Simulink
Use the FMU Import block to load an FMU file. The FMU file supports execution in co-simulation mode. Simulink® software supports stepping back and forth, tuning parameters in between, and saving states for the FMU Import block as long as the FMU itself supports these features.
Importing a Model Exchange FMU into Simulink
Model showing how to use the FMU Import block to load an FMU file. The FMU file supports execution in Model Exchange mode.
Import and Simulate FMU with Time-Based Clocks in Simulink
Demonstrates the use of a Functional Mockup Unit (FMU) containing time-based clocks in Simulink®. You can import standalone co-simulation FMUs that implement the following types of time-based clocks as defined in the FMI 3.0 standard:

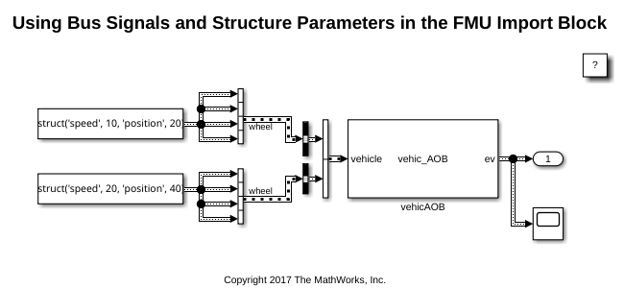

Simplify Interface for Structured Data with FMU Import Block
Use bus signals and structure parameters in an FMU block.

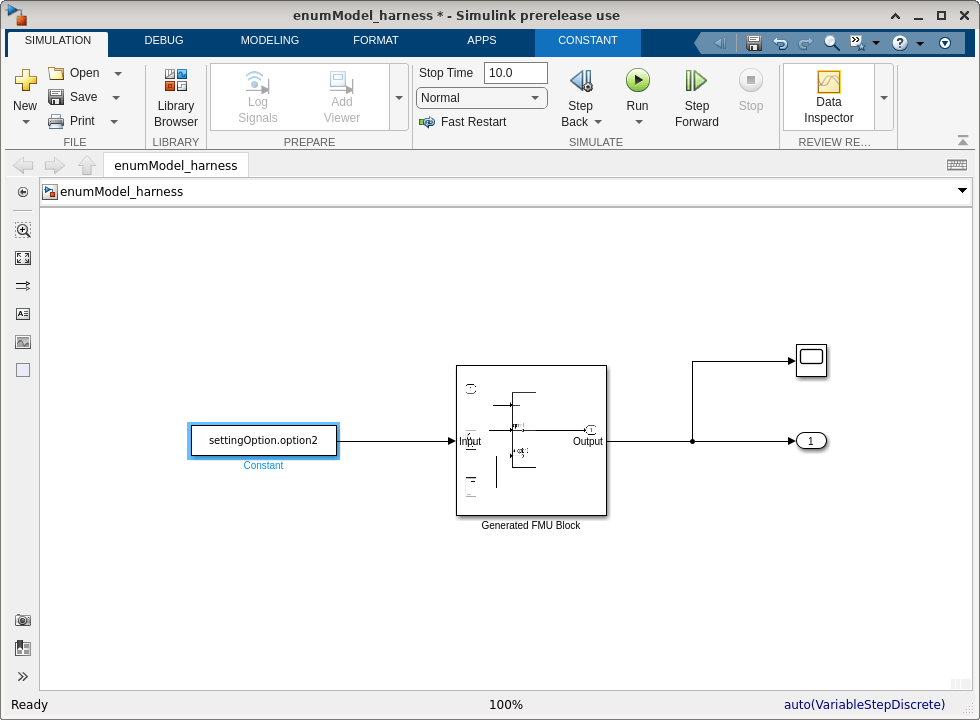

Simulate FMU with Enum Type Ports Using FMU Import Block
The example demonstrates how to use the FMU import block to simulate FMUs that have enumerated data type ports. The FMU import block enables the import of functional mockup units (FMUs) in Simulink®.
Capture Simulation State, Fast Restart, and Step Through Model Containing FMU
Use the internal states of a standalone cosimulation FMU to enhance the simulation capability of a model with fixed-step solver FMU in Simulink®. Internal states of an FMU enables you to stop and resume simulation using model operating points, perform iterative simulation using fast restart, and analyze your model using backward simulation stepping.
Integrate FMI APIs in Generated Code Using FMU Source Code or Binary
Generate code for FMU from source code or binary
